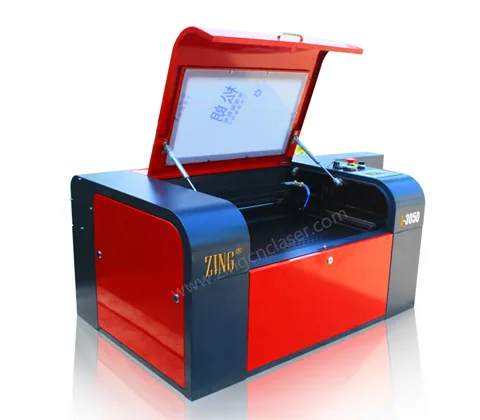

Mini Laser Machine
PL-3050 compact CO2 laser cutter with a 300 x 500 mm bed and 60W-180W laser power, for small workshops cutting and engraving wood, acrylic and leather.
Overview
The PL-3050 is a compact CO2 laser cutter with a 300 x 500 mm bed, intended for small workshops, schools and studios that need laser cutting without the floor space of a full-size machine. Laser power runs from 60 W to 180 W.
It cuts and engraves wood, acrylic, leather, fabric and rubber, and the hermetic detached CO2 tube is straightforward to replace when it reaches end of life. Engraving speed reaches 75,000 mm/min and cutting 40,000 mm/min on the same bed.
Technical Specifications
| Machine configuration | |
| Model | PL-3050 |
|---|---|
| Working area | 300 × 500 mm |
| Laser source and optics | |
| Laser power | 60 W / 80 W / 100 W / 120 W / 150 W / 180 W |
| Laser source type | Hermetic and detached CO₂ laser tube |

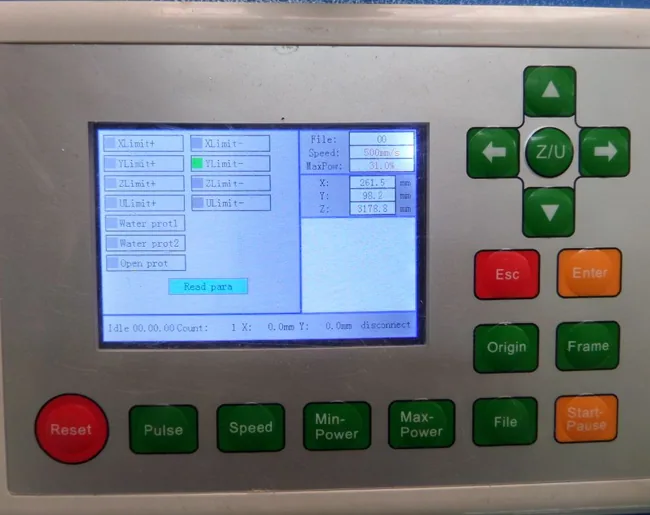

| Laser power control | 1–100 % control panel and software setting |
| Cutting and engraving performance | |
| Engraving speed | 0–75,000 |
| Cutting speed | 0–40,000 |
| Minimum character size | English 1 × 1 mm |
| Positioning accuracy | ≤0.01 mm |
| Repeatability | 0.01 mm |
| Max scanning resolution | 50–1000 DPI |
| Motion and drive | |

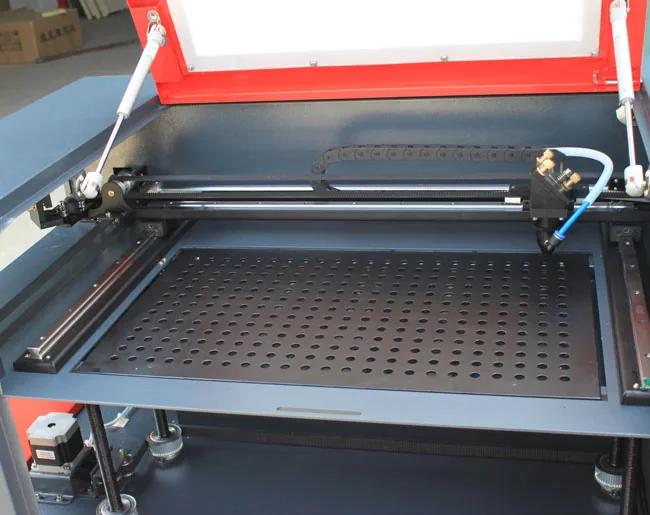

| Drive system | Stepper |
| Control and software | |
| Bundled software | RDworks V8 Or Lasercut 5.3 |
| Compatible CAD/CAM software | CorelDraw, AutoCAD, Photoshop |
| Interface languages | English, Spanish, Portuguese, French, Turkish, German, Korean, Russian etc, convenience of operation control. |
| Control system compatibility | Windows 98/ME / 2000/XP/Vista / 2007 |
| Supported file formats | BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc |
| Power, cooling and environment | |

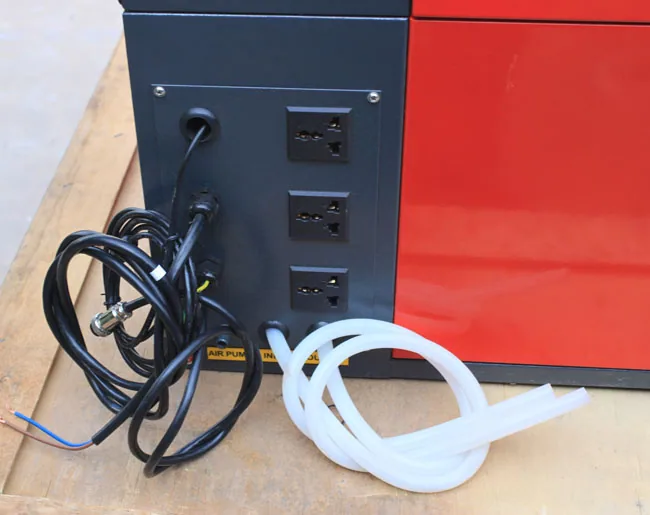

| Power supply | AC 220 V (or 110 V) / 50–60 Hz |
| Ambient temperature | 0–45 °C |
| Ambient humidity | 5–95 % |

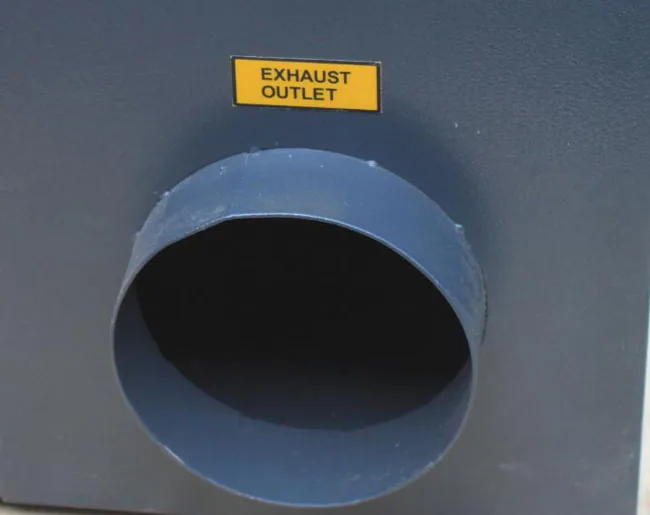

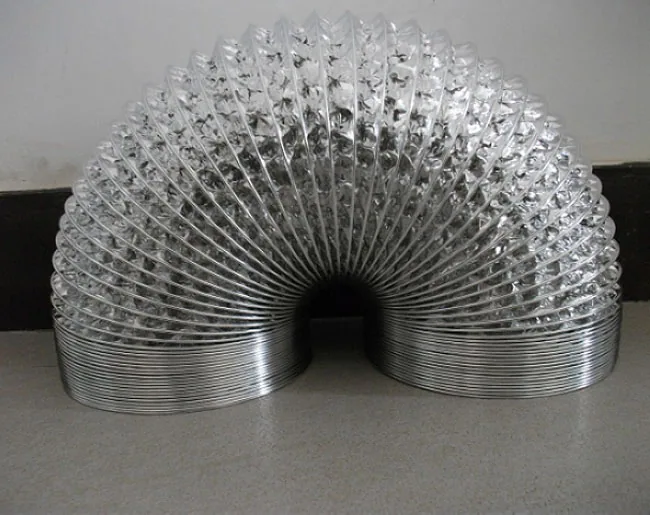

| Extraction and auxiliary | Exhaust fan and Exhaust pipe |
| Cooling | Water-cooling and protection system |
| Accessories and options | |

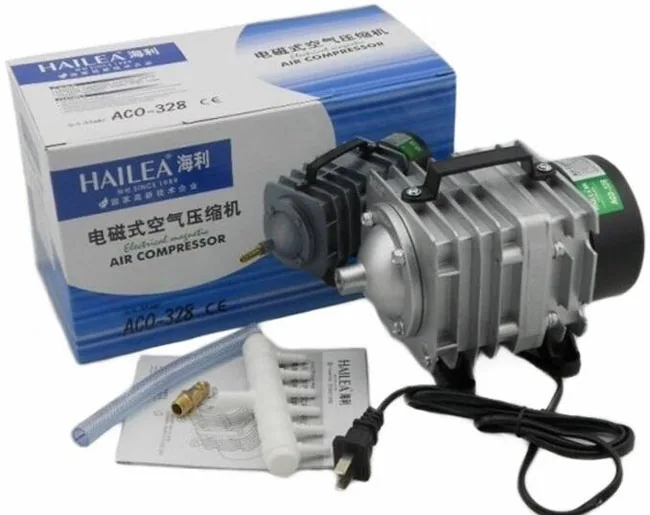

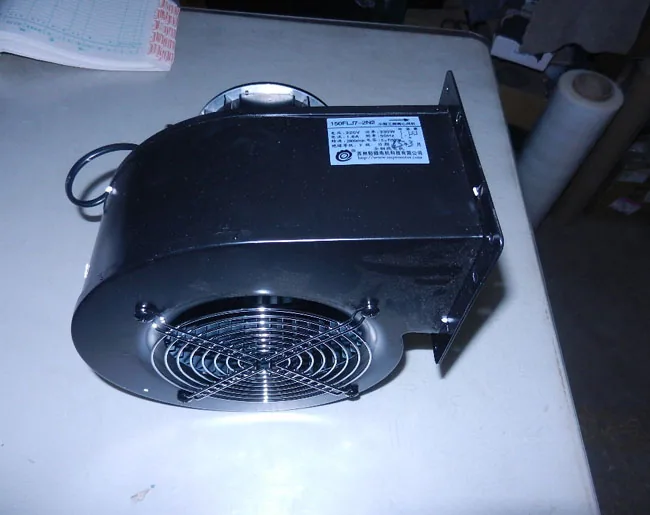

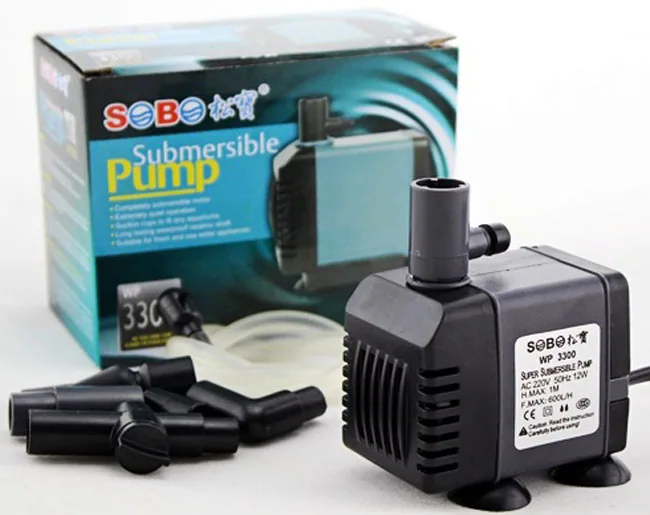

| Standard accessories | Water pump, air pump, exhaust fan, base, wheel etc |
| Other specifications | |
| 360° slope engraving | Yes |
Key Features
- 300 x 500 mm working area
- 60 W – 180 W laser power
- Cuts and engraves wood, acrylic, leather
- Hermetic detached CO2 tube
- Compact footprint
Typical Applications
- Small workshop production
- Craft and gift making
- Acrylic displays and models
- Leather and textile cutting

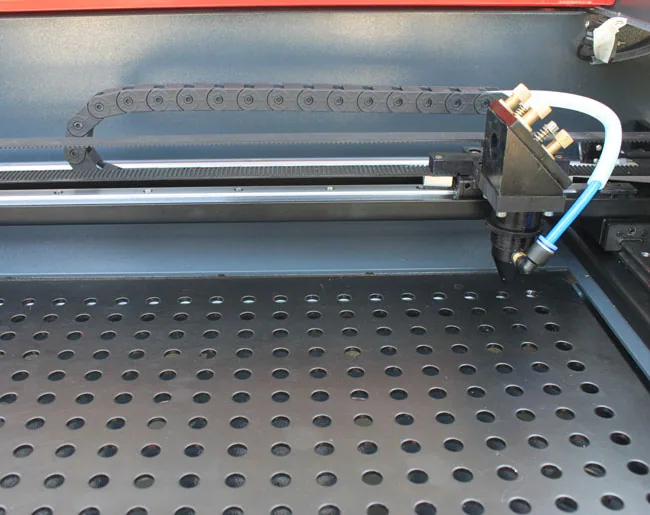

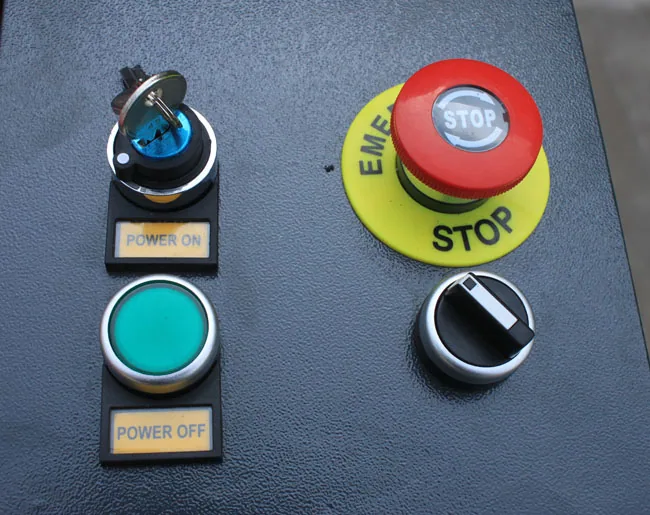

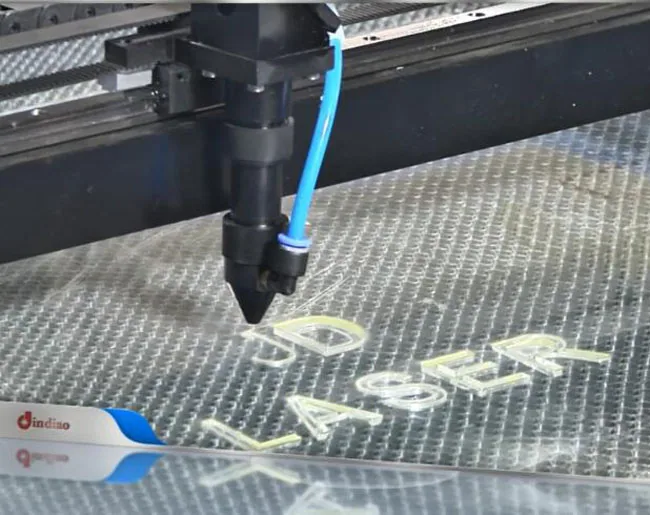

Machine Details

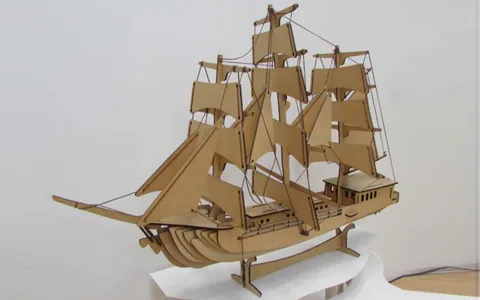

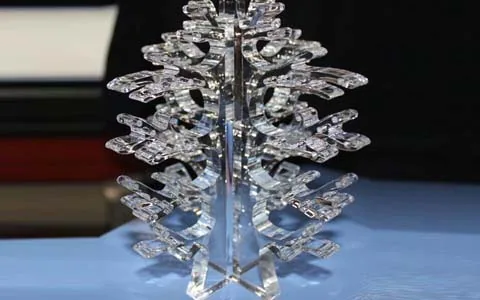

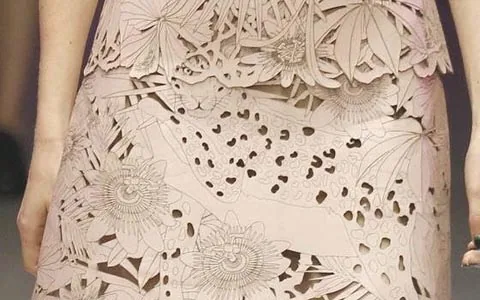

Sample Work

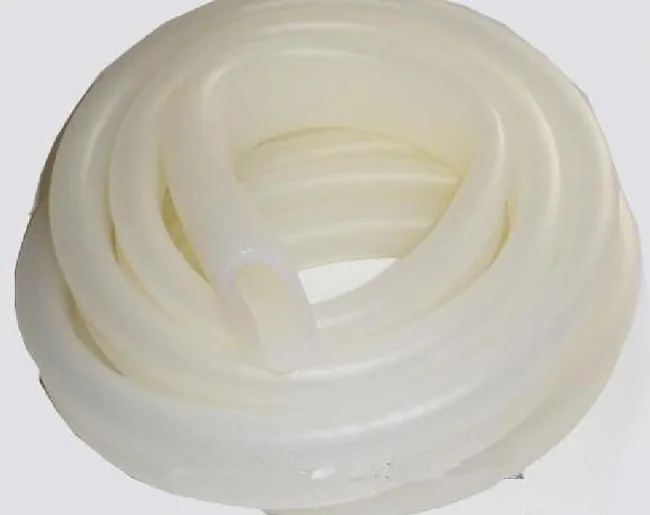

Standard Accessories
