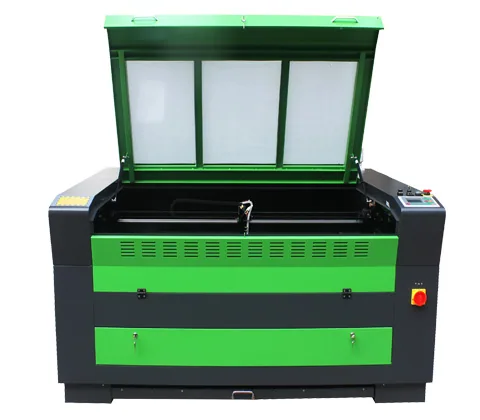

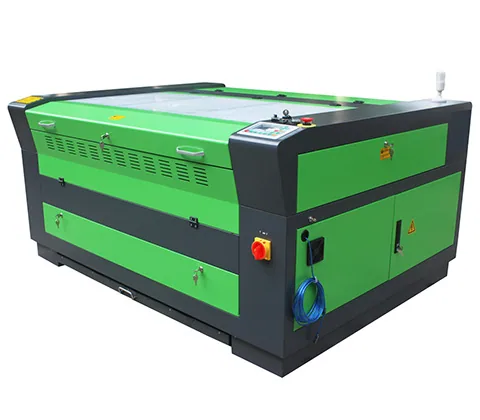

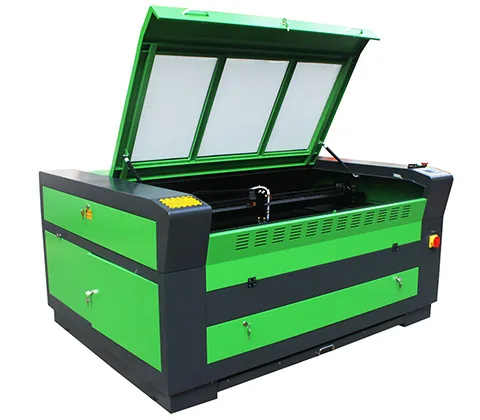

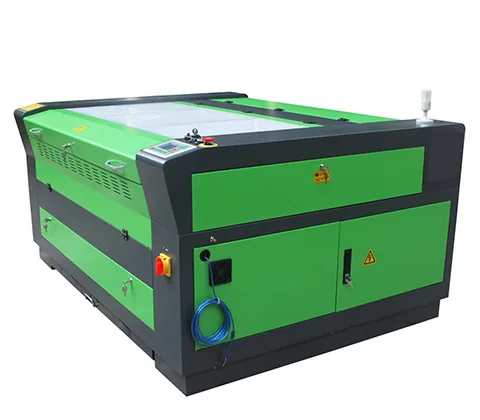

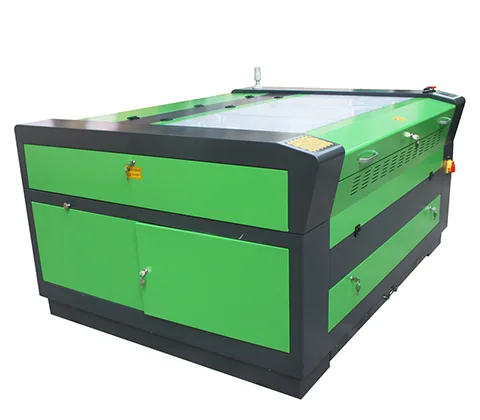

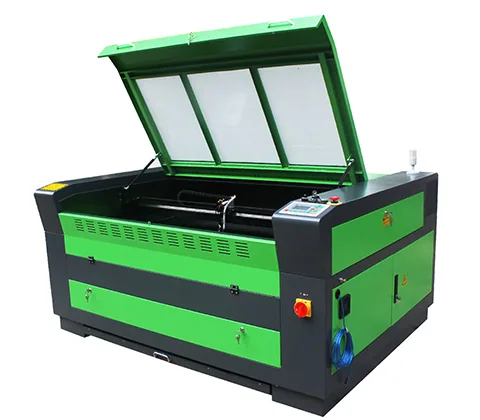

Laser Engraving Cutting Machine
CO2 laser engraving and cutting machine available in PL-6040, PL-9060 and PL-1390 bed sizes, with 60W-260W laser power and engraving speeds up to 75,000 mm/min.
Overview
This model comes in three bed sizes — PL-6040, PL-9060 and PL-1390 — so the same machine and control software can be specified to the space and sheet size a workshop actually has. Laser power is selectable from 60 W to 260 W across the range.
Engraving runs up to 75,000 mm/min and cutting to 40,000 mm/min. Positioning accuracy is ±0.01 mm with 0.01 mm repeatability, which is what allows it to be used for both deep engraving and fine cutting on the same machine.
Technical Specifications
| Machine configuration | |||
| Model | PL-6040 | PL-9060 | PL-1390 |
|---|---|---|---|
| Working area | 600 × 400 mm | 900 × 600 mm | 1300 × 900 mm |
| Laser source and optics | |||
| Laser power | 60 W / 80 W / 100 W / 120 W / 150 W / 180 W / 260 W | ||

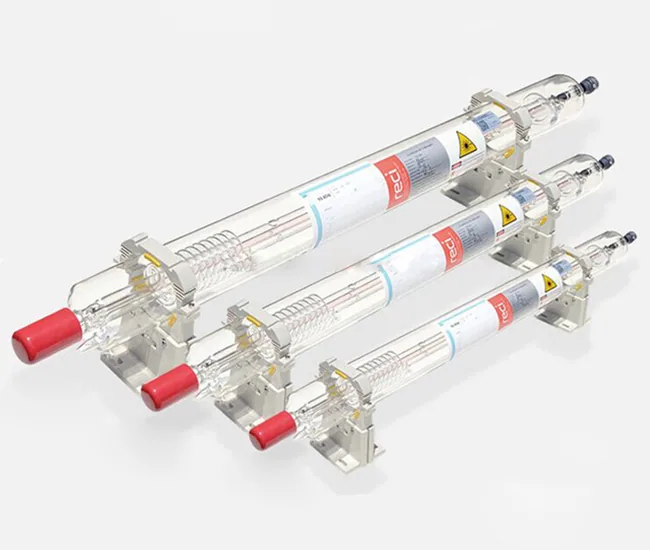

| Laser source type | Hermetic and detached CO₂ laser tube | ||

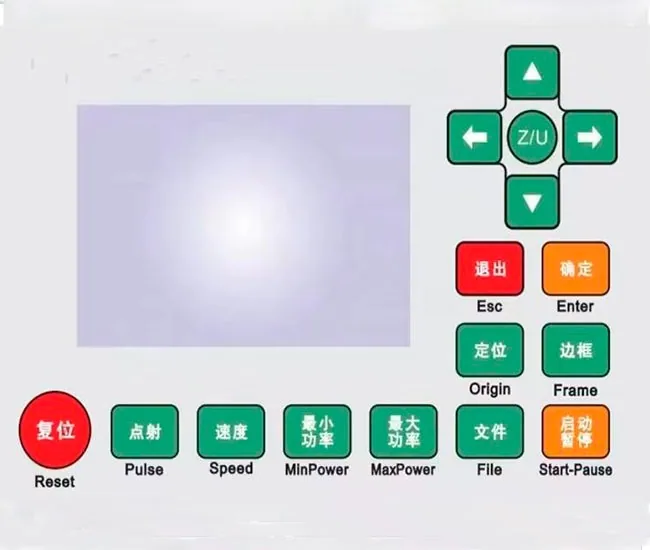

| Laser power control | 1–100 % control panel and software setting | ||
| Cutting and engraving performance | |||
| Engraving speed | 0–75,000 mm/min | ||
| Cutting speed | 0–40,000 mm/min | ||
| Minimum character size | English 1 × 1 mm | ||
| Positioning accuracy | ≤0.01 mm | ||
| Repeatability | 0.01 mm | ||
| Max scanning resolution | 50–1000 DPI | ||
| Motion and drive | |||
| Drive system | Stepper | ||
| Control and software | |||
| Bundled software | RDworks V8 | ||
| Compatible CAD/CAM software | CorelDraw, AutoCAD, Photoshop | ||
| Interface languages | English, Spanish, Portuguese, French, Turkish, German, Korean, Russian etc,convenience of operation control. | ||
| Control system compatibility | Windows 98/ME / 2000/XP/Vista / 2007 | ||
| Supported file formats | BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc | ||
| Power, cooling and environment | |||
| Power supply | AC 220 V (or 110 V) / 50–60 Hz | ||
| Ambient temperature | 0–45 °C | ||
| Ambient humidity | 5–95 % | ||

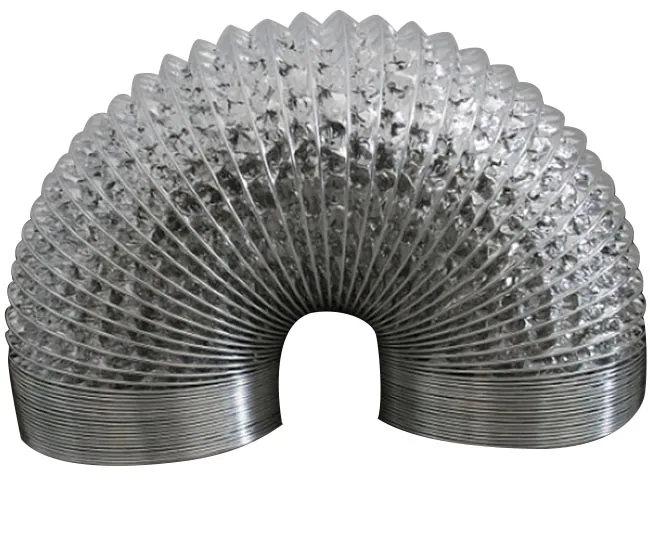

| Extraction and auxiliary | Exhaust fan and Exhaust pipe | ||

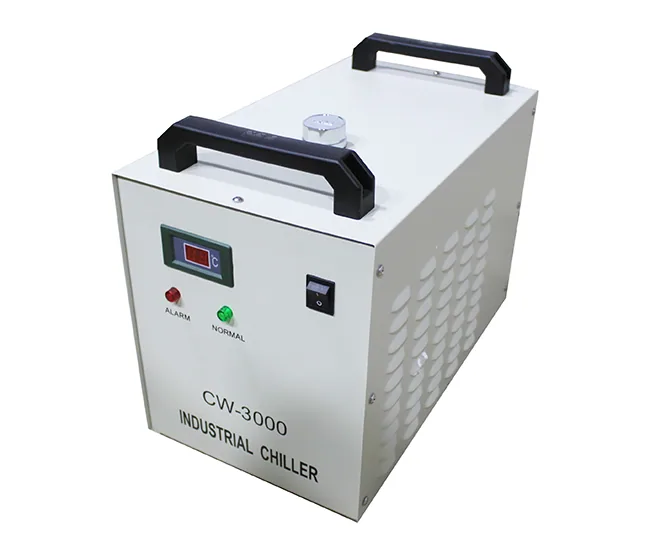

| Cooling | Water-cooling and protection system | ||
| Accessories and options | |||

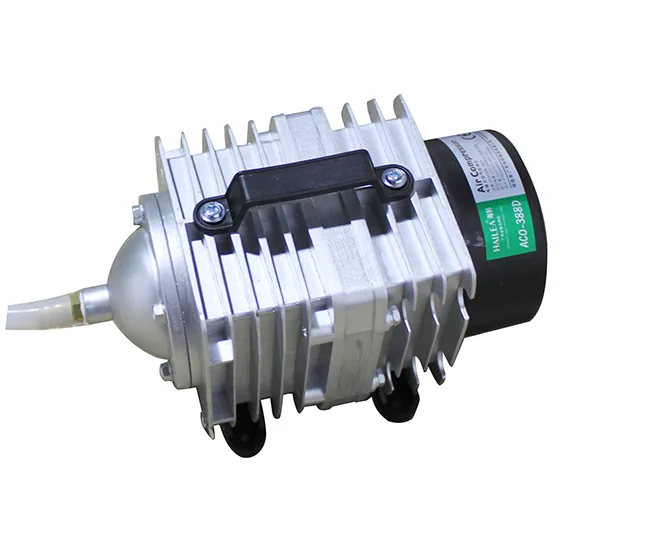

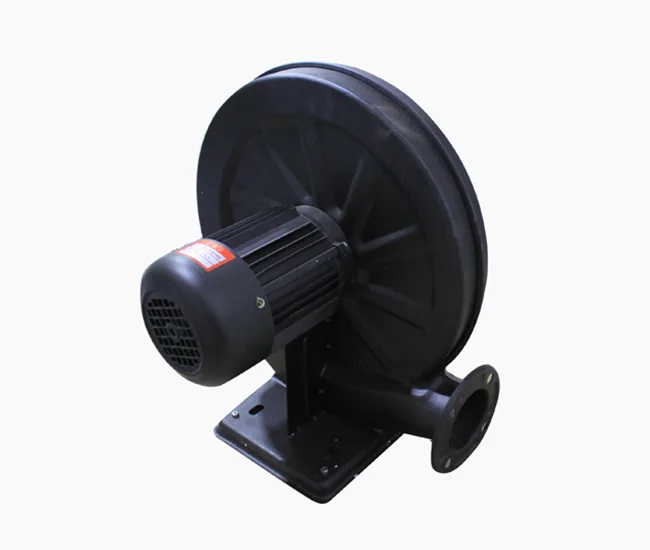

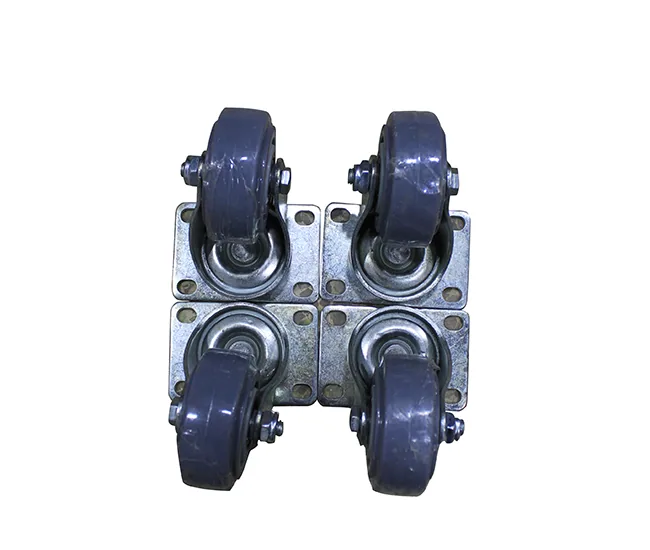

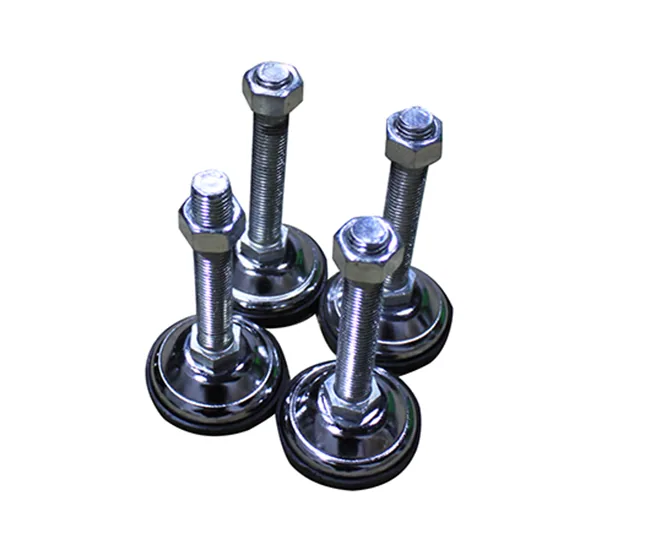

| Standard accessories | Water pump, air pump, exhaust fan, base, wheel etc | ||
| Other specifications | |||
| 360° slope engraving | Yes | ||
Key Features
- Three bed sizes: PL-6040 / PL-9060 / PL-1390
- 60 W – 260 W laser power
- 75,000 mm/min engraving speed
- ±0.01 mm positioning accuracy
- 0.01 mm repeatability
Typical Applications
- Engraving and cutting acrylic
- Wood and MDF processing
- Leather and fabric cutting
- Rubber stamps and seals

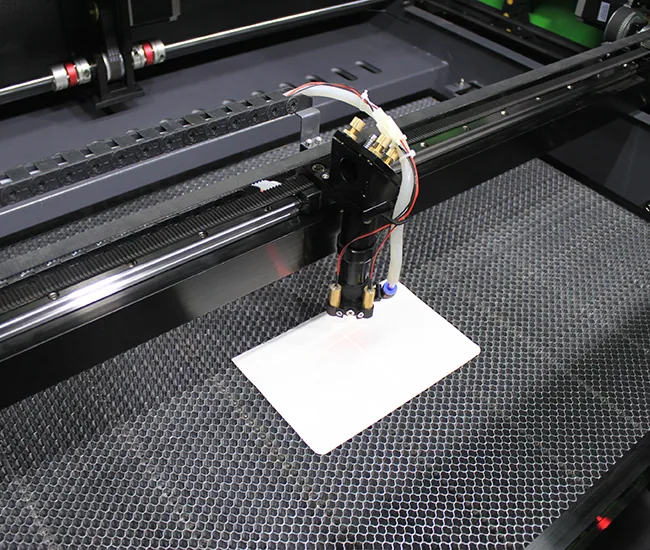

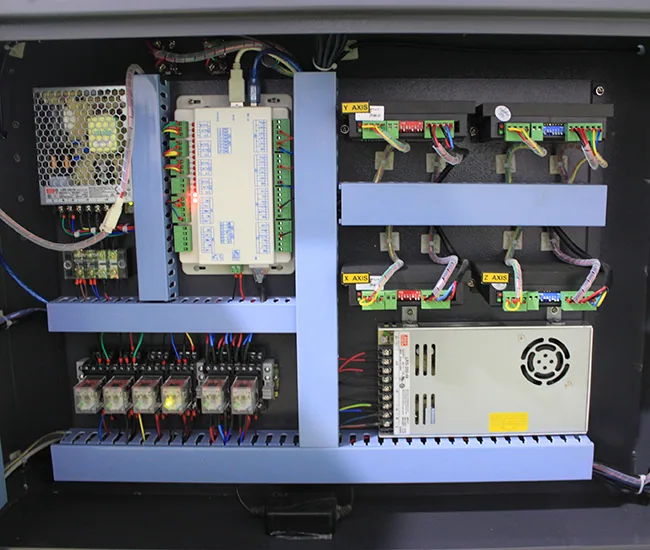

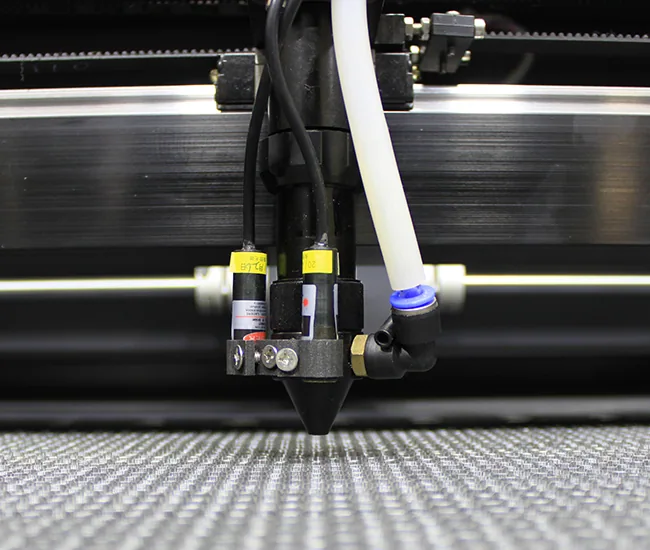

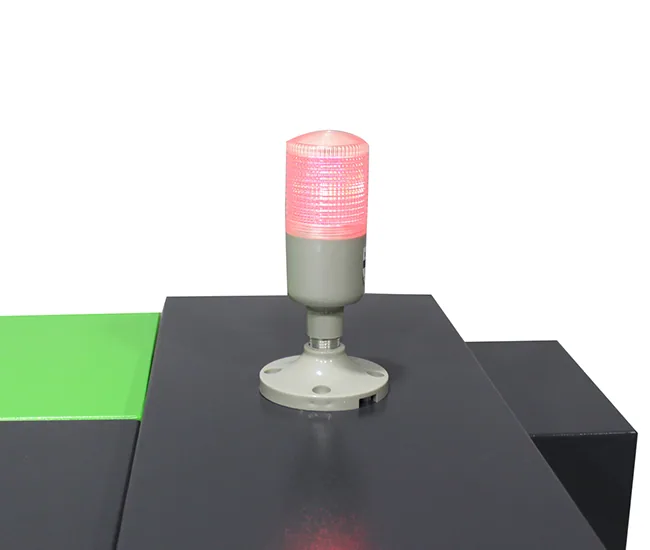

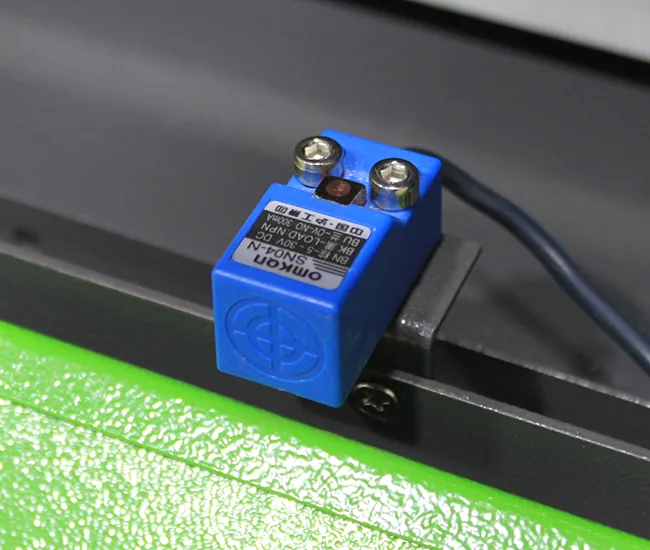

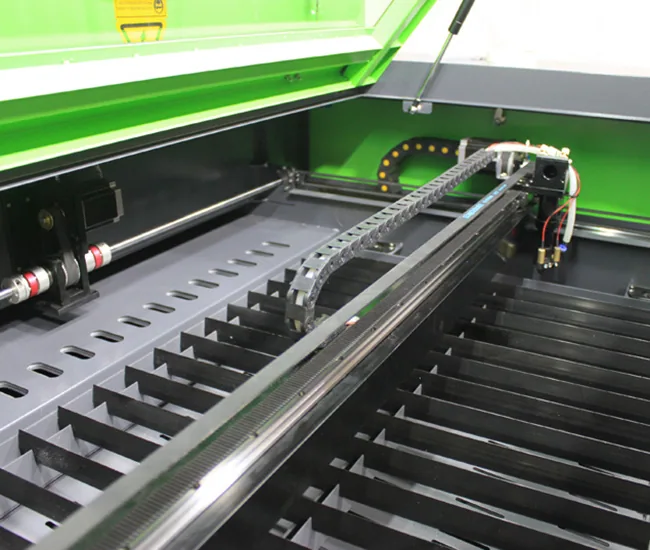

Machine Details

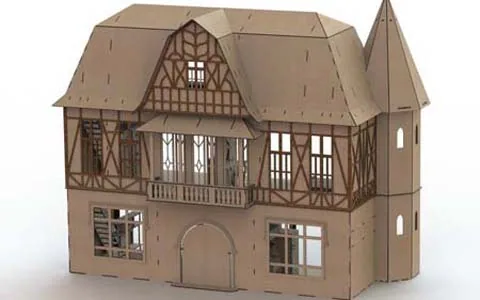

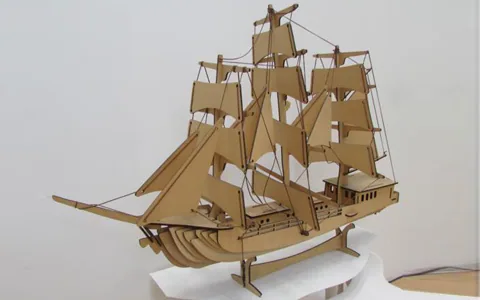

Sample Work

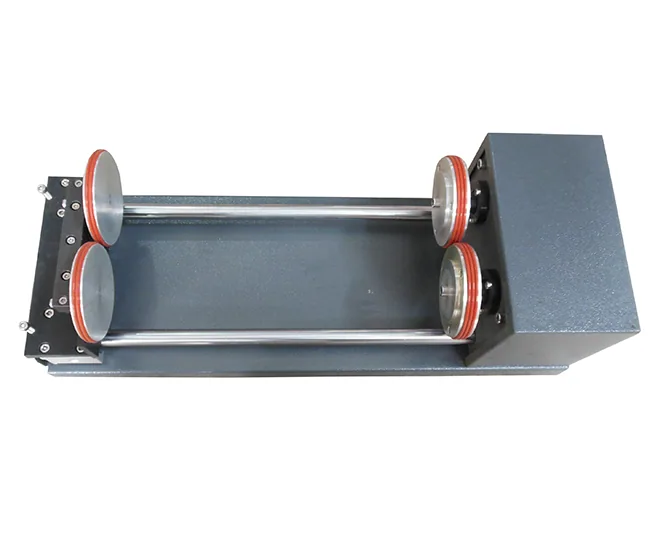

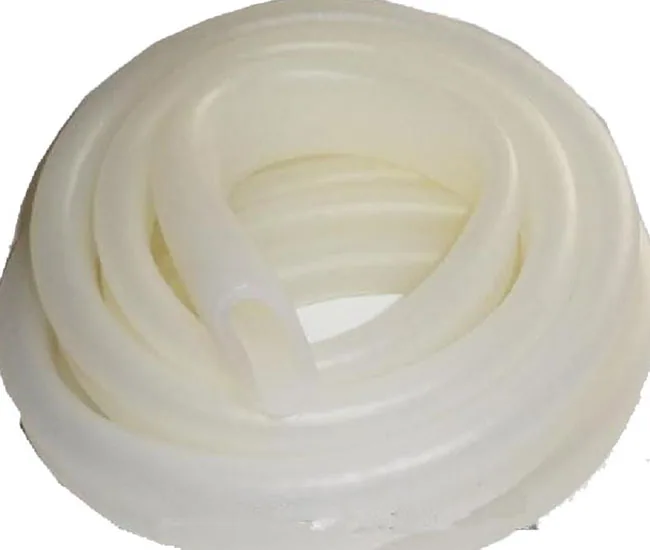

Standard Accessories
