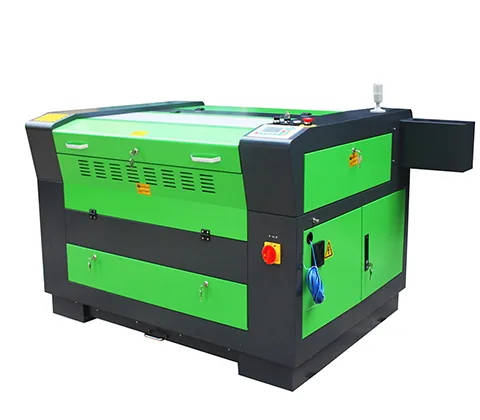

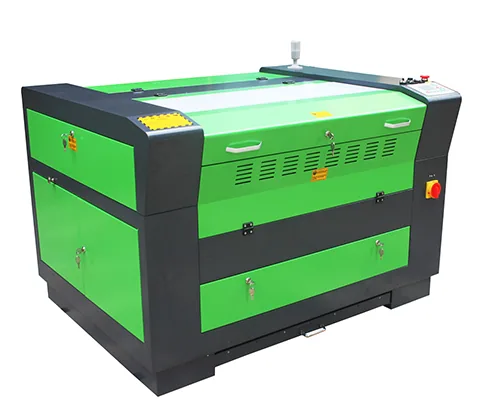

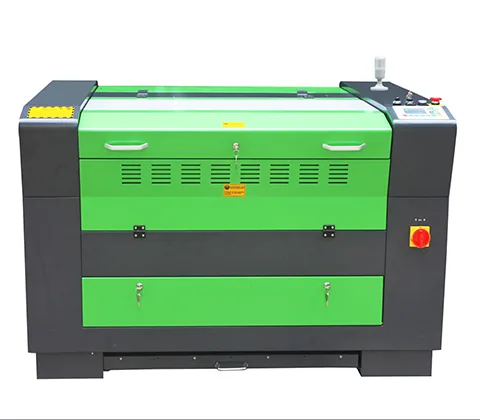

Metal and Nonmetal Laser Cutting Machine
Mixed metal and non-metal laser cutter with a mechanical follow-up cutting head that tracks the material to hold consistent focus. PL-1390 bed with 60W-260W laser power.
Overview

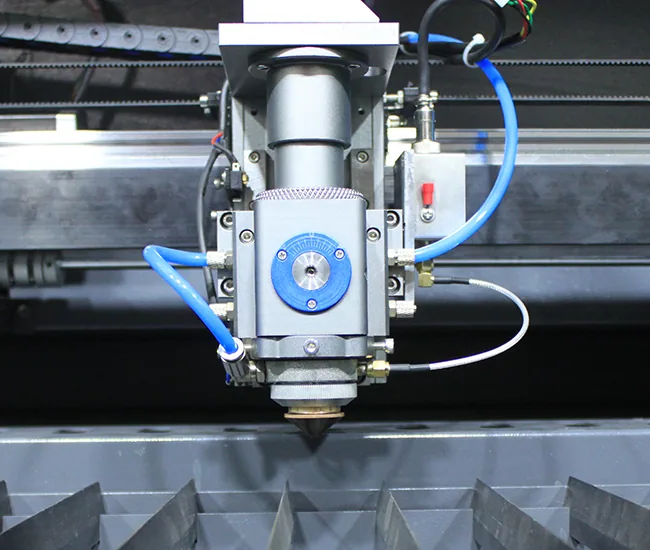

The mixed-cut PL-1390 handles metal and non-metal on the same bed. Its distinguishing part is a mechanical follow-up cutting head: instead of holding a fixed height, the head rides on the material and keeps the focus distance constant even when the sheet is not perfectly flat.
That makes it possible to cut stainless steel and acrylic on the same machine without changing setup, which suits workshops doing mixed-material products. Laser power runs from 60 W to 260 W and the bed is 1300 x 900 mm.
Technical Specifications
| Machine configuration | |||
| Model | PL-6040 | PL-9060 | PL-1390 |
|---|---|---|---|
| Working area | 600 × 400 mm | 900 × 600 mm | 1300 × 900 mm |
| Laser source and optics | |||
| Laser power | 60 W / 80 W / 100 W / 120 W / 150 W / 180 W / 260 W | ||

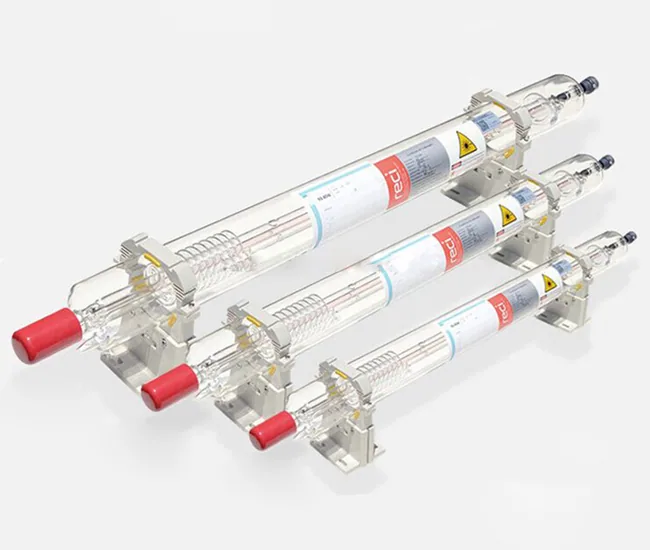

| Laser source type | Hermetic and detached CO₂ laser tube | ||

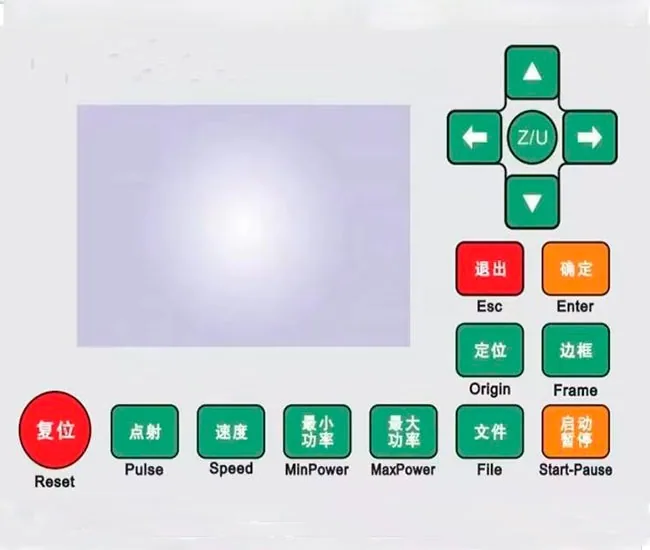

| Laser power control | 1–100 % control panel and software setting | ||
| Cutting and engraving performance | |||
| Engraving speed | 0–75,000 mm/min | ||
| Cutting speed | 0–40,000 mm/min | ||
| Minimum character size | English 1 × 1 mm | ||
| Positioning accuracy | ≤0.01 mm | ||
| Repeatability | 0.01 mm | ||
| Max scanning resolution | 50–1000 DPI | ||
| Motion and drive | |||
| Drive system | Stepper | ||
| Control and software | |||
| Bundled software | RDworks V8 | ||
| Compatible CAD/CAM software | CorelDraw, AutoCAD, Photoshop | ||
| Interface languages | English, Spanish, Portuguese, French, Turkish, German, Korean, Russian etc,convenience of operation control. | ||
| Control system compatibility | Windows 98/ME / 2000/XP/Vista / 2007 | ||
| Supported file formats | BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc | ||
| Power, cooling and environment | |||
| Power supply | AC 220 V (or 110 V) / 50–60 Hz | ||
| Ambient temperature | 0–45 °C | ||
| Ambient humidity | 5–95 % | ||

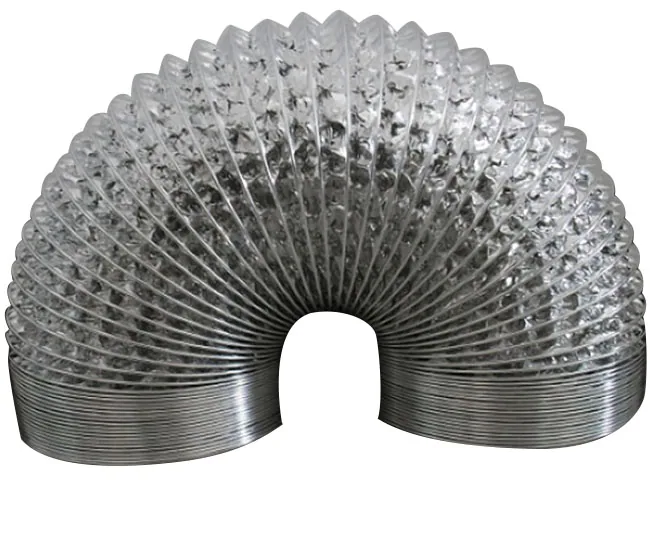

| Extraction and auxiliary | Exhaust fan and Exhaust pipe | ||
| Cooling | Water-cooling and protection system | ||
| Accessories and options | |||

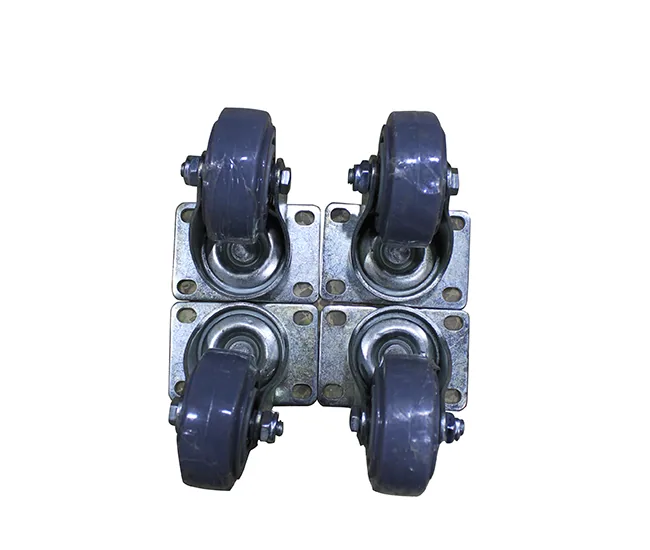

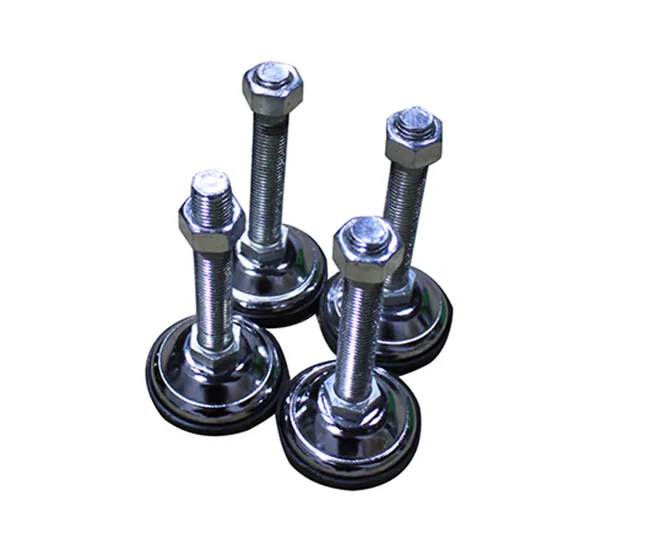

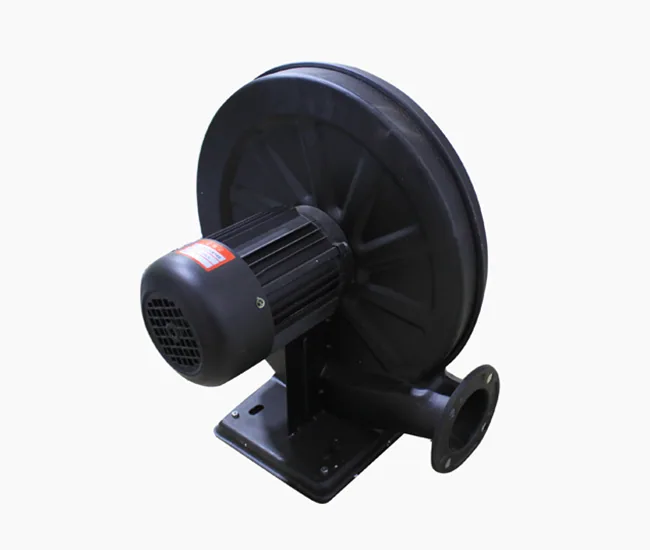

| Standard accessories | Water pump, air pump, exhaust fan, base, wheel etc | ||
| Other specifications | |||
| 360° slope engraving | Yes | ||
Key Features
- Mechanical follow-up cutting head
- Cuts metal and non-metal on one bed
- 1300 x 900 mm working area
- 60 W – 260 W laser power
- Constant focus on uneven material
Typical Applications
- Mixed metal and acrylic products
- Signage with metal and plastic layers
- Advertising and display parts
- Prototype and sample work

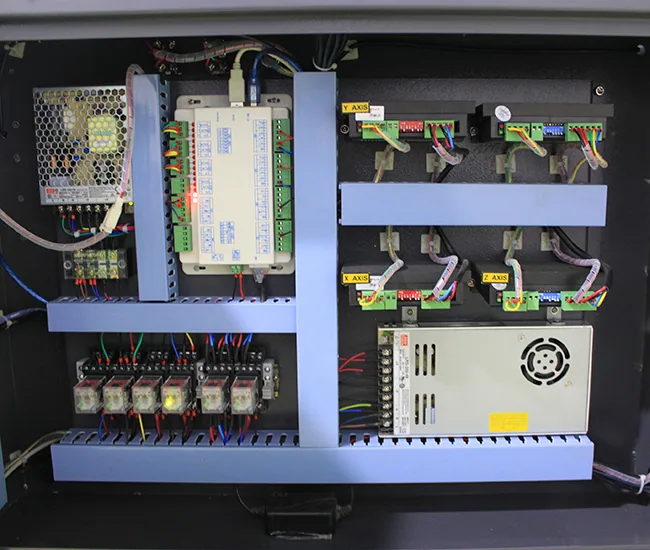

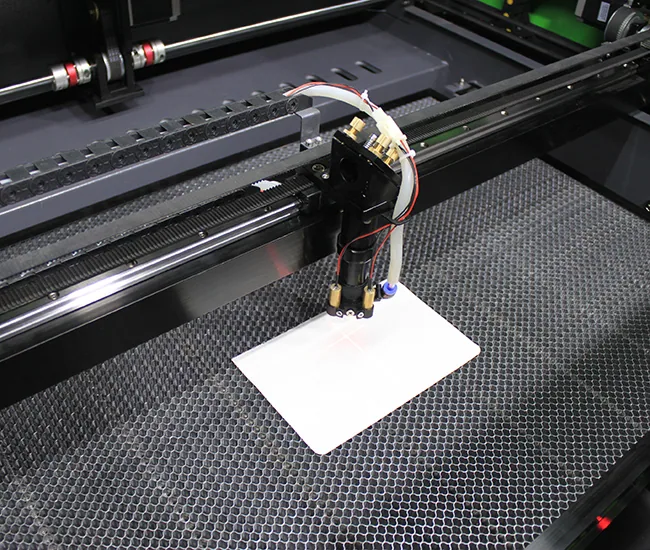

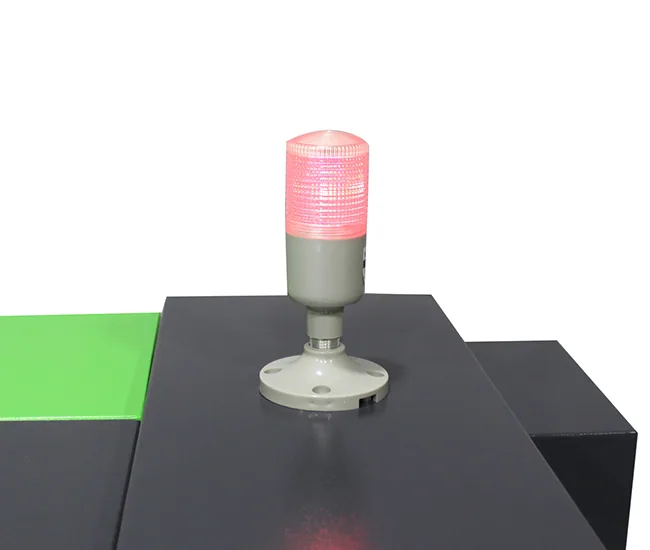

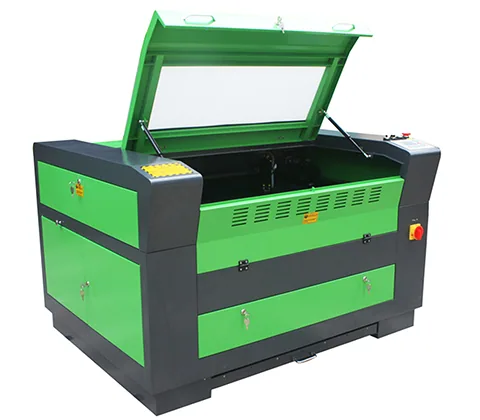

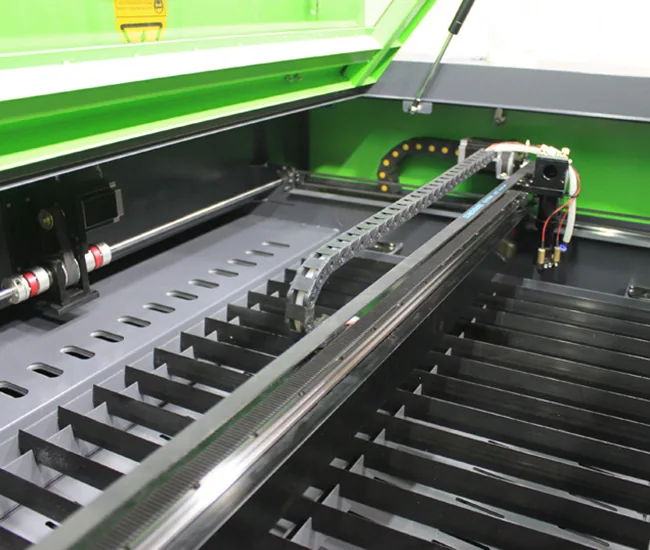

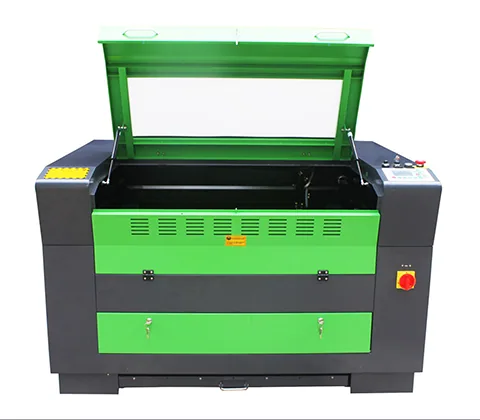

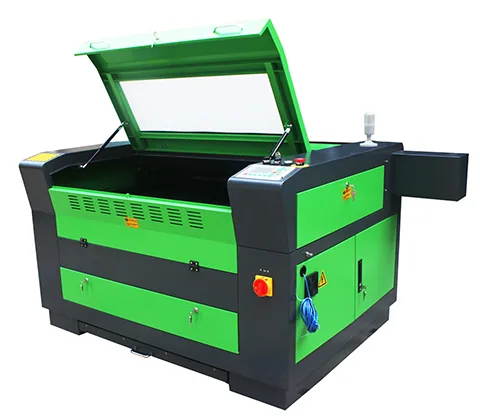

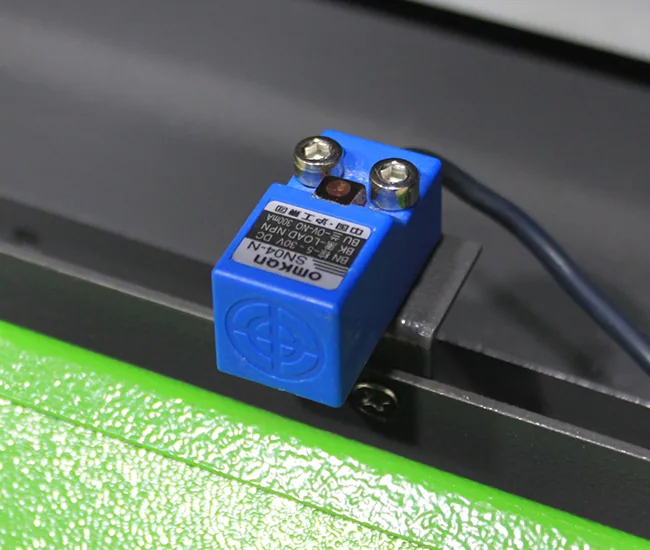

Machine Details

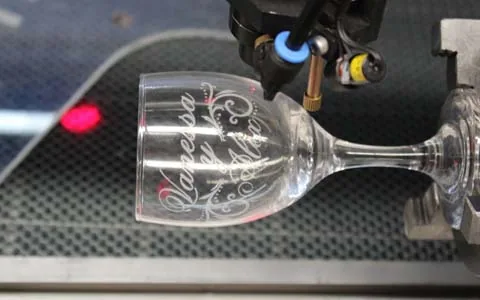

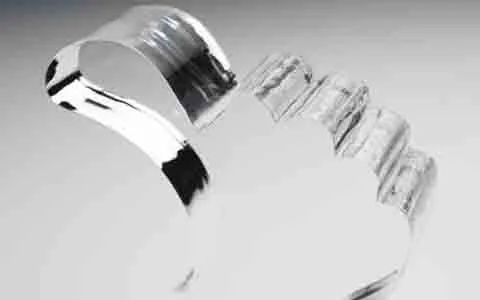

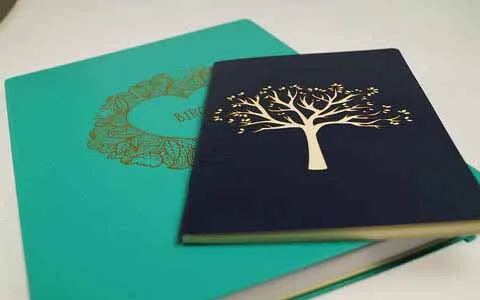

Sample Work

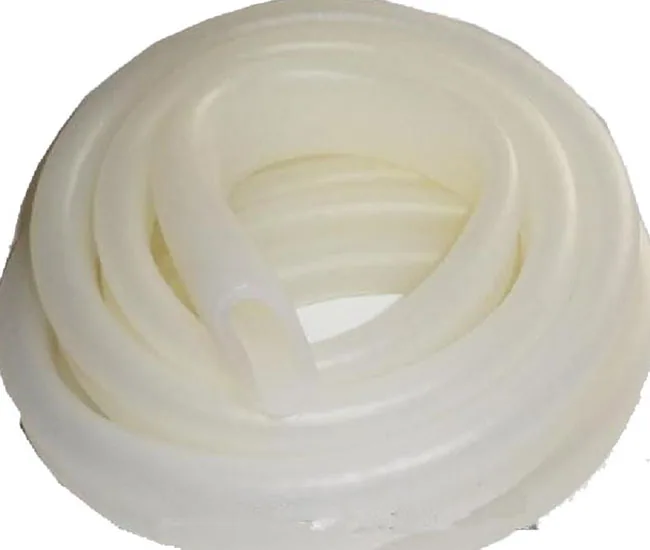

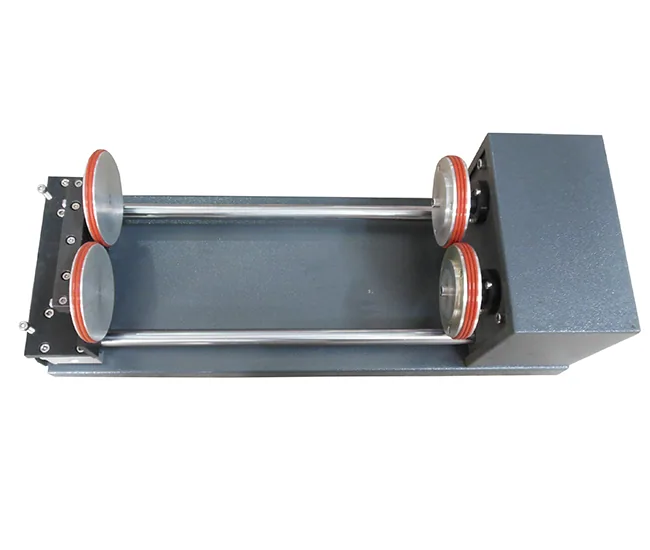

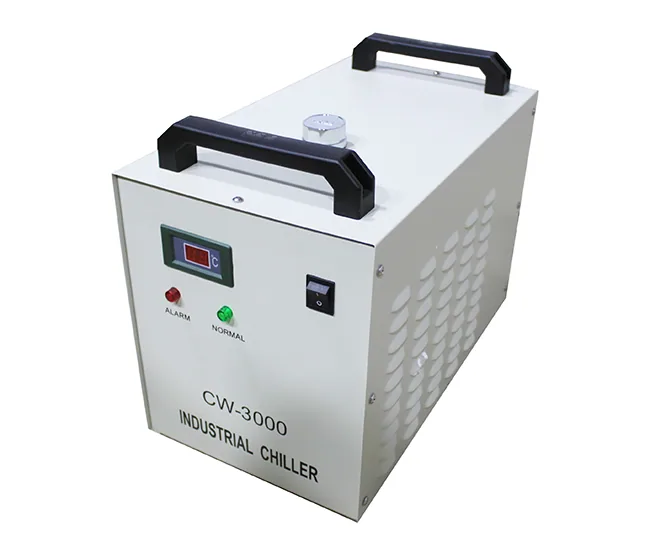

Standard Accessories
