Metal Laser Cutting Machine

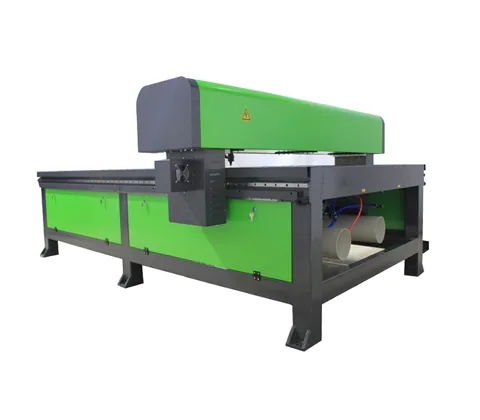

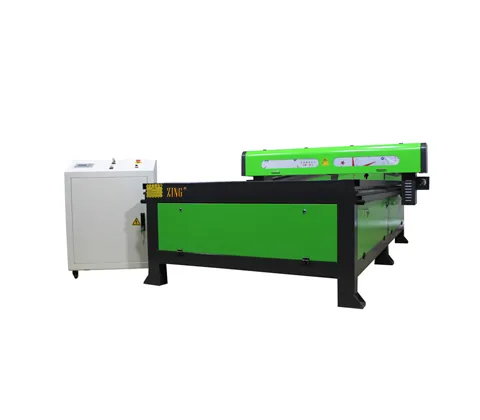

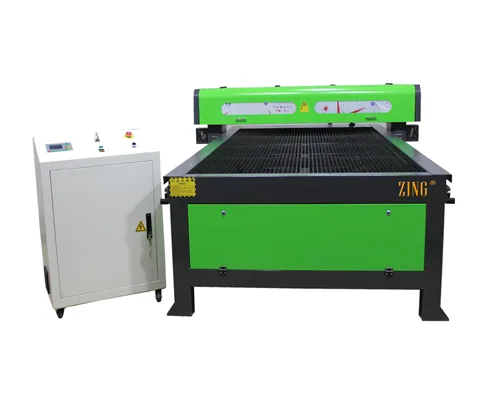

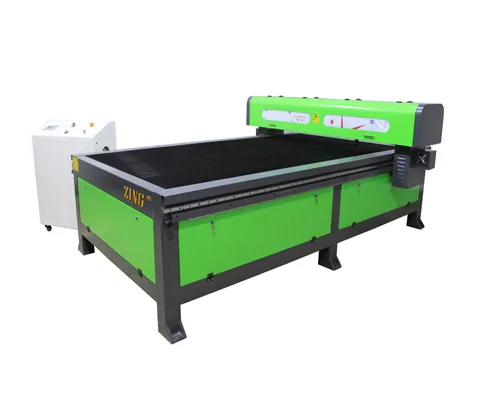

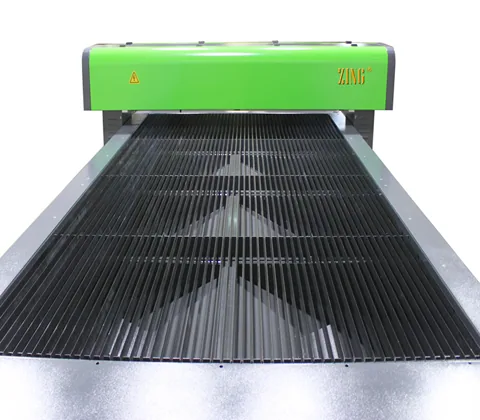

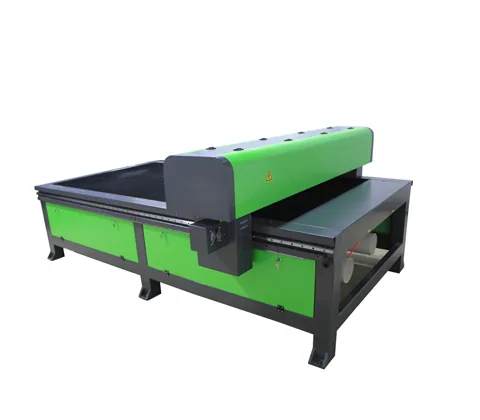

PL-1625 CO2 laser cutting machine with a 1600 x 2500 mm working area and 60W-260W laser power, configured for stainless steel, carbon steel and non-metal sheet.
Overview
This CO2 laser cutting machine is offered in three bed sizes — PL-1320, PL-1325 and PL-1625 — covering 1300 x 2000 mm up to 1600 x 2500 mm. Laser power is selectable from 60 W to 260 W, so the same platform serves light engraving and heavier profiling.
A stepper drive system with RDWorks V8 or LaserCut 5.3 software keeps the control side straightforward and widely supported, and the machine reads the usual design formats including DXF, PLT, AI, DWG and CDR. Cooling is a water system with protection, and the machine runs on single-phase 220 V (or 110 V).
Technical Specifications
| Machine configuration | |||
| Model | PL-1320 | PL-1325 | PL-1625 |
|---|---|---|---|
| Working area | 1300 × 2000 mm | 1300 × 2500 mm | 1600 × 2500 mm |
| Laser source and optics | |||
| Laser power | 60 W / 80 W / 100 W / 120 W / 150 W / 180 W / 260 W | ||

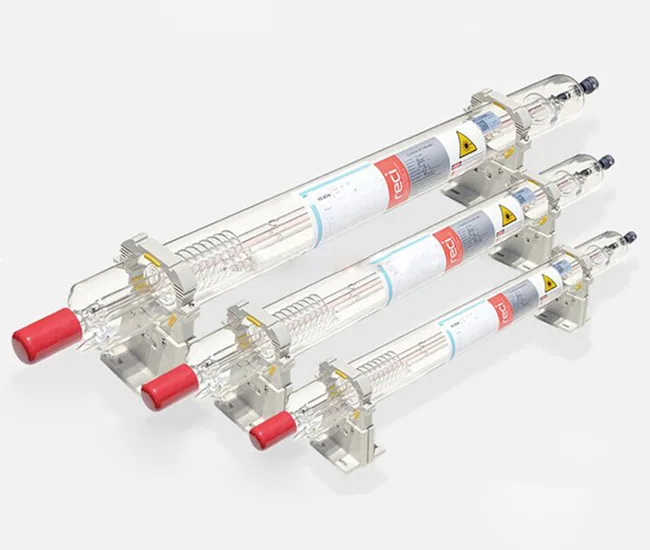

| Laser source type | Hermetic and detached CO₂ laser tube | ||
| Laser power control | 1–100 % control panel and software setting | ||
| Cutting and engraving performance | |||
| Engraving speed | 0–75,000 mm/min | ||
| Cutting speed | 0–40,000 mm/min | ||
| Minimum character size | English 1 × 1 mm | ||
| Positioning accuracy | ≤0.01 mm | ||
| Repeatability | 0.01 mm | ||
| Max scanning resolution | 50–1000 DPI | ||
| Motion and drive | |||
| Drive system | Stepper | ||
| Control and software | |||
| Bundled software | RDworks V8 Or Lasercut 5.3 | ||
| Compatible CAD/CAM software | CorelDraw, AutoCAD, Photoshop | ||
| Interface languages | English, Spanish, Portuguese, French, Turkish, German, Korean, Russian etc,convenience of operation control. | ||
| Control system compatibility | Windows 98/ME / 2000/XP/Vista / 2007 | ||
| Supported file formats | BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc | ||
| Power, cooling and environment | |||
| Power supply | AC 220 V (or 110 V) / 50–60 Hz | ||
| Ambient temperature | 0–45 °C | ||
| Ambient humidity | 5–95 % | ||

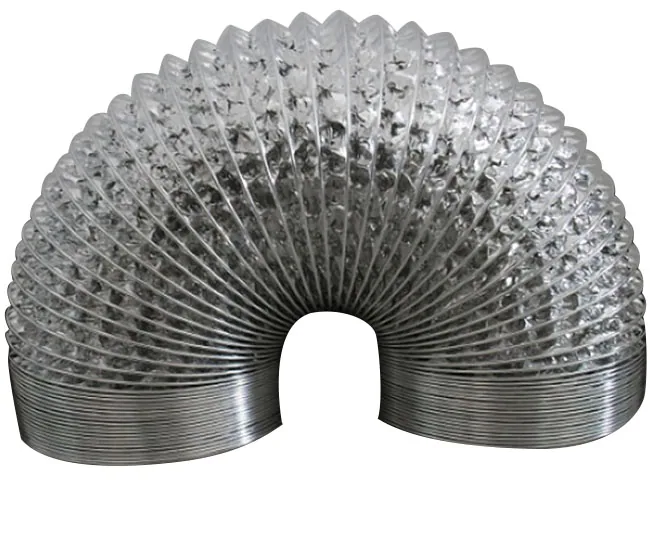

| Extraction and auxiliary | Exhaust fan and Exhaust pipe | ||

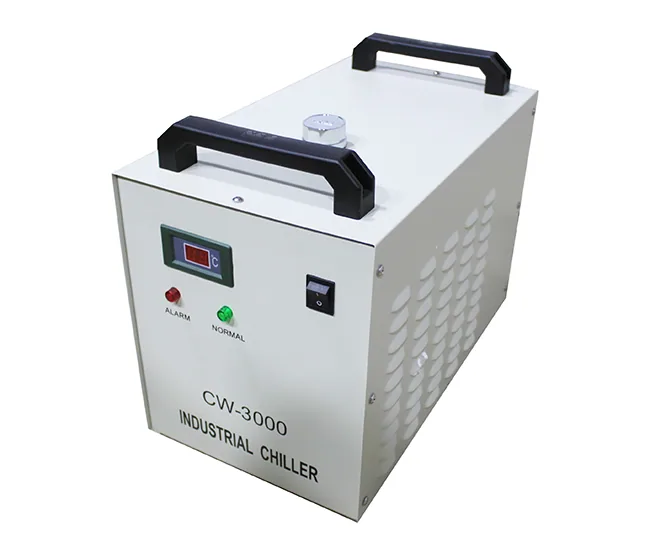

| Cooling | Water-cooling and protection system | ||
| Accessories and options | |||

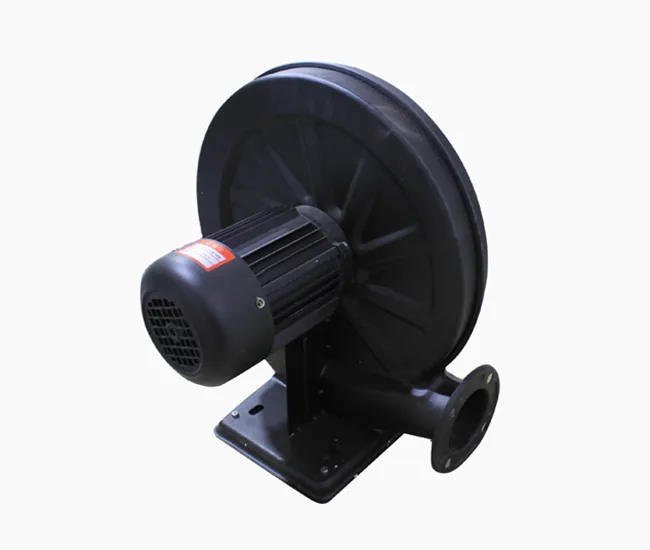

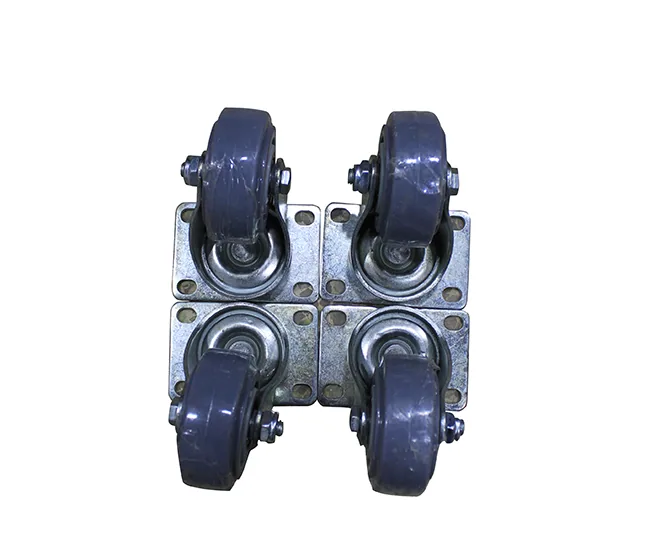

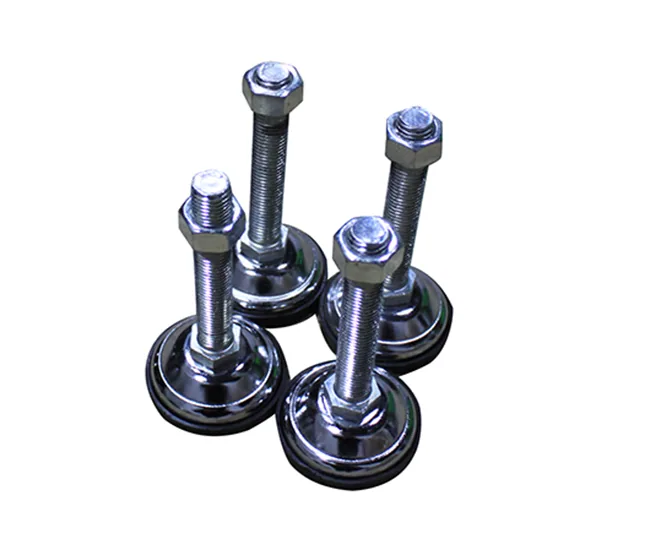

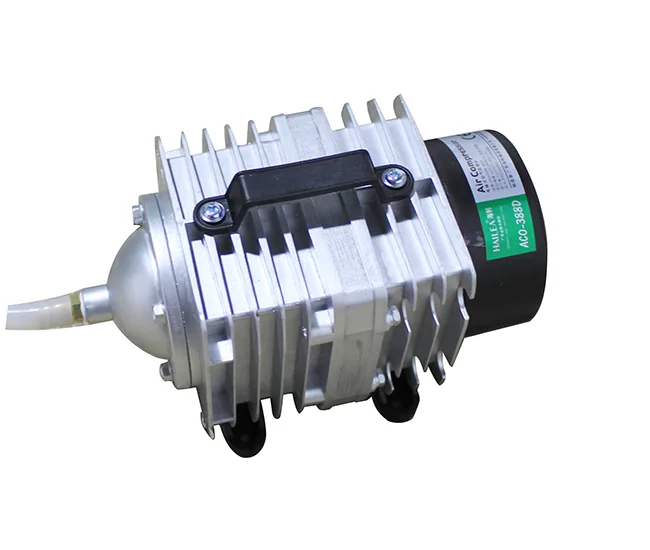

| Standard accessories | Water pump, air pump, exhaust fan, base, wheel etc | ||
| Other specifications | |||
| 360° slope engraving | Yes | ||
Key Features
- Three bed sizes: PL-1320 / PL-1325 / PL-1625
- 60 W – 260 W laser power
- Water cooling with protection system
- RDWorks V8 or LaserCut 5.3 software
- 220 V (or 110 V) single-phase supply
Typical Applications
- Stainless and carbon steel sheet
- Acrylic and sign making
- Wood, MDF and leather
- Mixed production workshops

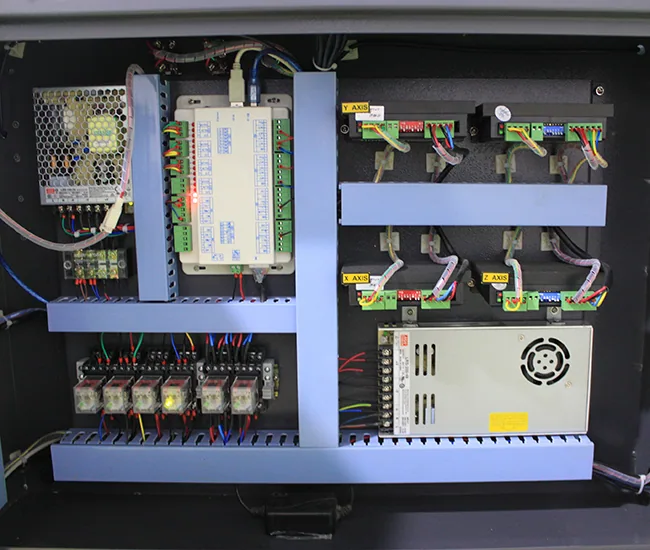

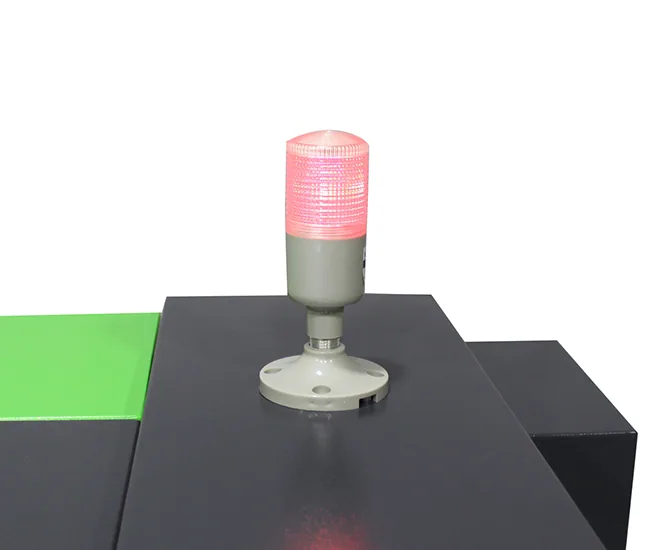

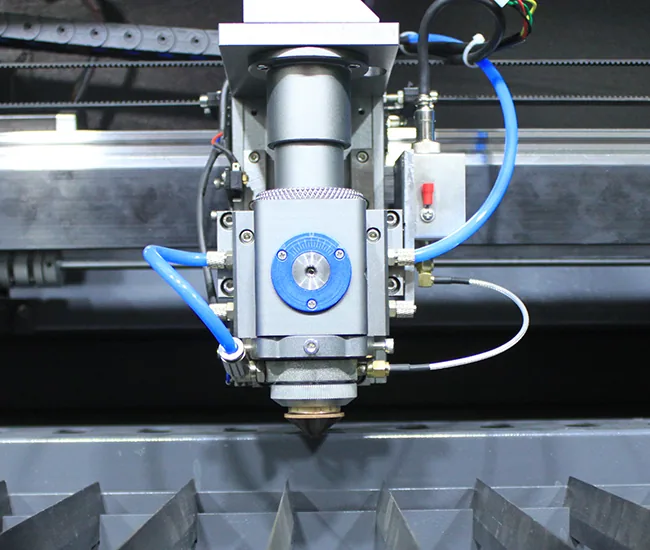

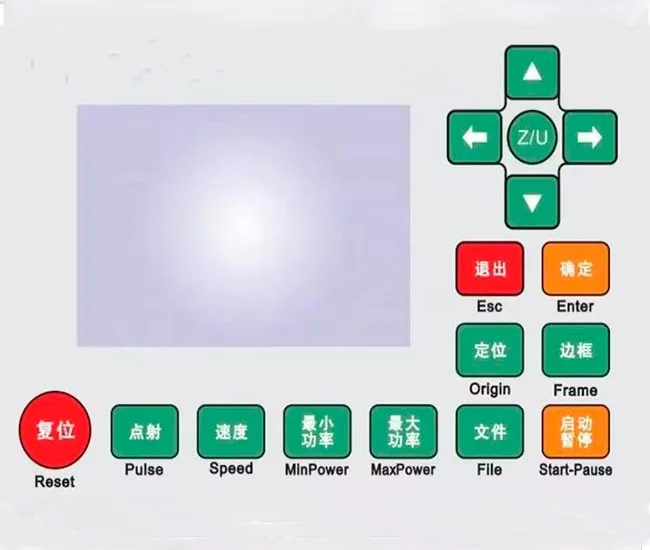

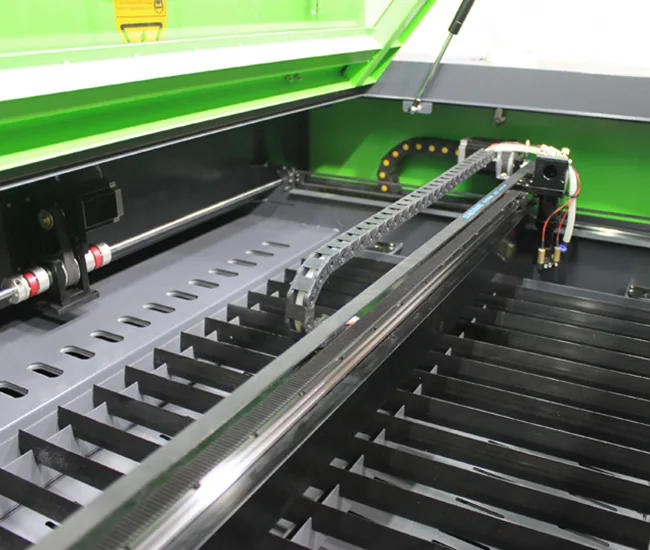

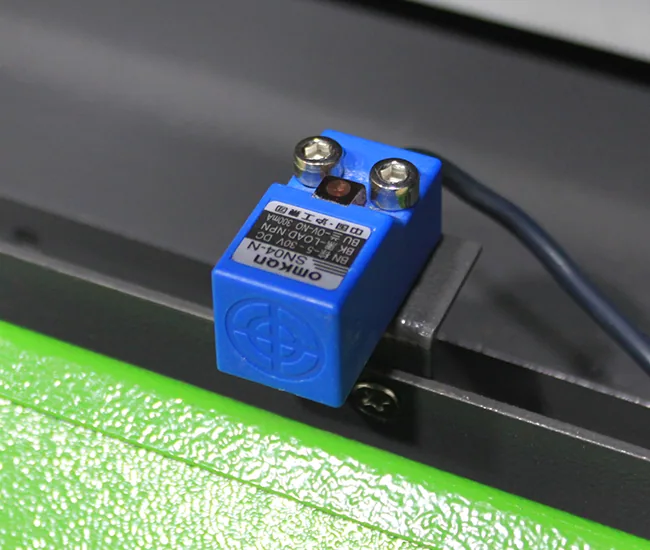

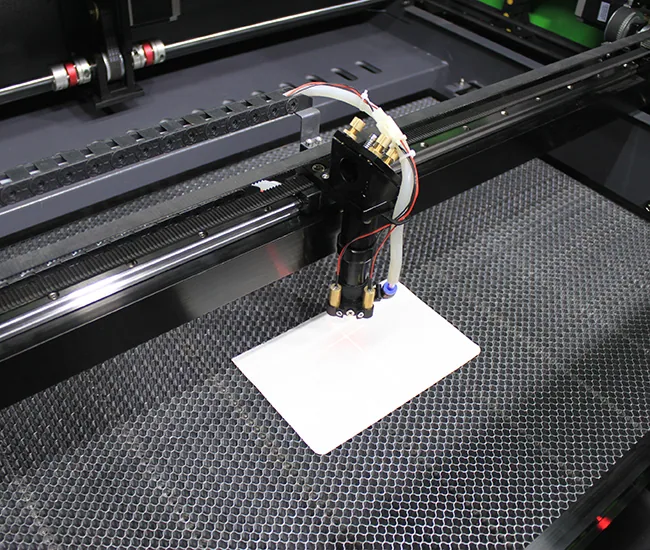

Machine Details

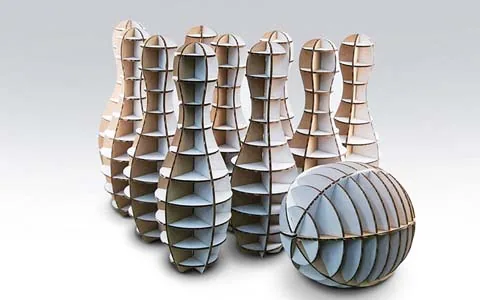

Sample Work

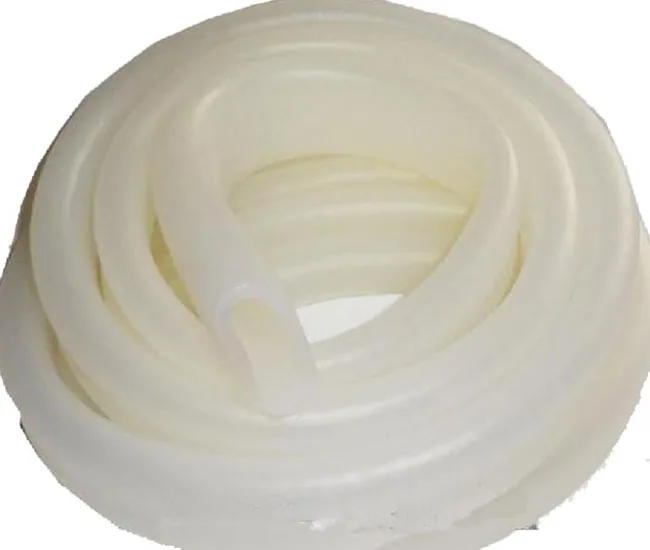

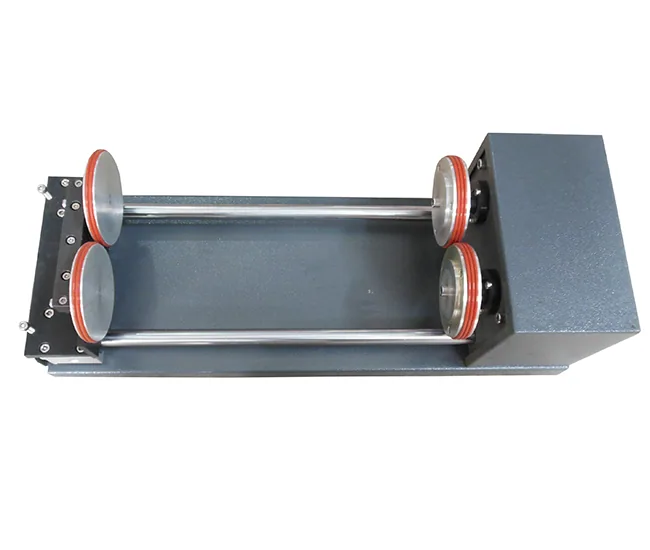

Standard Accessories
