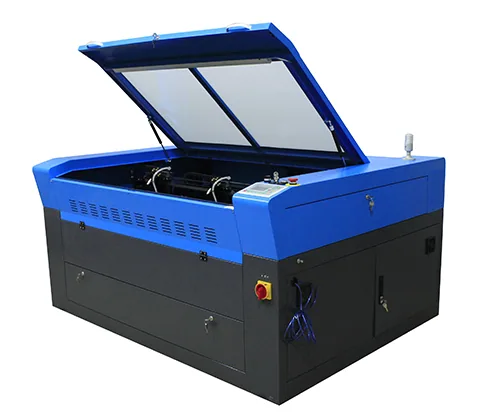

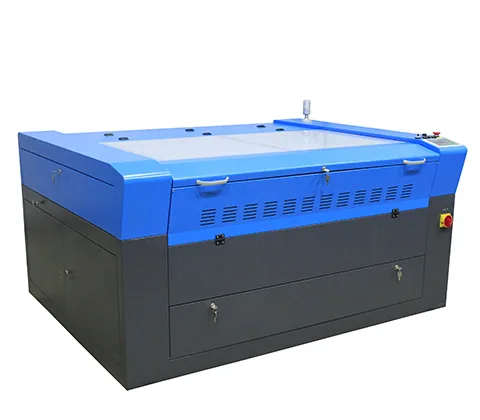

Dual (Multi) Heads Customized Laser Cutting Machine
Twin-head CO2 laser cutter: two laser tubes and two cutting heads run from one gantry, doubling output on identical parts. Working area 1300 x 900 mm with 60W-260W per head.
Overview

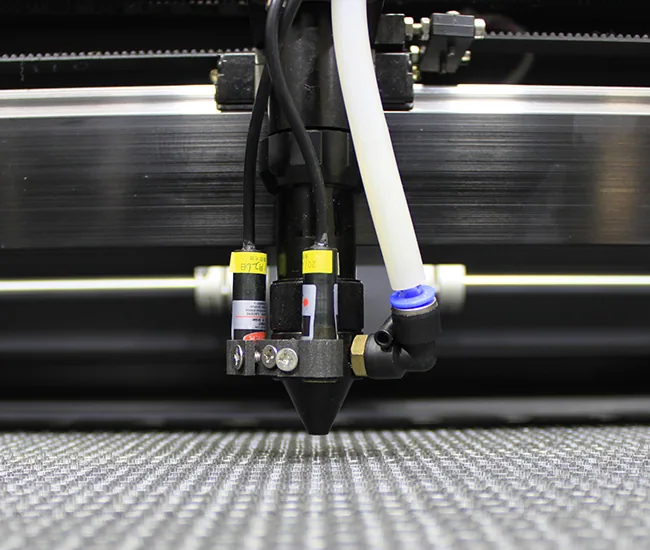

The dual-head PL-1390 runs two independent laser tubes and two cutting heads on a single gantry. For production work that repeats the same part, both heads cut the same program at once, which roughly doubles output for the same floor space and operator.
Each head is selectable from 60 W to 260 W, and the 1300 x 900 mm bed takes standard sheet sizes. Where the job needs two different materials or two different profiles, the heads can also be offset to run separate paths.
Technical Specifications
| Machine configuration | |||
| Model | PL-6040 | PL-9060 | PL-1390 |
|---|---|---|---|
| Working area | 600 × 400 mm | 900 × 600 mm | 1300 × 900 mm |
| Laser source and optics | |||
| Laser power | 60 W / 80 W / 100 W / 120 W / 150 W / 180 W / 260 W | ||

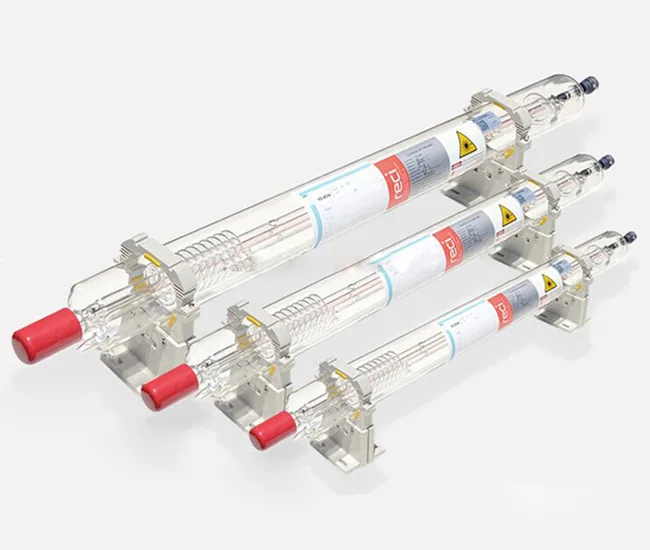

| Laser source type | Hermetic and detached CO₂ laser tube | ||

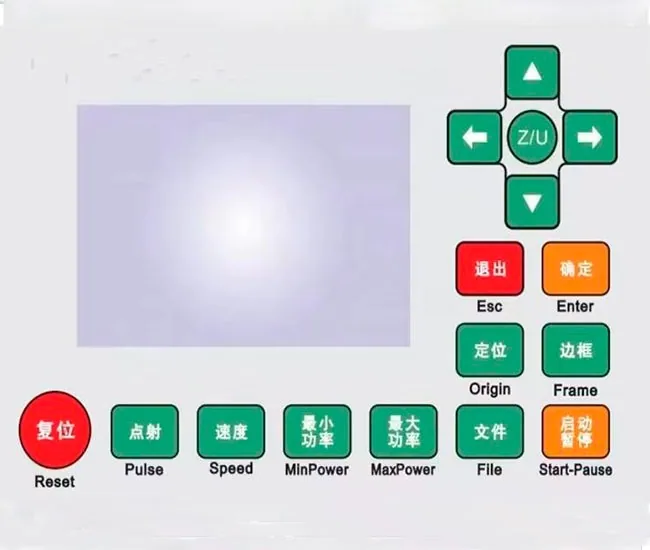

| Laser power control | 1–100 % control panel and software setting | ||
| Cutting and engraving performance | |||
| Engraving speed | 0–75,000 mm/min | ||
| Cutting speed | 0–40,000 mm/min | ||
| Minimum character size | English 1 × 1 mm | ||
| Positioning accuracy | ≤0.01 mm | ||
| Repeatability | 0.01 mm | ||
| Max scanning resolution | 50–1000 DPI | ||
| Motion and drive | |||
| Drive system | Stepper | ||
| Control and software | |||
| Bundled software | RDworks V8 | ||
| Compatible CAD/CAM software | CorelDraw, AutoCAD, Photoshop | ||
| Interface languages | English, Spanish, Portuguese, French, Turkish, German, Korean, Russian etc,convenience of operation control. | ||
| Control system compatibility | Windows 98/ME / 2000/XP/Vista / 2007 | ||
| Supported file formats | BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc | ||
| Power, cooling and environment | |||
| Power supply | AC 220 V (or 110 V) / 50–60 Hz | ||
| Ambient temperature | 0–45 °C | ||
| Ambient humidity | 5–95 % | ||

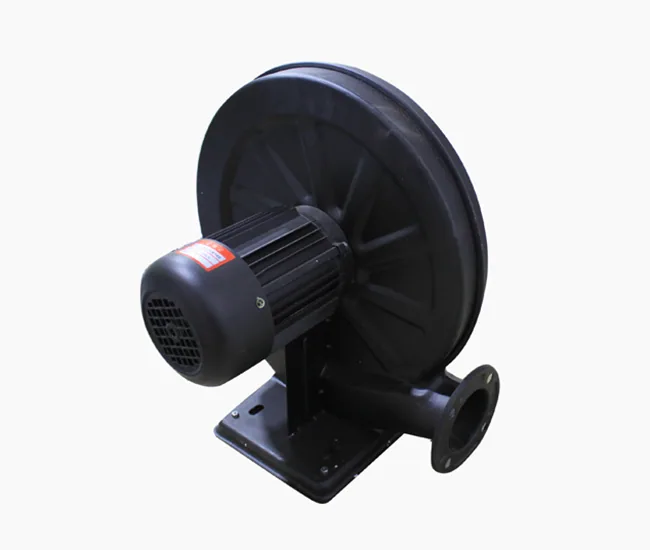

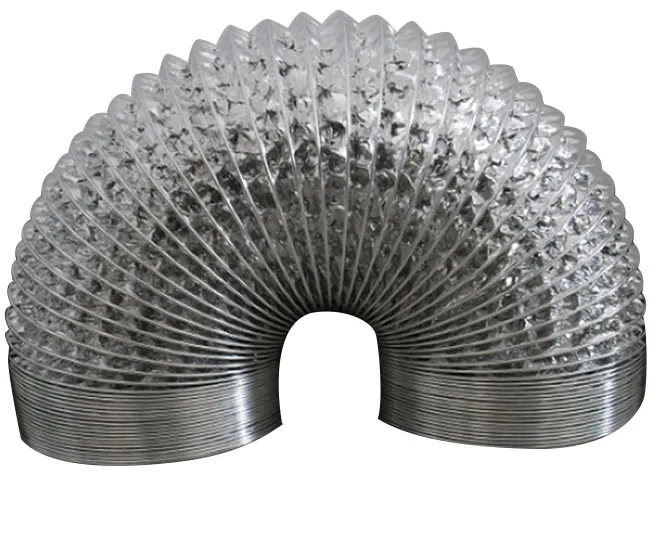

| Extraction and auxiliary | Exhaust fan and Exhaust pipe | ||

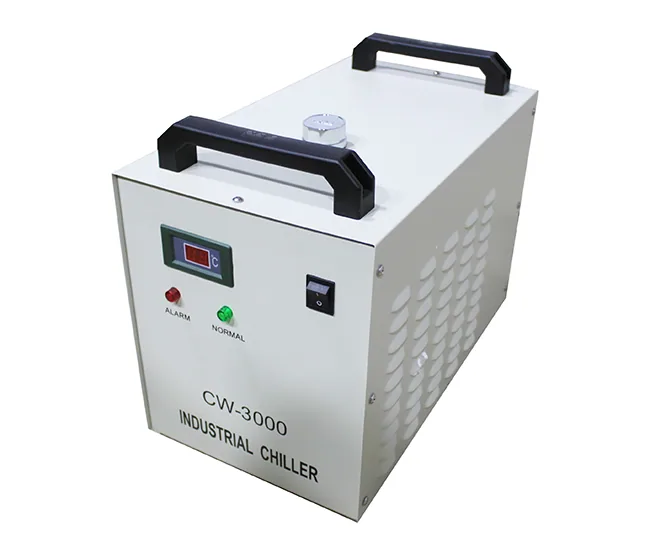

| Cooling | Water-cooling and protection system | ||
| Accessories and options | |||

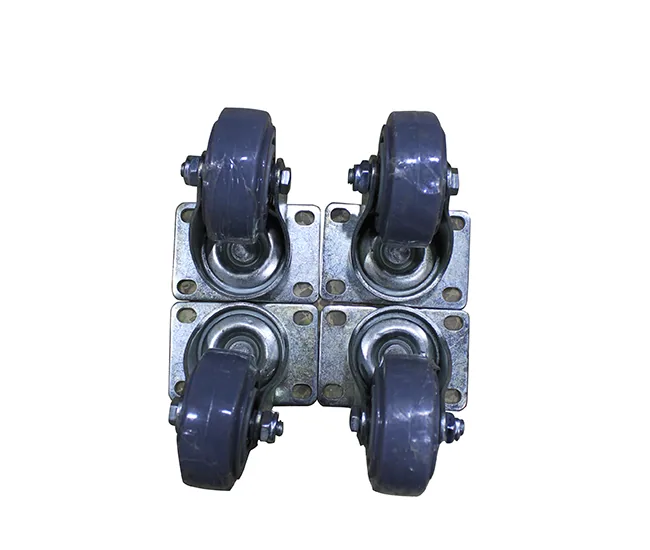

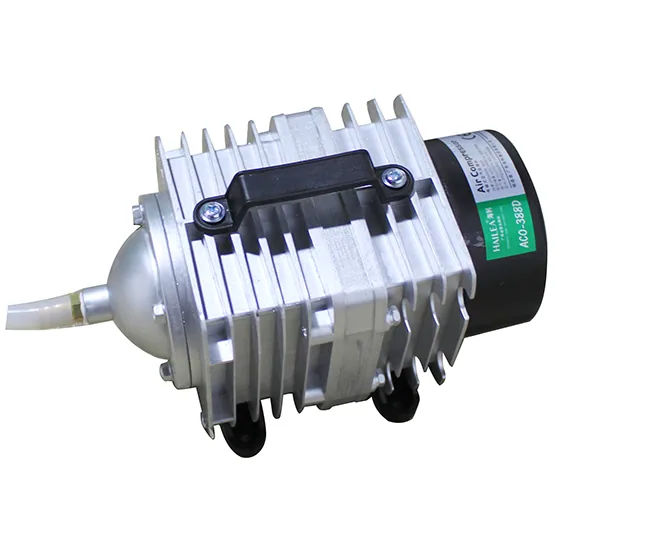

| Standard accessories | Water pump, air pump, exhaust fan, base, wheel etc | ||
| Other specifications | |||
| 360° slope engraving | Yes | ||
Key Features
- Two laser tubes and two cutting heads
- 1300 x 900 mm working area
- 60 W – 260 W per head
- Independent head offset control
- Roughly double the output of a single-head machine
Typical Applications
- Repeat production of identical parts
- Two-material cutting in one pass
- Acrylic, wood and leather processing
- Garment and textile cutting

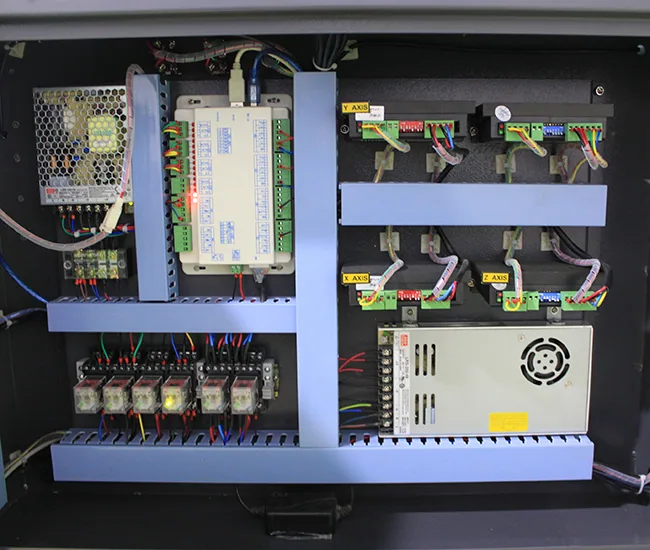

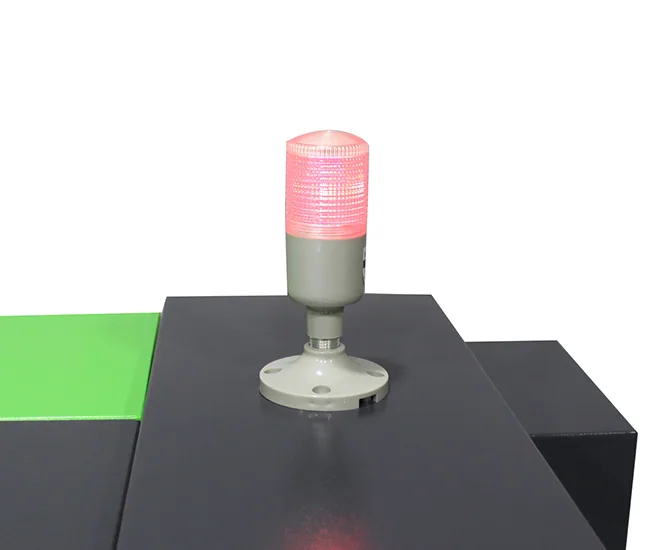

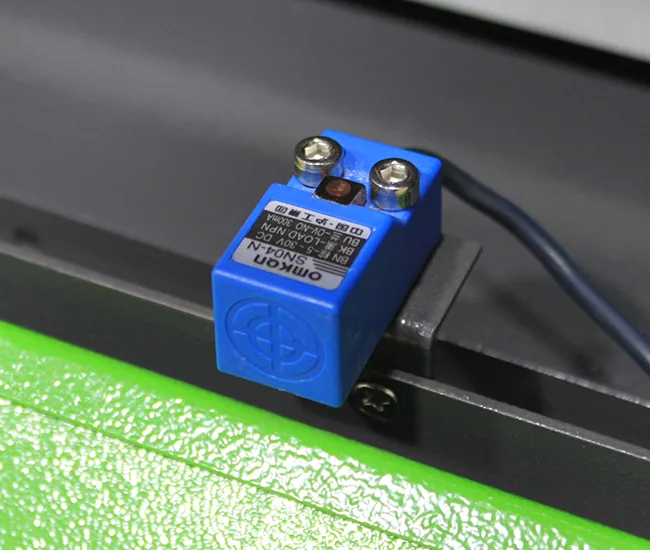

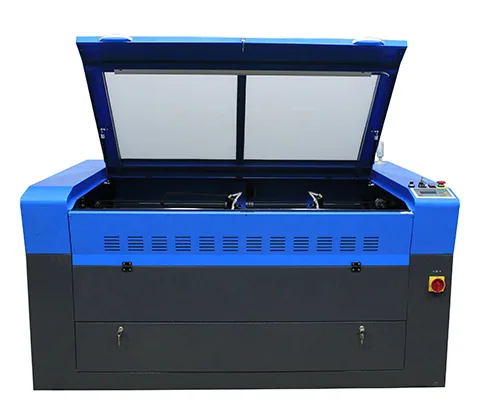

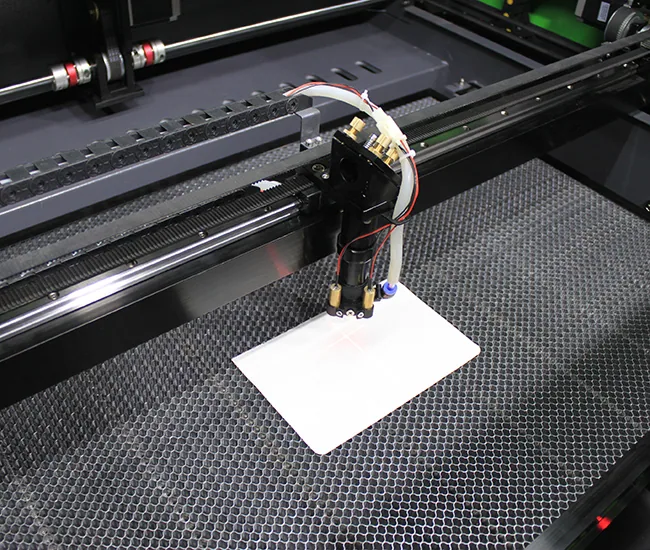

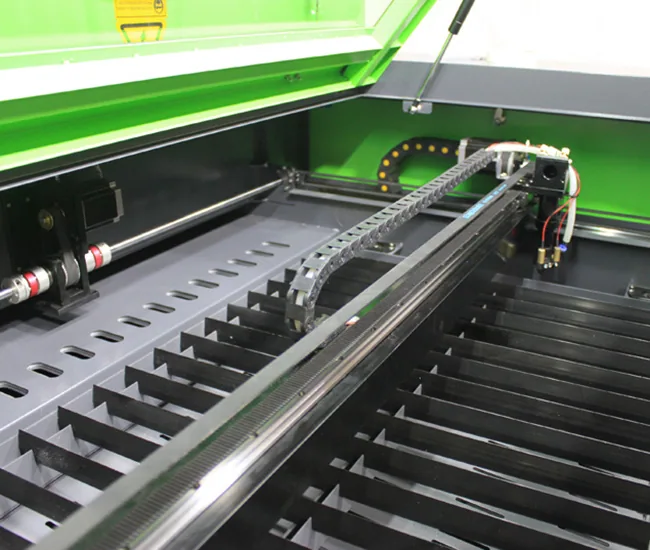

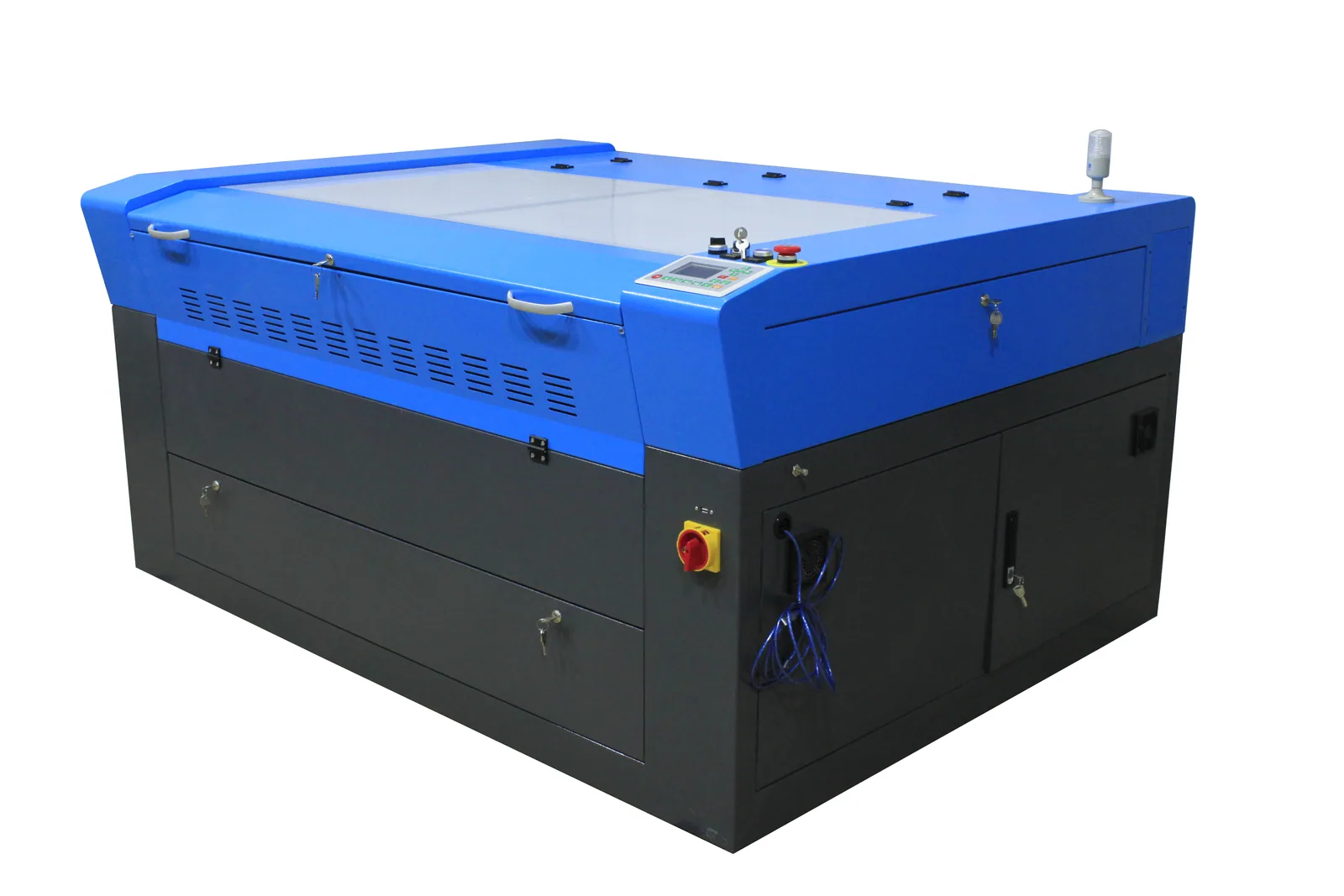

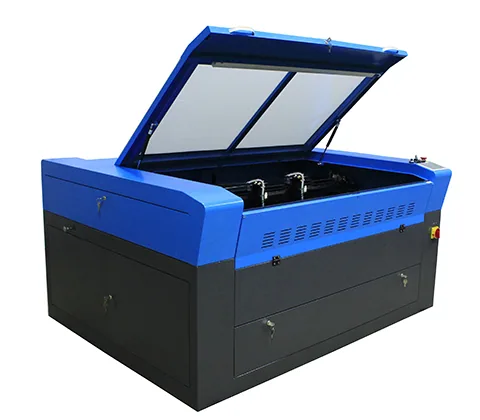

Machine Details

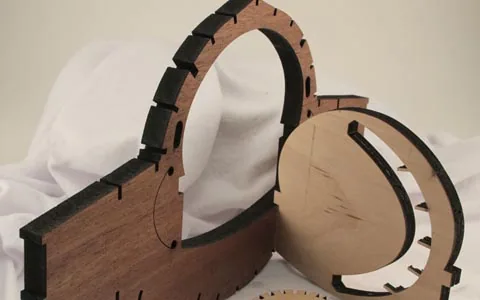

Sample Work

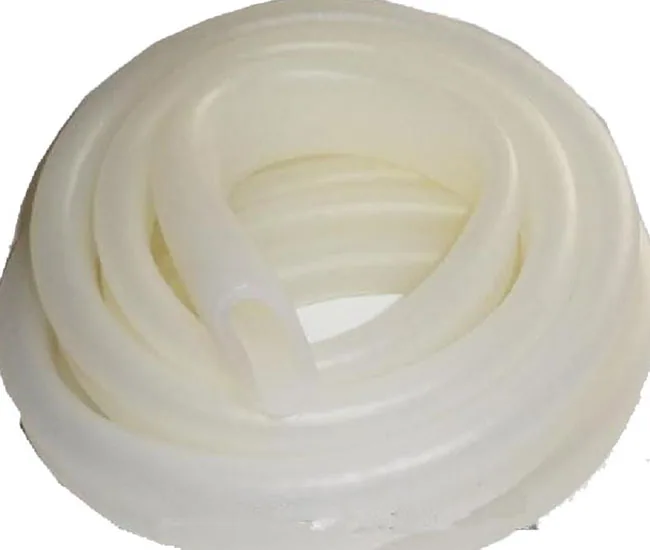

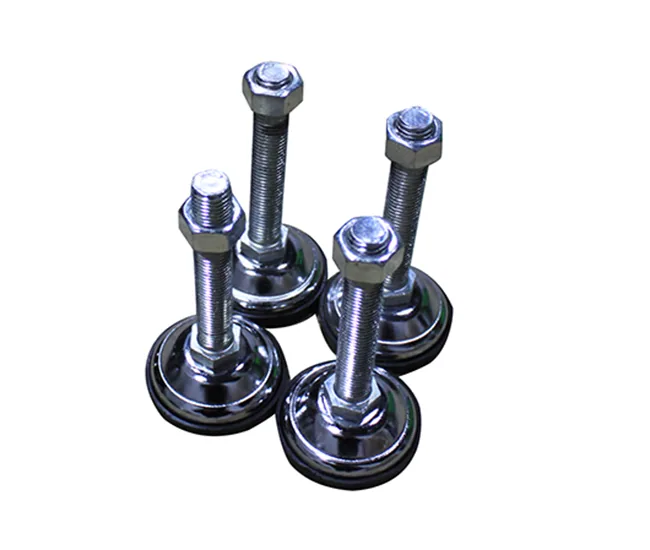

Standard Accessories
