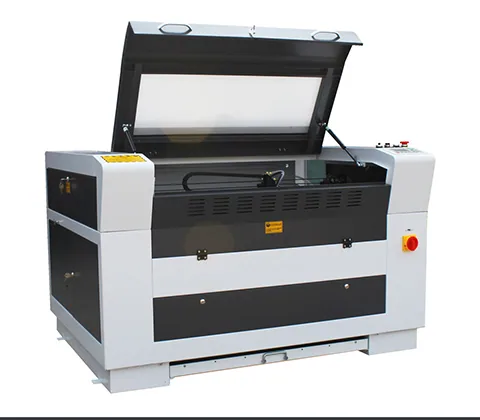

CCD Camera Laser Machine
CCD camera positioning turns this CO2 laser cutter into a contour-cutting system for printed and patterned materials - trademarks, woven labels, garment leather and toys. Working area up to 1600 x 1000 mm with 60W-260W laser power.
Overview

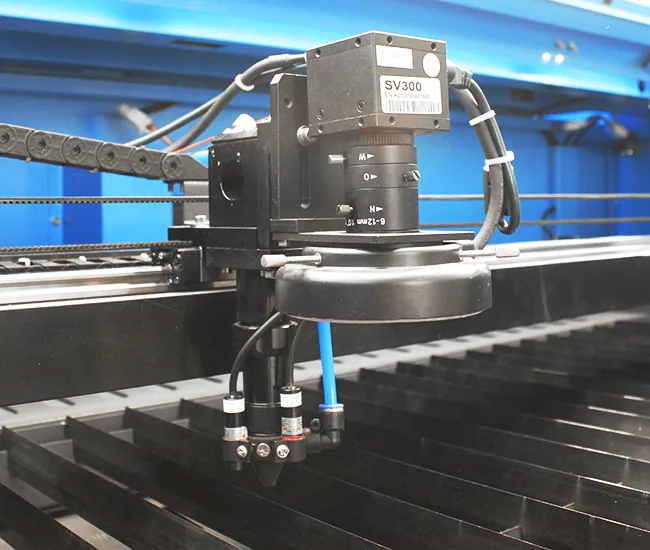

The PL-1610 adds a CCD camera to the cutting head, which lets the machine find printed outlines and cut along them rather than following a fixed program. It is the model to choose when the material already carries a pattern — a printed logo, a woven label, a garment panel — and the cut has to land exactly on it.
Working area reaches 1600 x 1000 mm, and CO2 laser power is selectable from 60 W to 260 W depending on the material. Engraving runs to 75,000 mm/min and cutting to 40,000 mm/min, so throughput stays high even on thin flexible stock.
Technical Specifications
| Machine configuration | |||
| Model | PL-1390 | PL-1612 | PL-1610 |
|---|---|---|---|
| Working area | 1300 × 900 mm | 1600 × 1200 mm | 1600 × 1000 mm |
| Laser source and optics | |||
| Laser power | 60 W / 80 W/ 100 W / 120 W / 150 W / 180 W / 260 W | ||

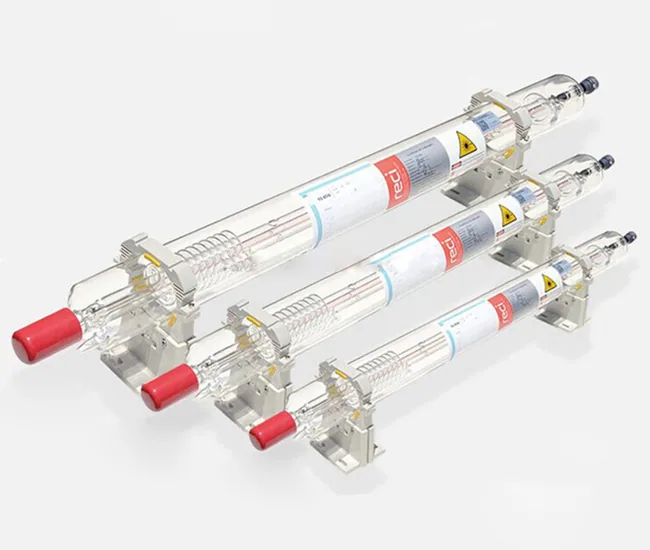

| Laser source type | Hermetic and detached CO₂ laser tube | ||
| Laser power control | 1–100 % control panel and software setting | ||
| Cutting and engraving performance | |||
| Engraving speed | 0–75,000 mm/min | ||
| Cutting speed | 0–40,000 mm/min | ||
| Minimum character size | English 1 × 1 mm | ||
| Positioning accuracy | ≤0.01 mm | ||
| Repeatability | 0.01 mm | ||
| Max scanning resolution | 50–1000 DPI | ||
| Motion and drive | |||
| Drive system | Stepper | ||
| Control and software | |||
| Bundled software | RDworks V8 | ||
| Compatible CAD/CAM software | CorelDraw, AutoCAD, Photoshop | ||
| Interface languages | English, Spanish, Portuguese, French, Turkish, German, Korean, Russian etc, convenience of operation control. | ||
| Control system compatibility | Windows 98/ME / 2000/XP/Vista / 2007 | ||
| Supported file formats | BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc | ||
| Power, cooling and environment | |||
| Power supply | AC 220 V (or 110 V) / 50–60 Hz | ||
| Ambient temperature | 0–45 °C | ||
| Ambient humidity | 5–95 % | ||

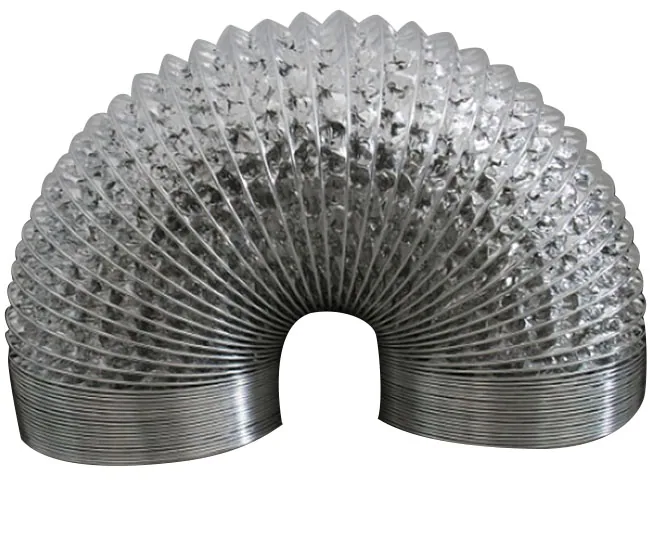

| Extraction and auxiliary | Exhaust fan and Exhaust pipe | ||
| Cooling | Water-cooling and protection system | ||
| Accessories and options | |||

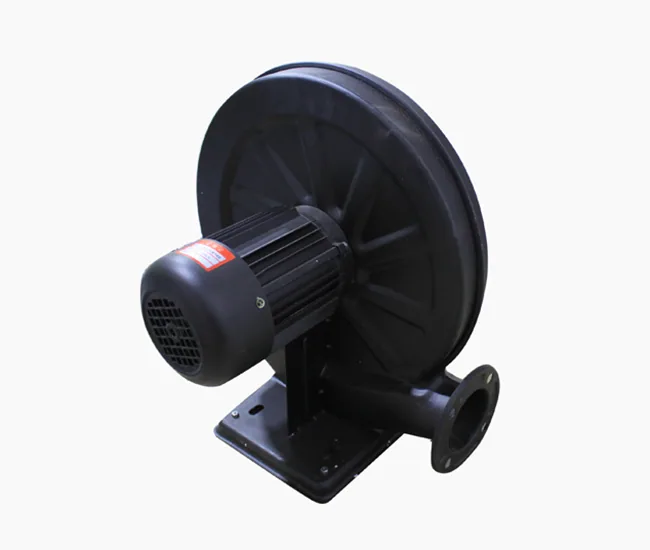

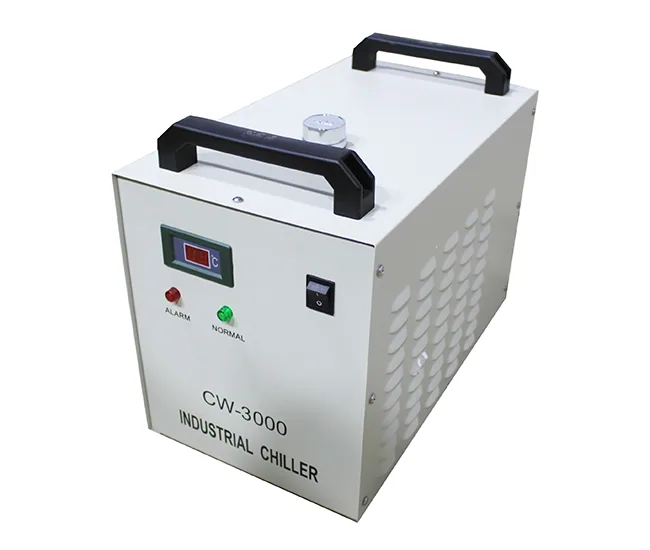

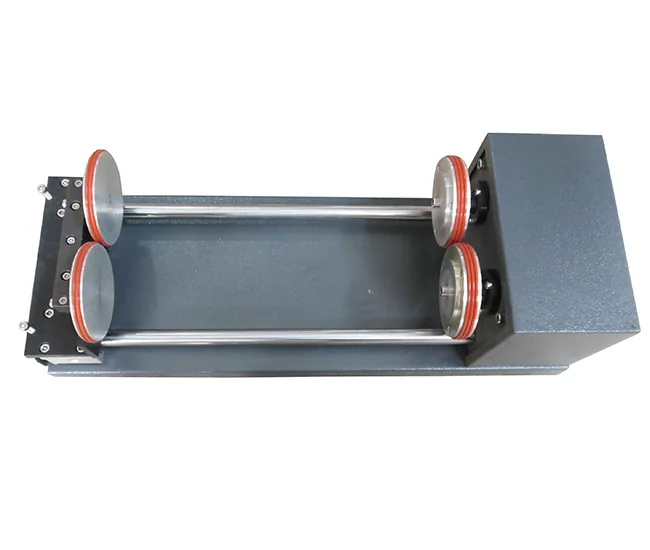

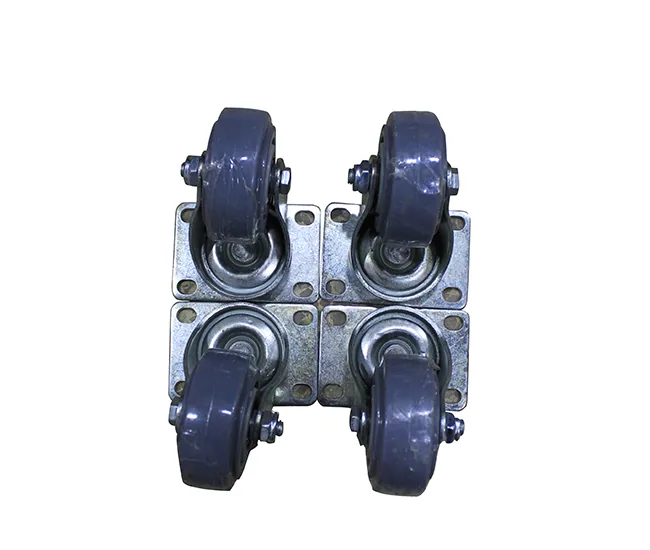

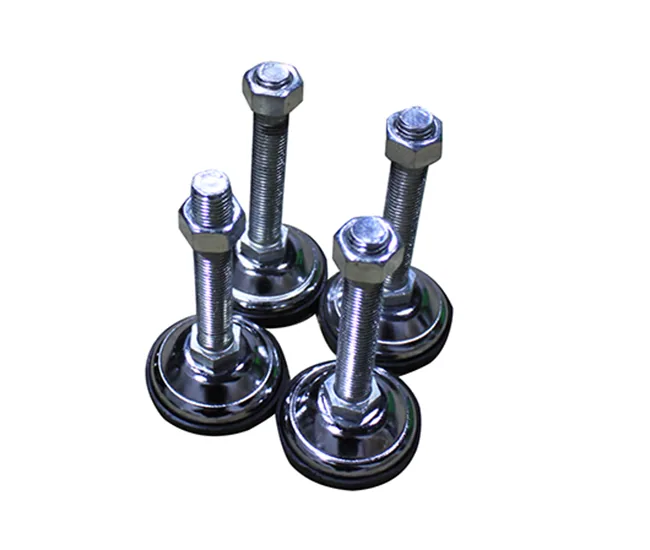

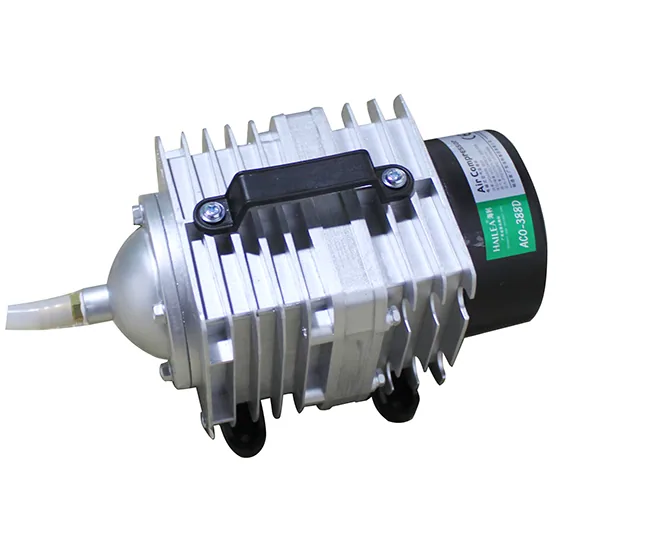

| Standard accessories | Water pump, air pump, exhaust fan, base, wheel etc | ||
| Other specifications | |||
| 360° slope engraving | Yes | ||
Key Features
- CCD camera contour recognition
- Working area up to 1600 x 1000 mm
- 60 W – 260 W CO2 laser power
- Engraving speed up to 75,000 mm/min
- Suited to printed and patterned materials
Typical Applications
- Trademarks and woven labels
- Garment leather and textiles
- Printed packaging and toys
- Sportswear panels and appliqués

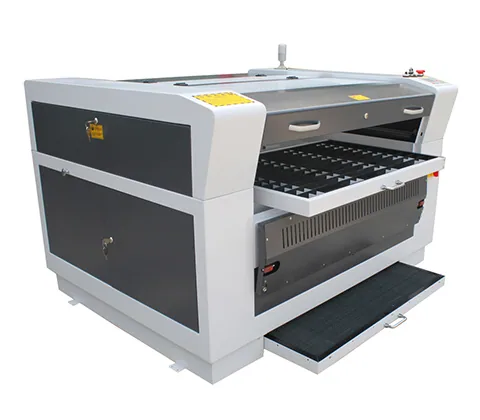

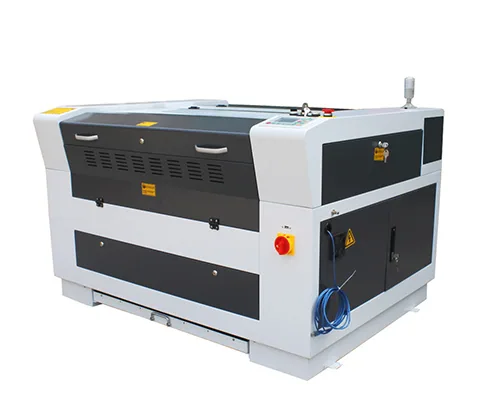

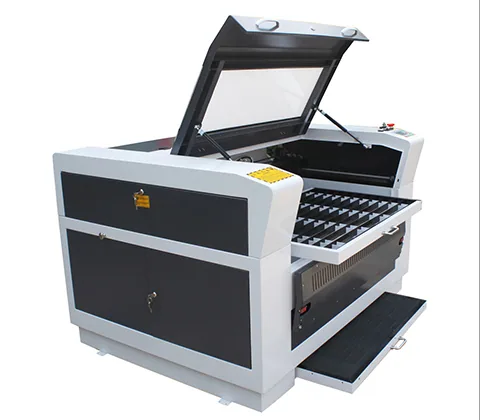

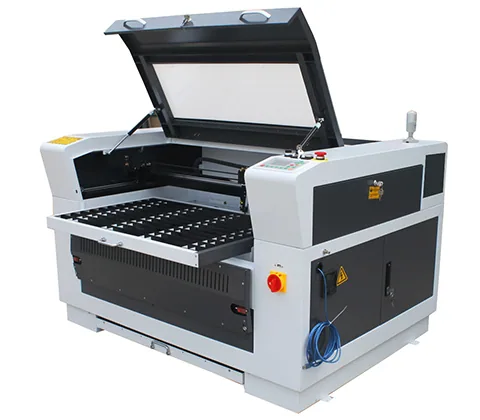

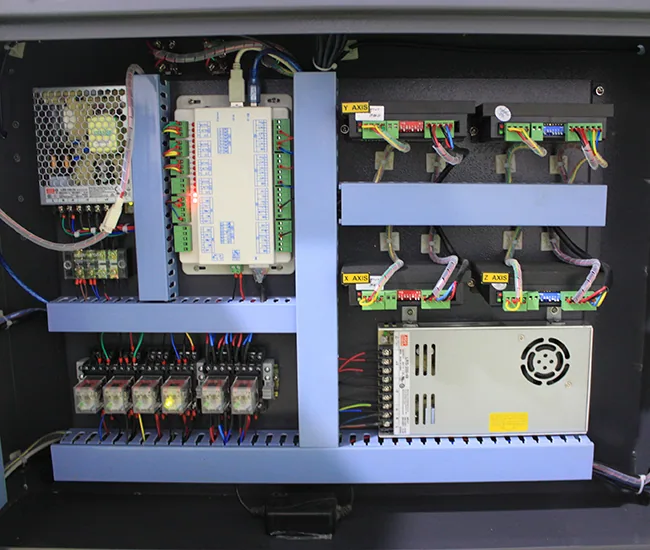

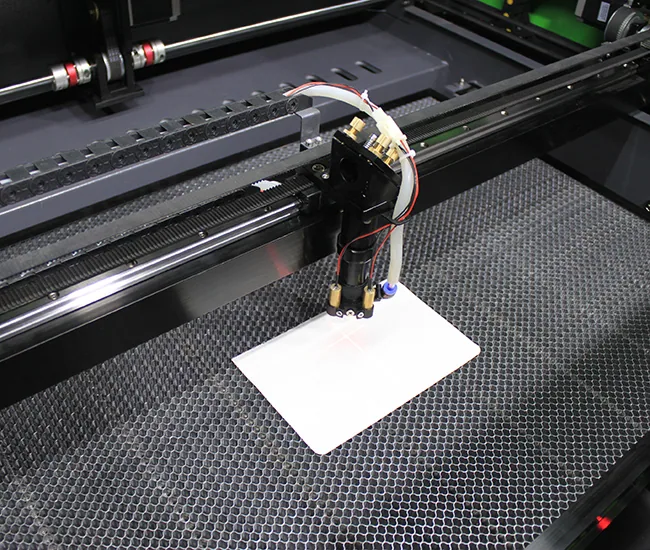

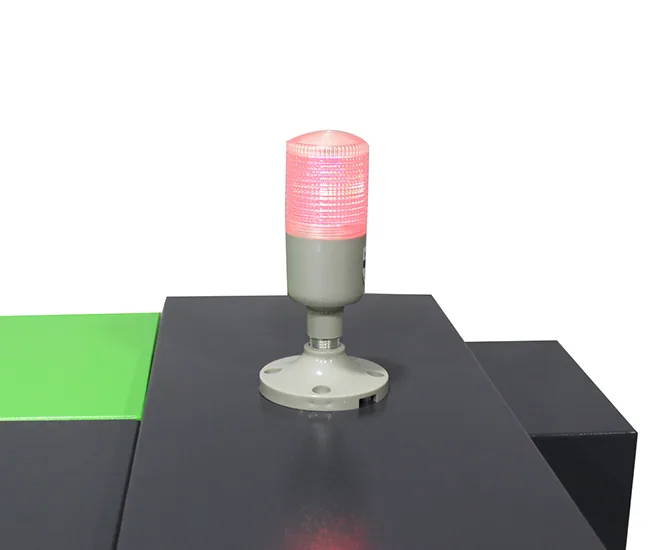

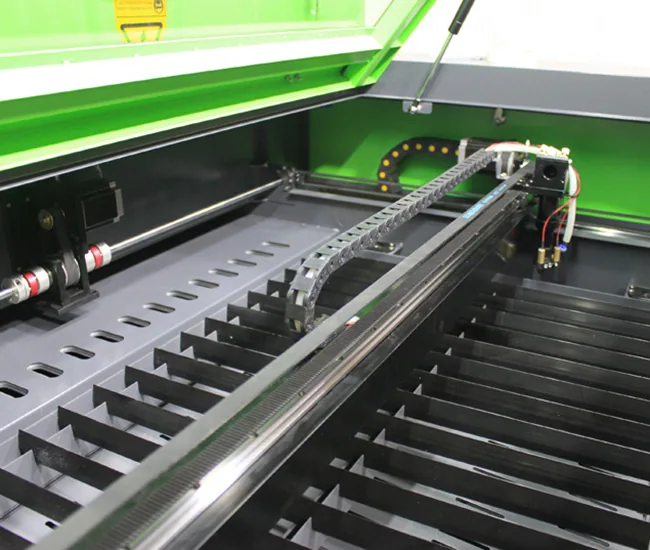

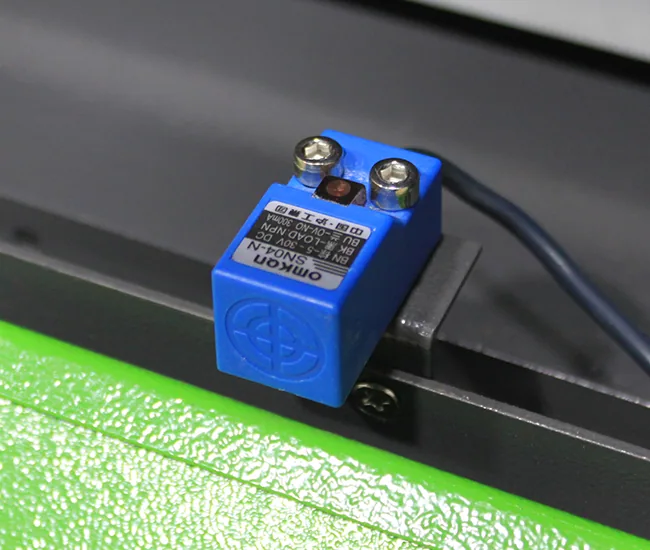

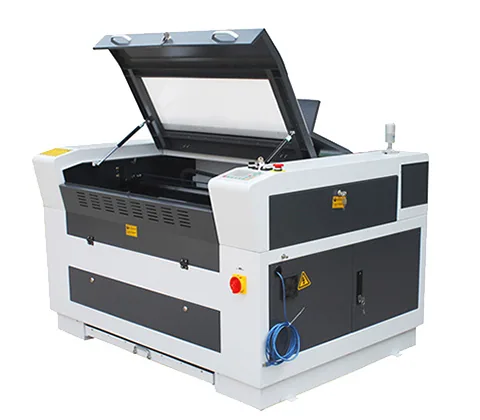

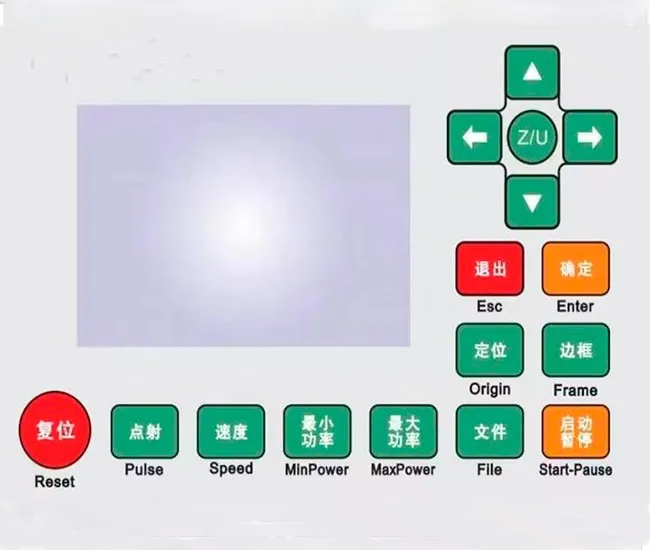

Machine Details

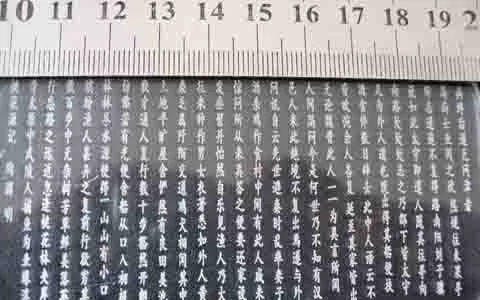

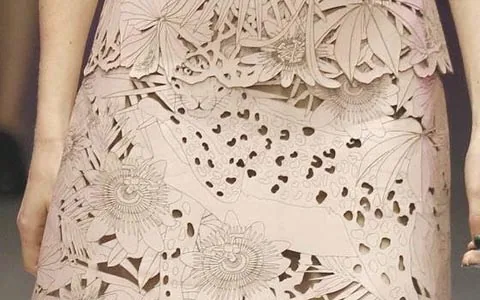

Sample Work

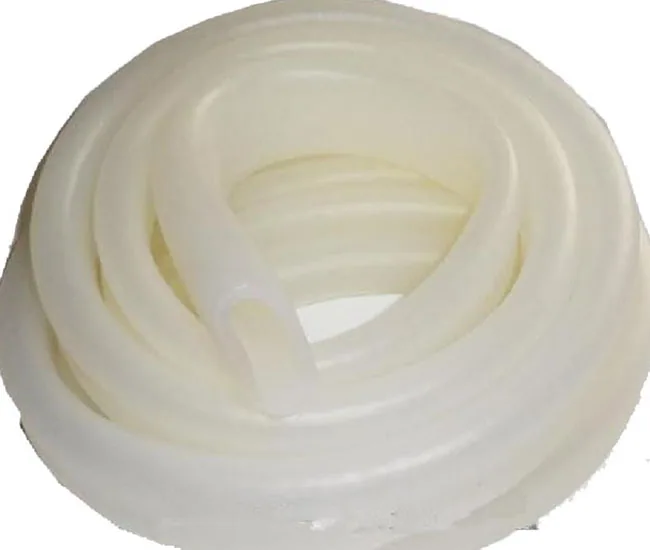

Standard Accessories
Get a Quote for the CCD Camera Laser Machine
Tell us your material, thickness and working area — we will recommend the right configuration.
Contact Our Engineers
