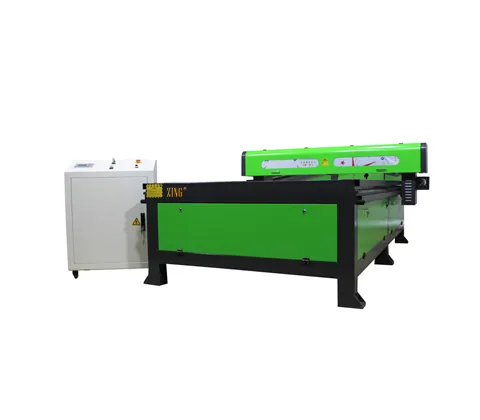

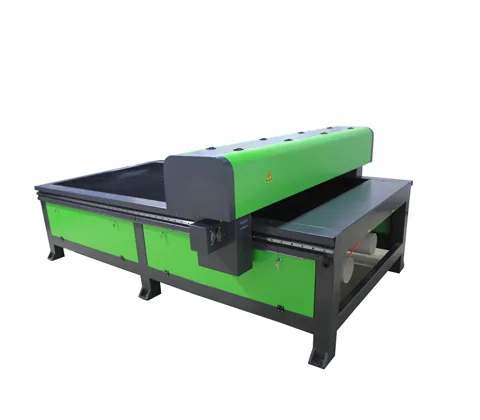

Large Scale Laser Cutting Machine
PL-1625 large-format CO2 laser cutter with a 1600 x 2500 mm bed and 60W-260W laser power, for full-sheet cutting of wood, acrylic, plastics and fabrics.
Overview
The PL-1625 extends the working area to 1600 x 2500 mm, which lets the machine take oversized sheets and longer components that will not fit a standard 1390 bed. Laser power runs from 60 W to 260 W, so the same machine handles both thin fabrication and thicker profiling work.
A flatbed structure supports the full sheet without sagging in the middle, and the CO2 laser tube is a hermetic, detached type for easier replacement. It is the model for workshops that regularly cut large panels rather than small parts.
Technical Specifications
| Machine configuration | |||
| Model | PL-1320 | PL-1325 | PL-1625 |
|---|---|---|---|
| Working area | 1300 × 2000 mm | 1300 × 2500 mm | 1600 × 2500 mm |
| Laser source and optics | |||
| Laser power | 60 W / 80 W / 100 W / 120 W / 150 W / 180 W / 260 W | ||

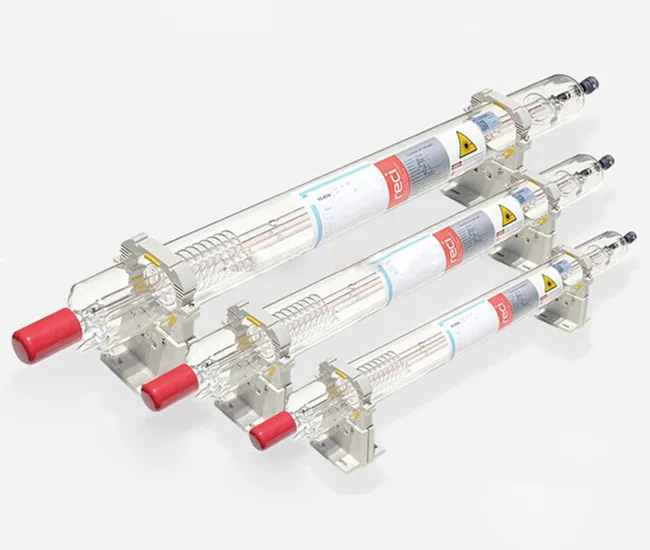

| Laser source type | Hermetic and detached CO₂ laser tube | ||

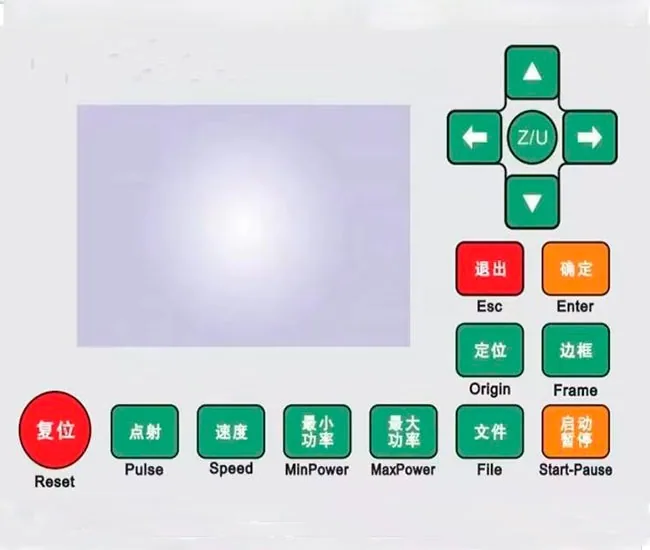

| Laser power control | 1–100 % control panel and software setting | ||
| Cutting and engraving performance | |||
| Engraving speed | 0–75,000 mm/min | ||
| Cutting speed | 0–40,000 mm/min | ||
| Minimum character size | English 1 × 1 mm | ||
| Positioning accuracy | ≤0.01 mm | ||
| Repeatability | 0.01 mm | ||
| Max scanning resolution | 50–1000 DPI | ||
| Motion and drive | |||
| Drive system | Stepper | ||
| Control and software | |||
| Bundled software | RDworks V8 | ||
| Compatible CAD/CAM software | CorelDraw, AutoCAD, Photoshop | ||
| Interface languages | English, Spanish, Portuguese, French, Turkish, German, Korean, Russian etc,convenience of operation control. | ||
| Control system compatibility | Windows 98/ME / 2000/XP/Vista / 2007 | ||
| Supported file formats | BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc | ||
| Power, cooling and environment | |||
| Power supply | AC 220 V (or 110 V) / 50–60 Hz | ||
| Ambient temperature | 0–45 °C | ||
| Ambient humidity | 5–95 % | ||

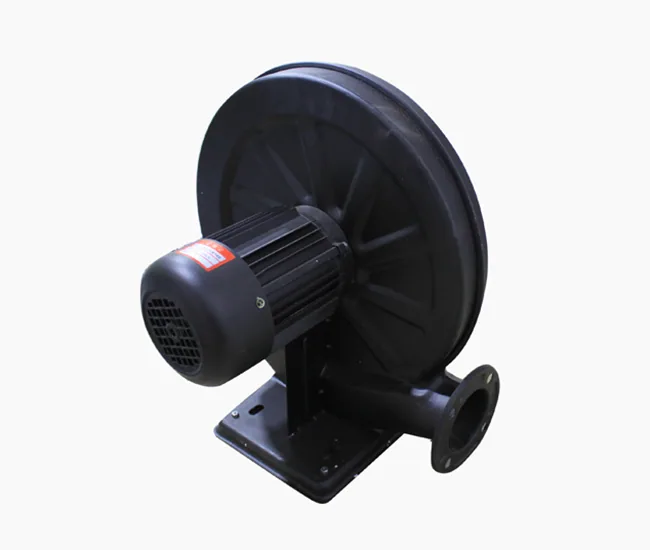

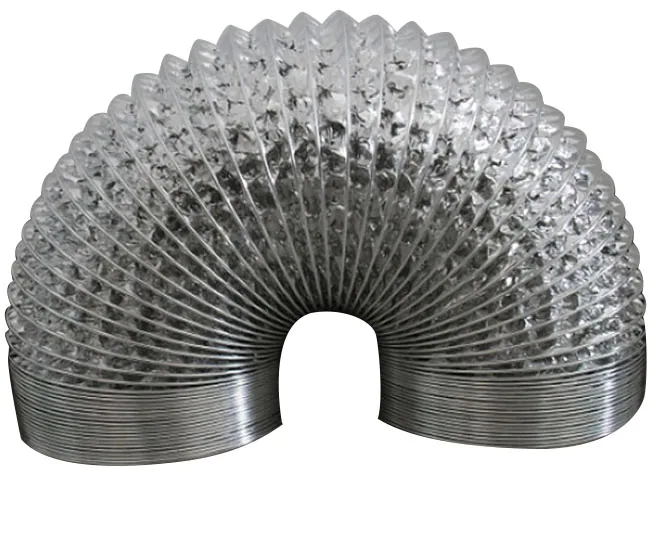

| Extraction and auxiliary | Exhaust fan and Exhaust pipe | ||

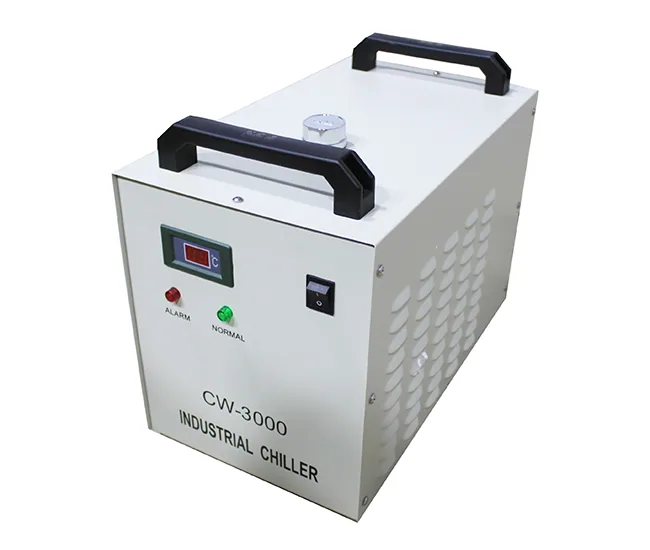

| Cooling | Water-cooling and protection system | ||
| Accessories and options | |||

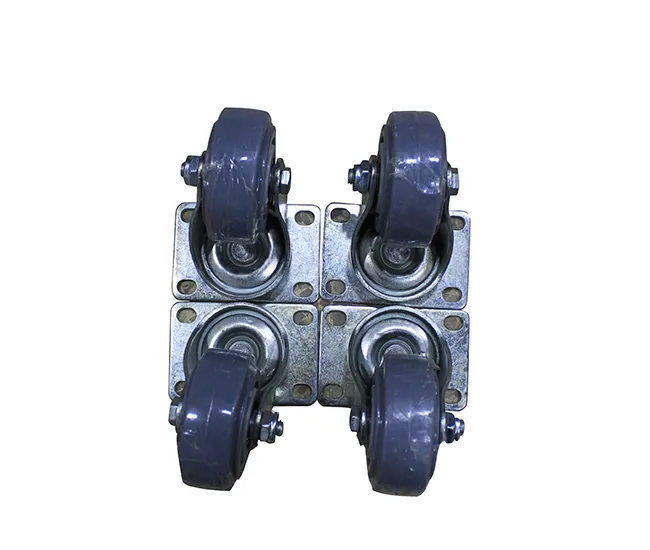

| Standard accessories | Water pump, air pump, exhaust fan, base, wheel etc | ||
| Other specifications | |||
| 360° slope engraving | Yes | ||
Key Features
- 1600 x 2500 mm working area
- 60 W – 260 W CO2 laser power
- Flatbed structure for full sheets
- Hermetic, detached CO2 laser tube
- Engraving to 75,000 mm/min
Typical Applications
- Oversized sheet cutting
- Large acrylic and signage panels
- Furniture and interior components
- Packaging prototypes

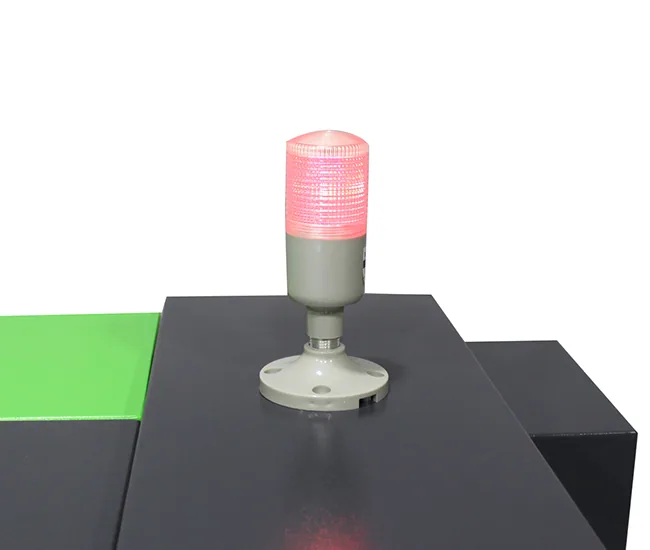

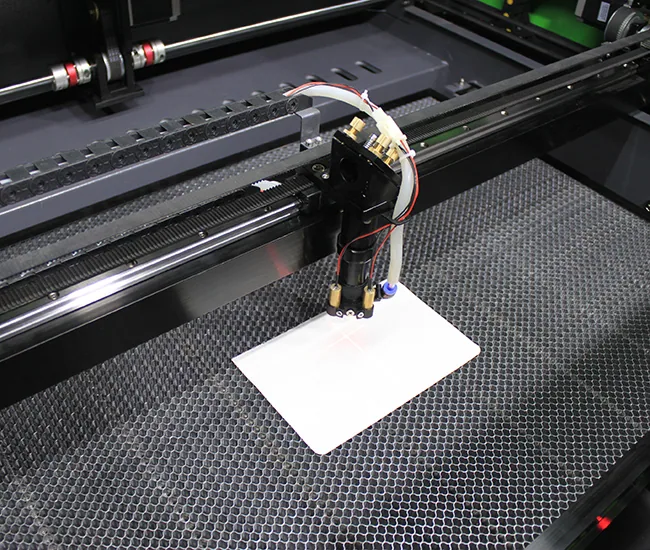

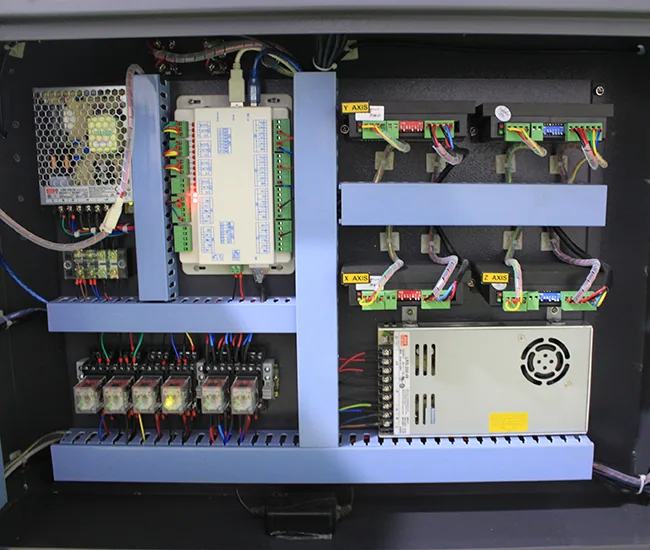

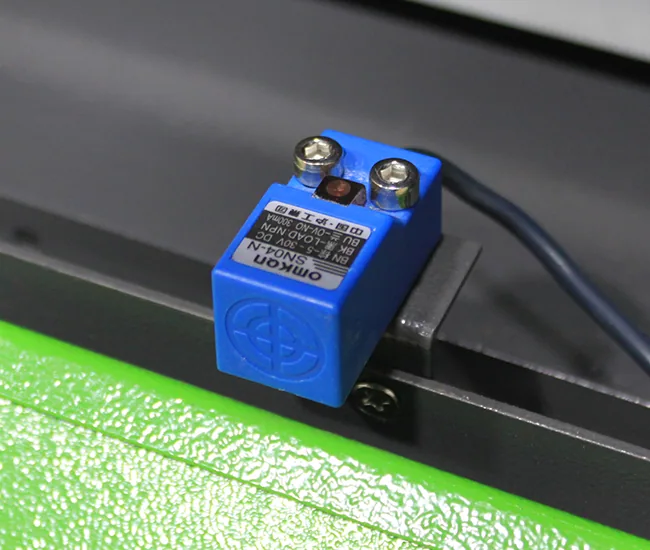

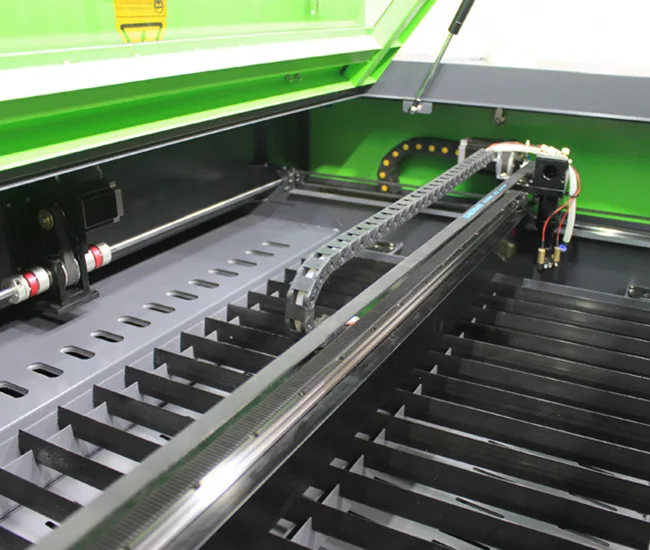

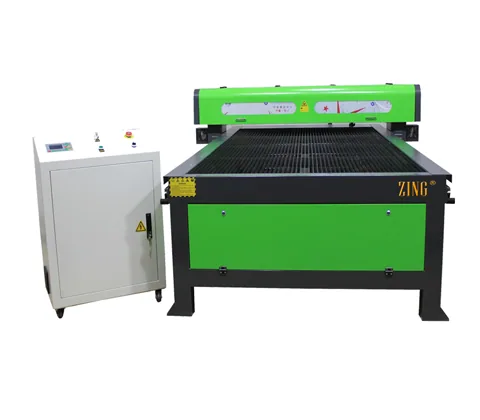

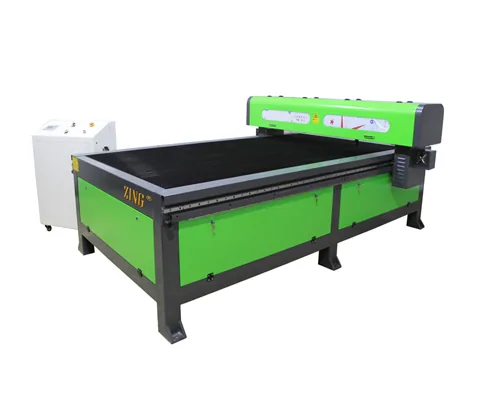

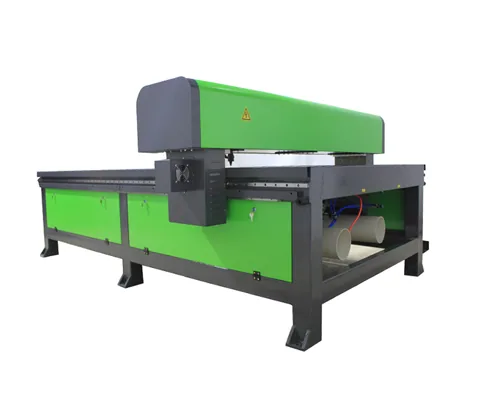

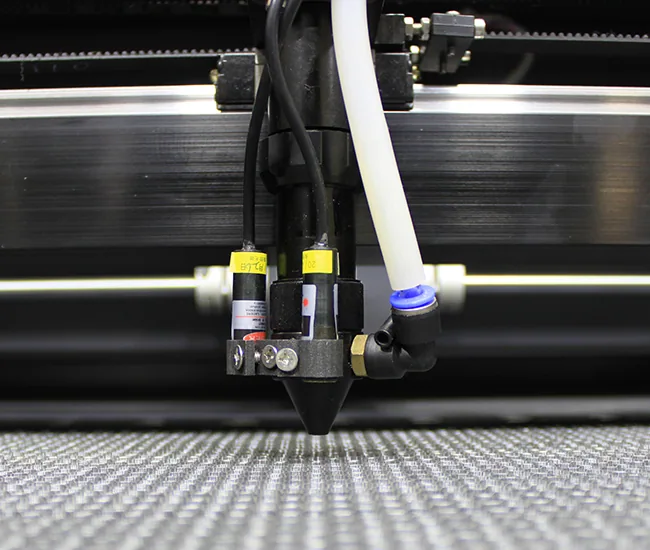

Machine Details
Sample Work

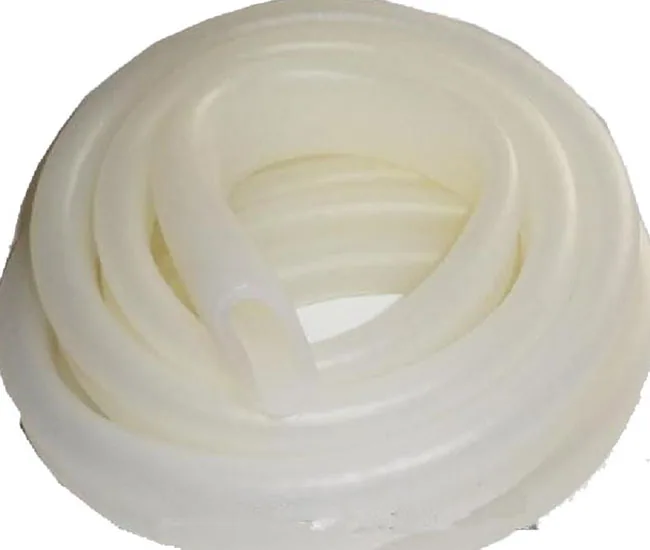

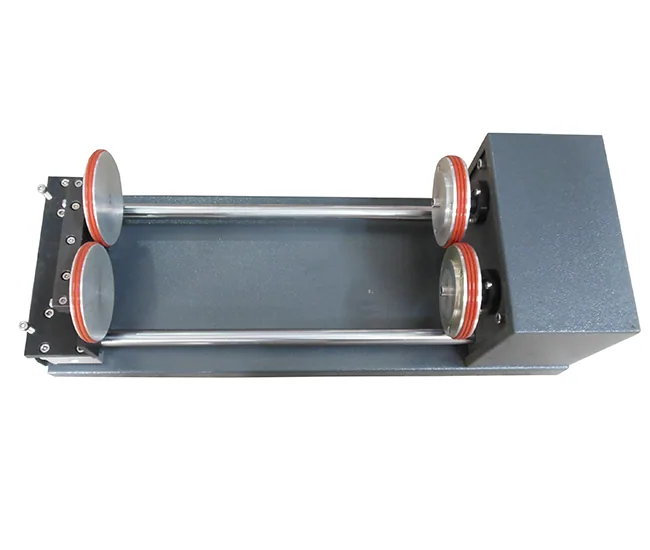

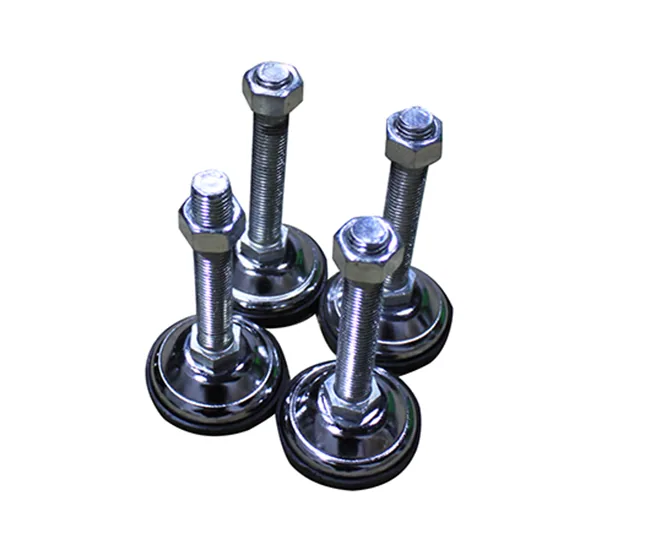

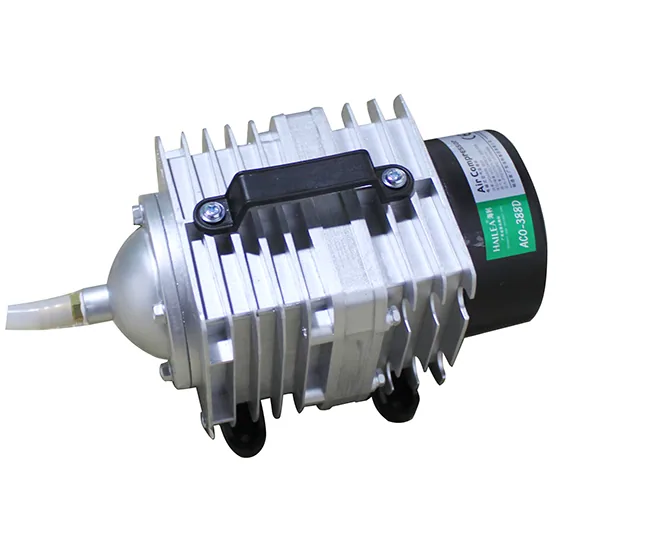

Standard Accessories
