Mini CNC Router

Name: Mini CNC Router
Brand: ProLaserCutting
SKU: mini-cnc-router-pl-3030

PL-3030 desktop CNC router with a 300 x 300 mm working area and 1.5 kW water-cooled spindle - 0.05 mm positioning accuracy in a portable frame.

Request a Quote Technical Specs

Overview

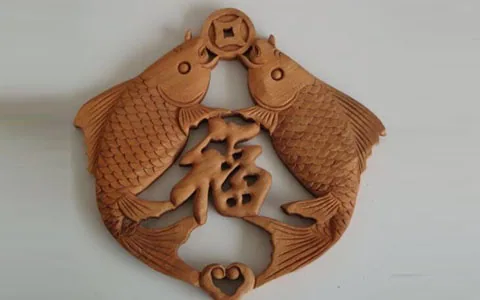

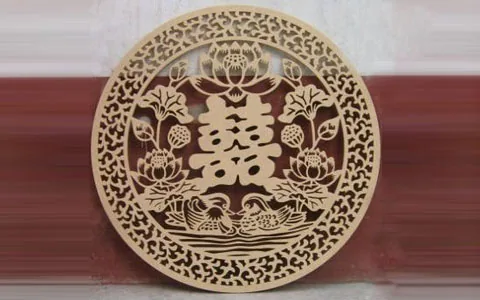

The PL-3030 is a desktop-size CNC router with a 300 x 300 mm working area and a 350 x 350 mm table. A 1.5 kW water-cooled spindle and precision square rails hold 0.05 mm positioning accuracy, which is enough for small moulds, nameplates and detailed engraving.

Z travel runs beyond 100 mm and the steel channel frame keeps the machine stable without a large footprint. Control can be run from a standard handset or, as an option, a Weihong controller for users who want a PC-based workflow.

Technical Specifications

Machine configuration
Model	PL-3030
Working area (X × Y)	300 × 300 mm
Z-axis travel	＞ 100 mm
Table size	350 × 350 mm
Frame	Steel structure
X/Y/Z structure	Round orbit Ball screw (Y axis double nuts)
Packaging	P lywood
Cutting and engraving performance
Working accuracy	0.05 mm
Repeatability	0.05 mm
Motion and drive

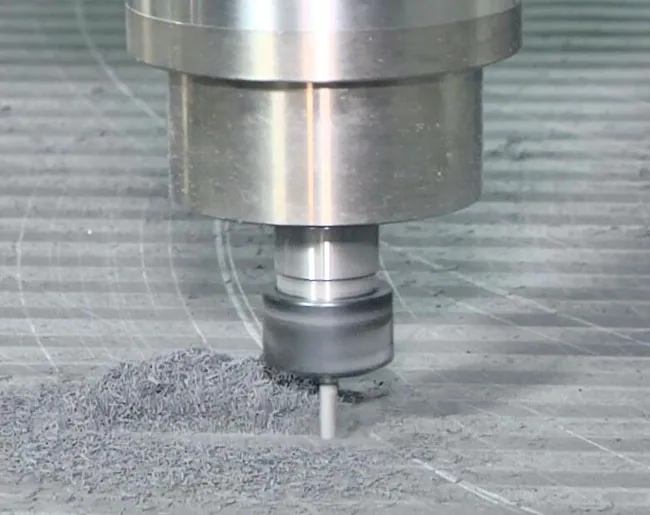

Spindle power	1.5Kw water cooling spindle
Spindle speed	0–24000RPM

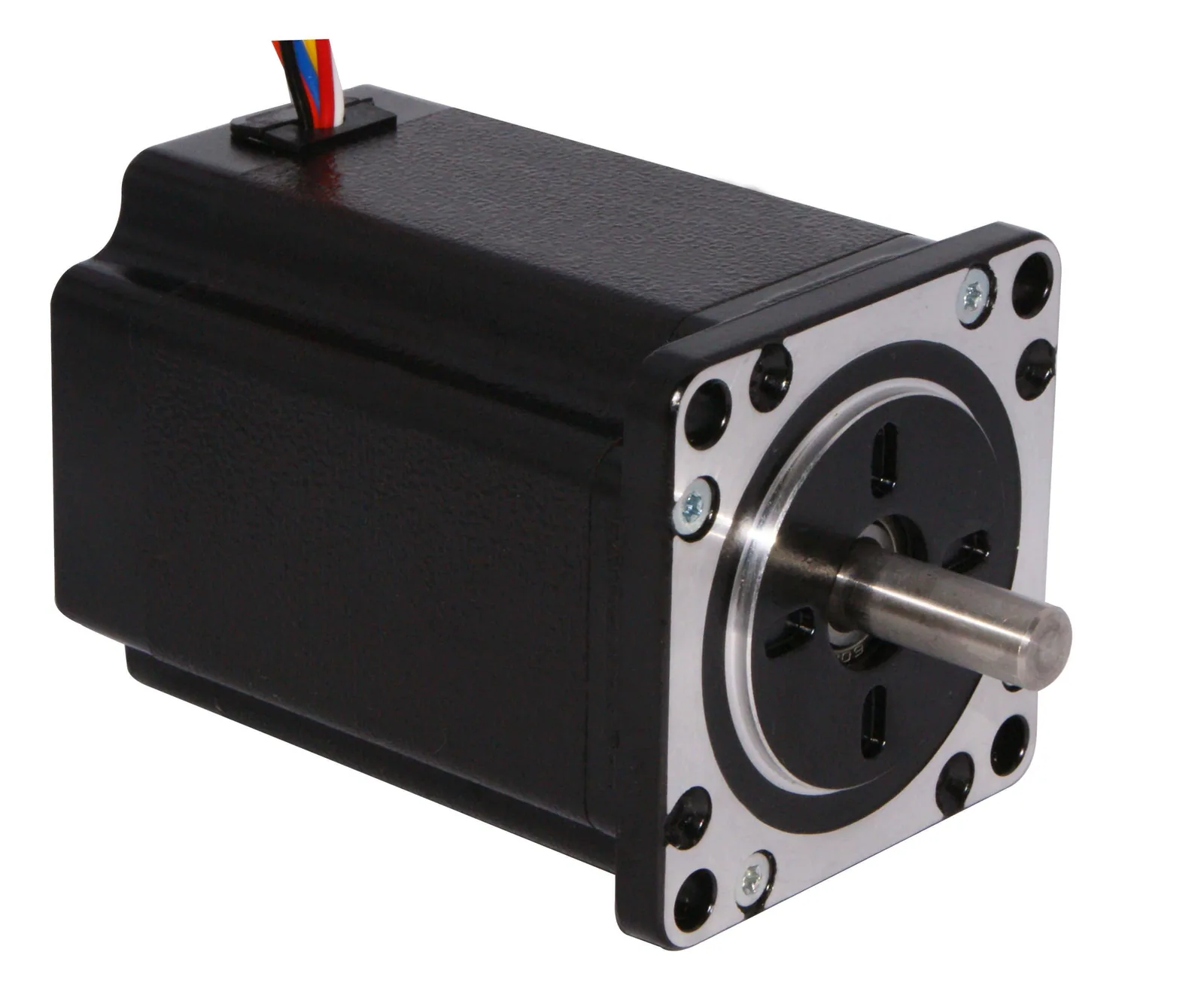

Drive motors	Stepper system
Control and software
Command language	G code
Control system compatibility	Computer control
Operating environment	Temperature: 0–45 Relative humidity: 30 % ~ 75 %
Software environment	Windows98 / 2000/xp
Power, cooling and environment
Power supply	300w

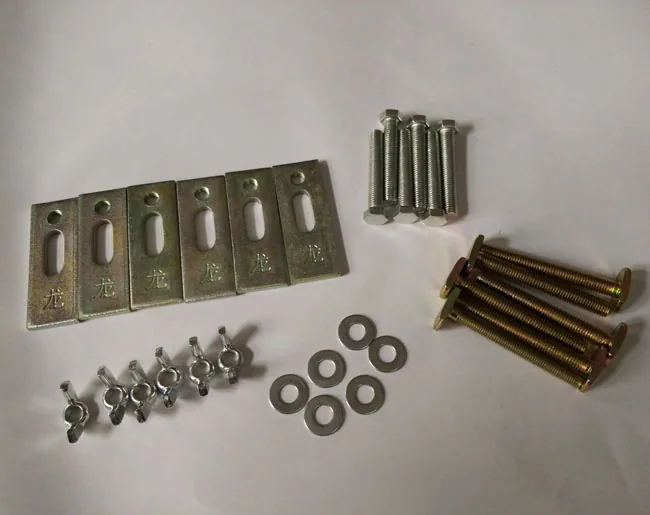

Accessories and options

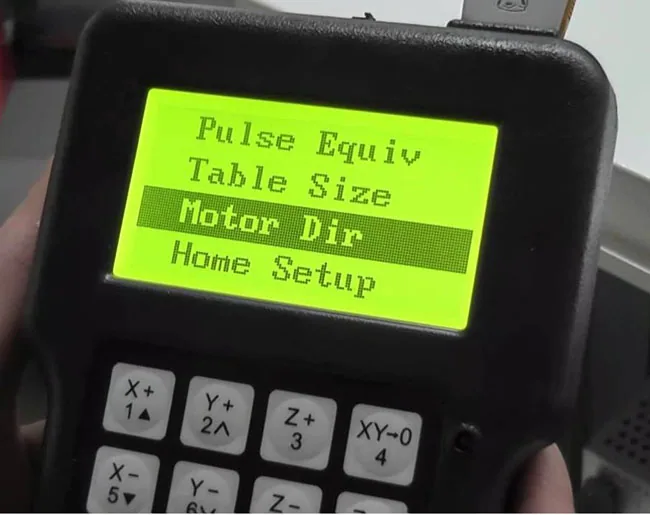

Options	DSP handle control system (with USB connection) X,Y,Z axis change to Taiwan import Hiwin square orbit C hange Y axis to square orbit Change to 2.2KW (220 V) Flume
Other specifications
Max.Speed	4m~5.5 m/min
