ATC CNC Router
Automatic tool-change CNC router with a 6-position tool magazine, so cutters swap without operator intervention. Working area 1300 x 2500 x 200 mm, 60 m/min rapid traverse, seamless welded steel frame and Taiwan linear guide rails.
Overview
The PL-M25H carries a six-position tool magazine, so the machine swaps cutters automatically between operations instead of stopping for a manual change. That makes it practical to run a job that needs a surfacing cutter, a 3D cutter and a finishing tool in one program.
The frame is seamless-welded steel with Taiwan linear guide rails and rack-and-pinion transmission on X and Y, including dual drives on the Y axis to keep the gantry square. Z runs on a ballscrew with a 200 mm stroke. A 5 kW water-cooled spindle turns at up to 18,000 rpm, and the vacuum table holds sheet material flat without clamps.
Technical Specifications
| Machine configuration | |
| Model | PL-M25H |
|---|---|
| Working area (X × Y × Z) | 1300 × 2500 × 200 mm |
| Frame construction | seamless welding steel structure |
| X/Y structure | Taiwan linear guide rail, pinion and rack transmission (Y axis double drivers) |
| Z-axis structure | Taiwan linear guide rail, ball screw |

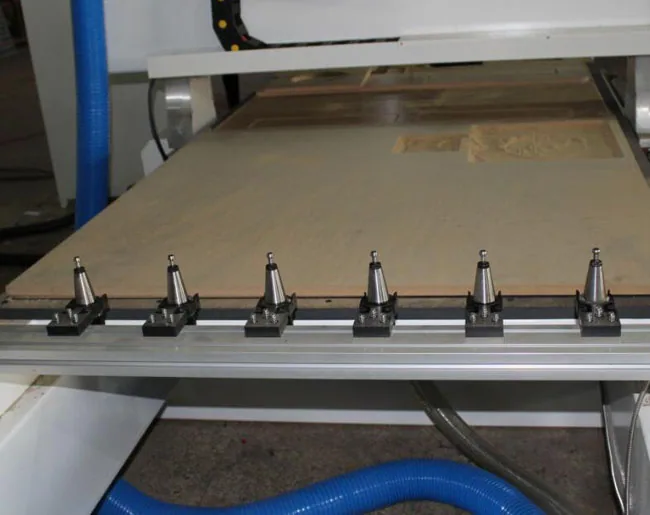

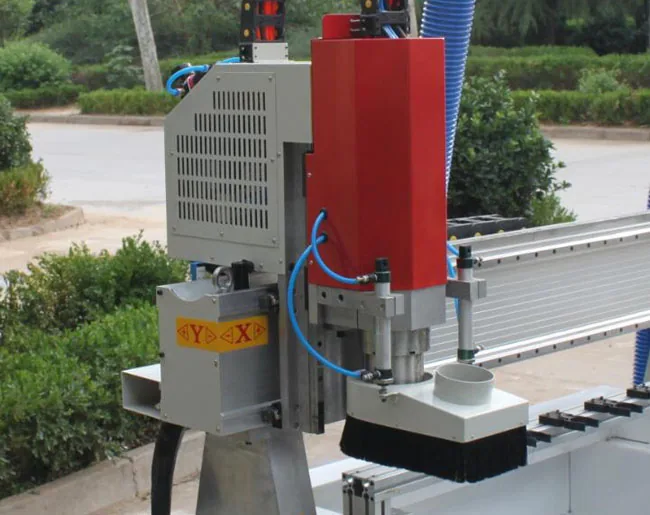

| Tool magazine capacity | Line type ATC (tools magazine capacity 6 pcs) |

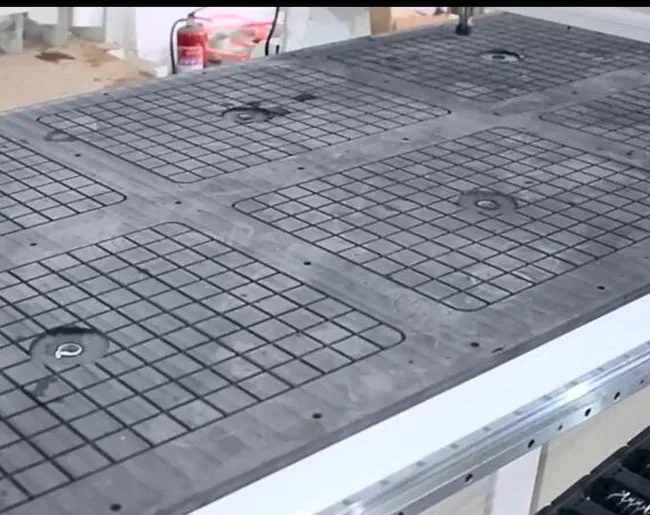

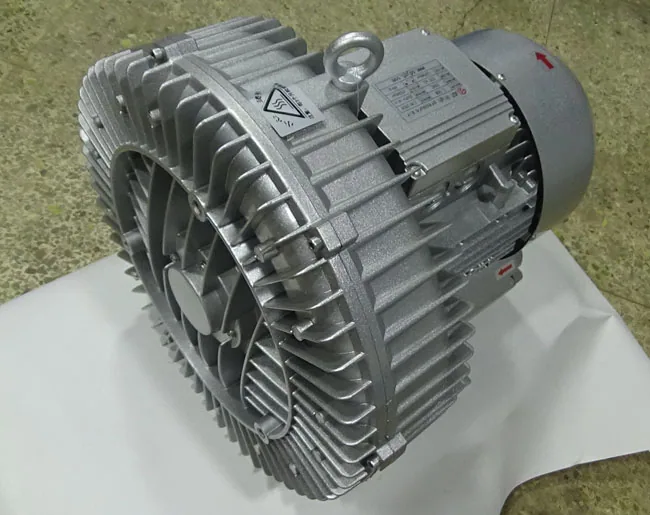

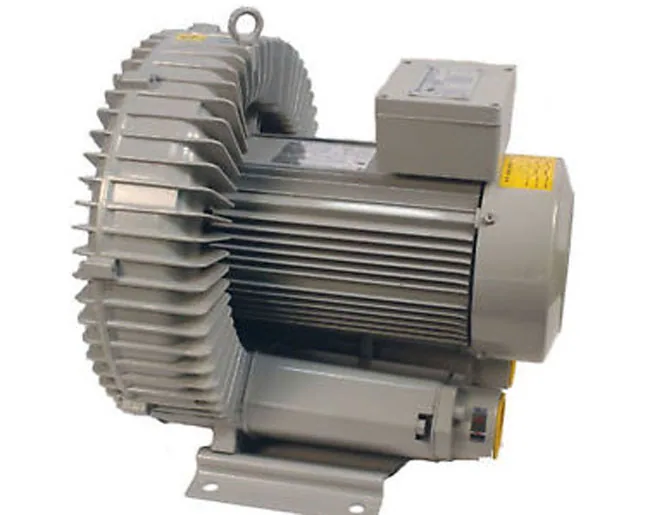

| Workholding | Vacuum system (vacuum working table and vacuum pump) |
| Motion and drive | |

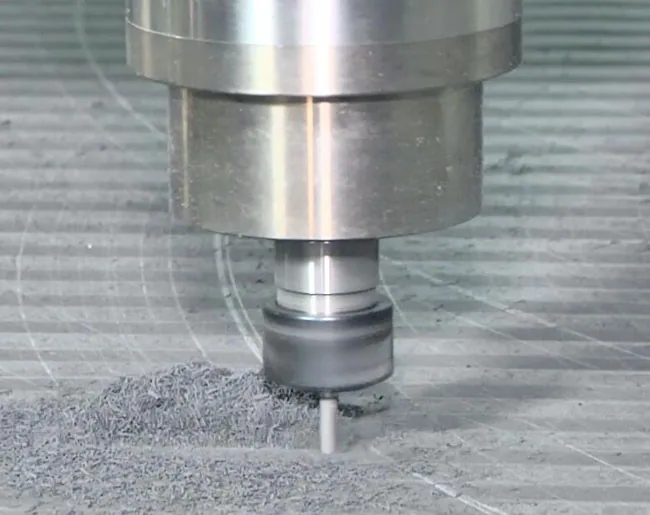

| Spindle | 5 kW water cooling spindle for ATC (Optional HSD spindle ATC) |
| Spindle speed | 18000 r/min |

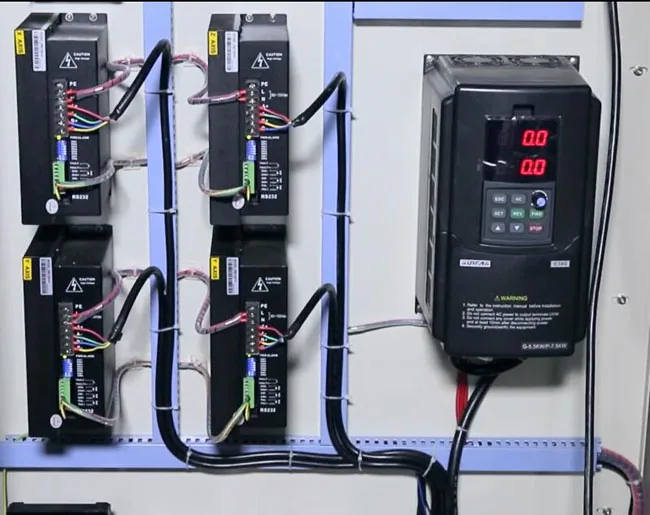

| Drive motors | Servo motor drivers (Optional Japan YASKAWA servo motor dirver) |
| Control and software | |
| Command language | HPGL, G code |

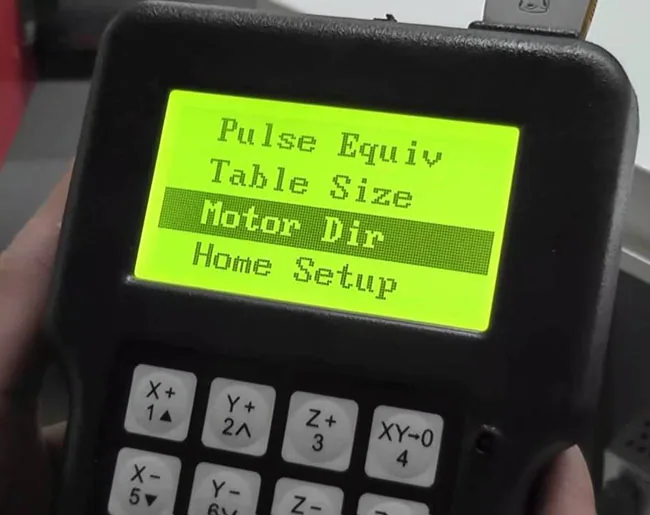

| Control system compatibility | DSP control system (Optional Taiwan SYNTEC system) |
| Power, cooling and environment | |
| Power supply | 380 V, 50 Hz / 60 Hz |

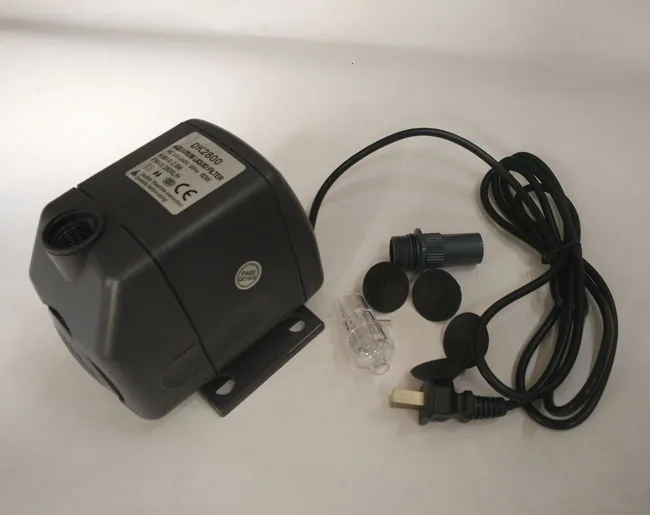

| Cooling | Water cooling |

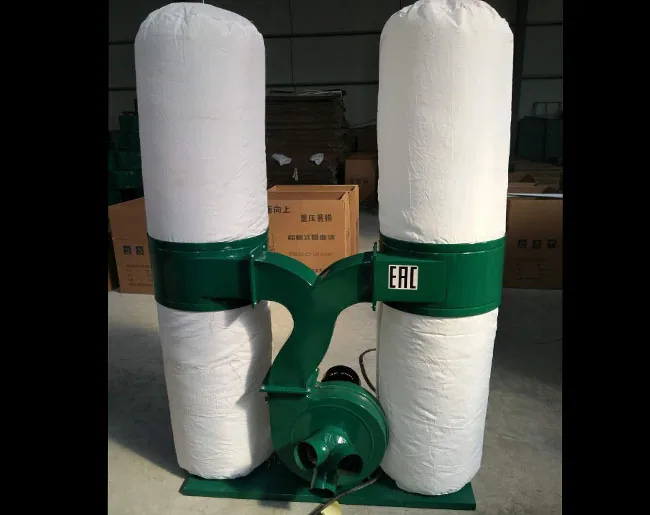

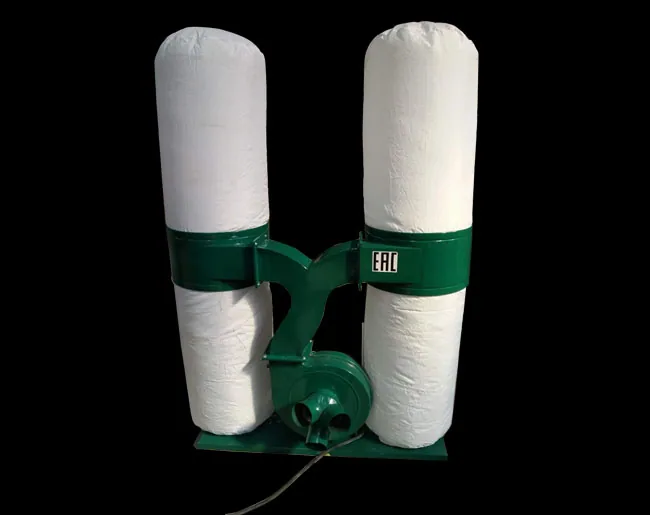

| Dust extraction | Dust collector units and dust bags and depots |
| Accessories and options | |

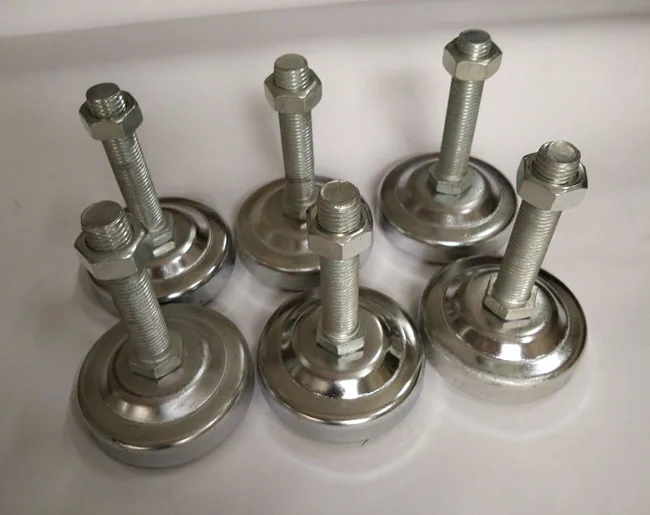

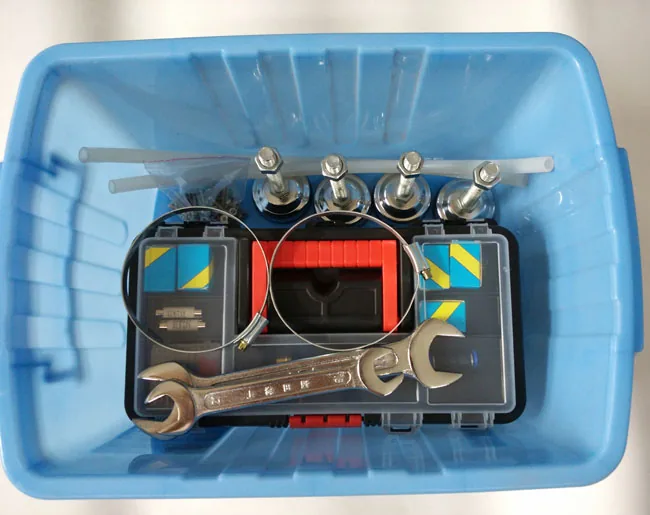

| Standard accessories | Auto tool height sensor Auto oil lubrication system |
| Other specifications | |
| Max. Speed | 60 m/min |
Key Features
- 6-position automatic tool changer
- 1300 x 2500 x 200 mm working area
- 60 m/min rapid traverse
- Taiwan linear rails, rack and pinion, dual Y drive
- 5 kW water-cooled spindle at 18,000 rpm
Typical Applications
- Cabinet and panel machining
- Solid wood and MDF furniture parts
- Composite and plastic trimming
- Sign making and 3D relief carving

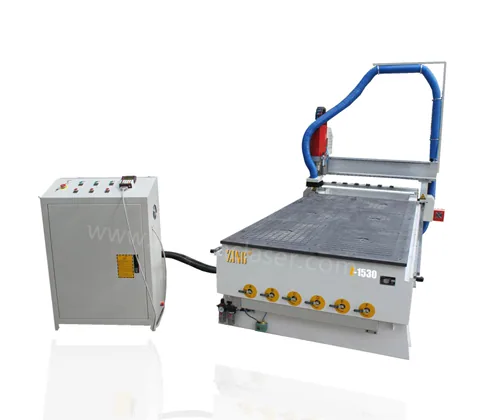

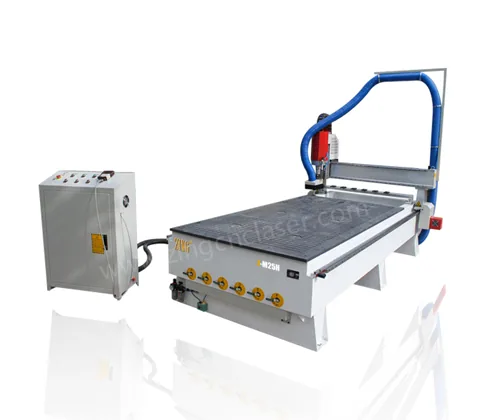

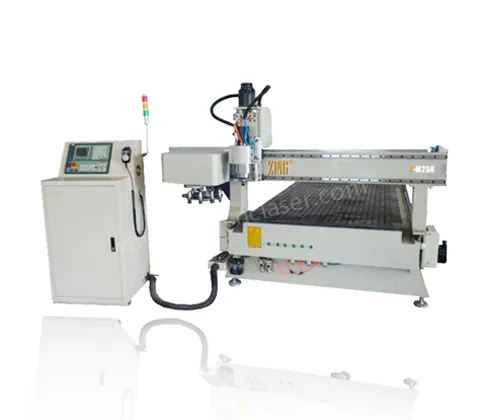

Machine Details
Sample Work

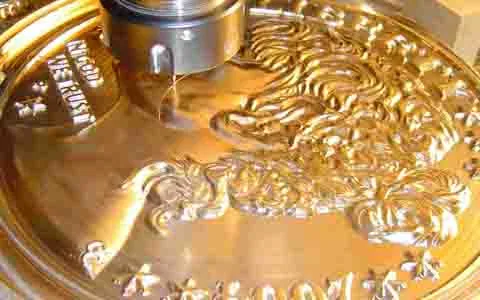

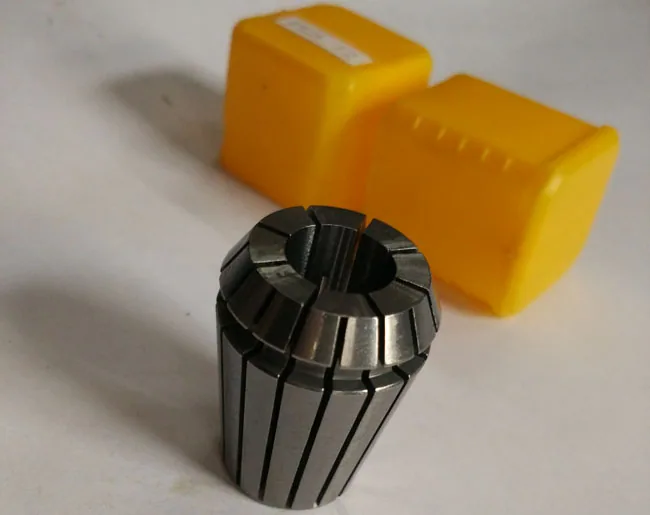

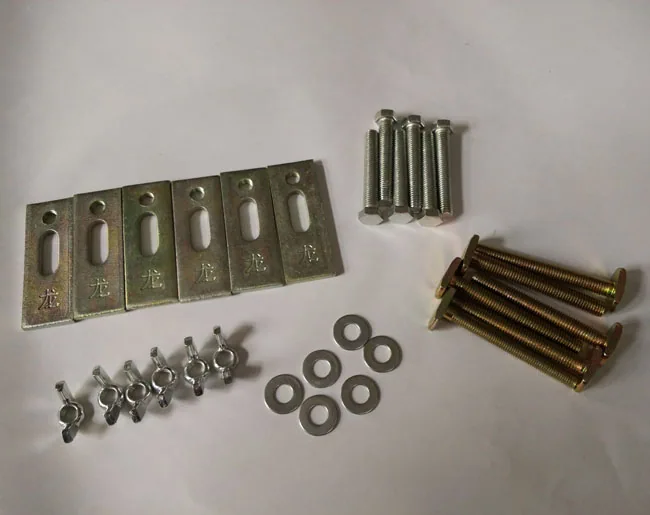

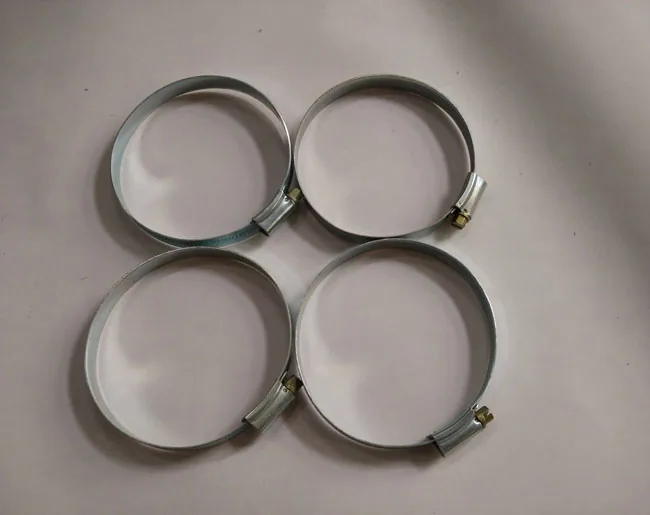

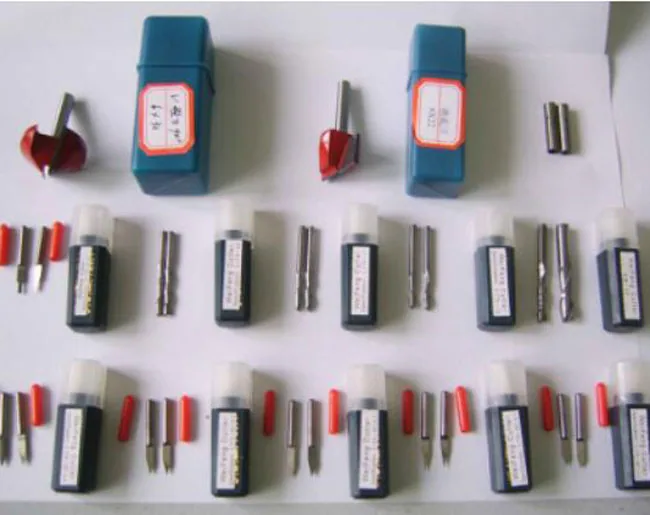

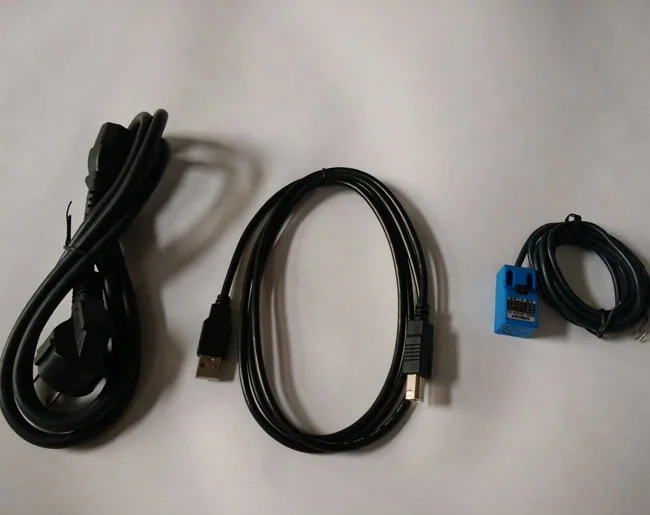

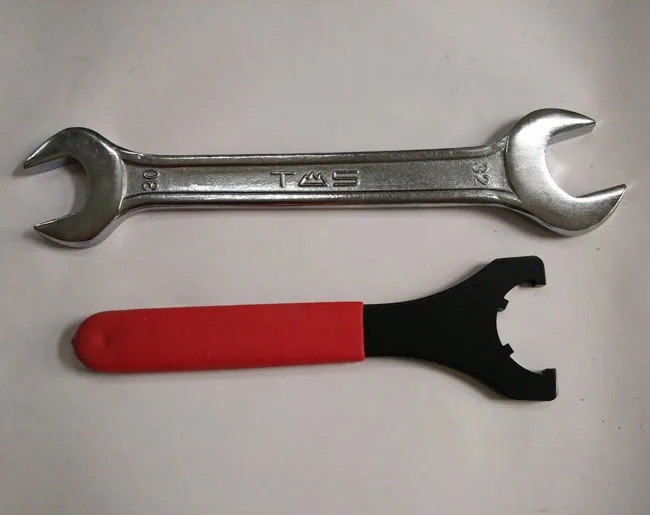

Standard Accessories
