CNC Marble Engraving Machine
The PL-1325B stone CNC router handles marble, granite and other stone on a 1300 x 2500 mm table with 200 mm Z travel. A water circulation system protects tooling during deep engraving, and the sealed steel frame keeps the gantry rigid.
Overview
The PL-1325B is a 1300 x 2500 mm router set up for stone. Z travel reaches 200 mm so the tool can follow deep relief work, and the table accepts slabs up to 1400 x 3000 mm held on mechanical clamps.
A water circulation system runs through the spindle and tool path, which keeps diamond tooling cool and controls the dust that would otherwise shorten tool life. The sealed steel frame limits gantry deflection when the cutter is loaded heavily in hard granite.
Technical Specifications
| Machine configuration | |
| Model | PL-1325B |
|---|---|
| Working area (X × Y) | 1300 × 2500 mm |
| Z-axis travel | 200 mm |
| Table size | 1400 × 3000 mm |
| Workholding | mechanical clamps |
| Frame | Groove steel structure |
| X/Y/Z structure | Three-axis square orbit, Gear-wheel driver |
| Cutters | 10 pcs(include 3D cutter and milling bottom cutter) |
| Cutting and engraving performance | |
| Working accuracy | 0.05 mm |
| Repeatability | 0.05 mm |
| Motion and drive | |
| Drivers | Step Drivers |
| Spindle power | 3.0 kW water cooling spindle. (optional: 2.2KW,4.5KW) |
| Spindle speed | 0–24000RPM |

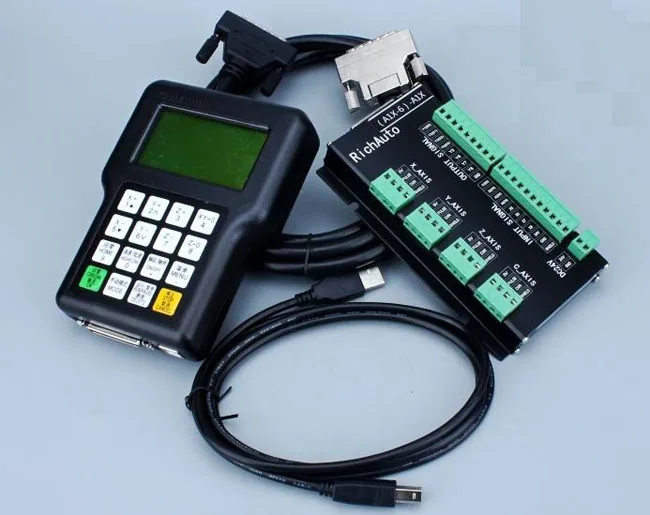

| Control and software | |
| Control system compatibility | March 3 control system Windows98 / 2000/xp |
| Command language | G cord*.u00*.mmg*plt |
| Operating environment | Temperature: 0–45 Relative humidity: 30 % ~ 75 % |
| Power, cooling and environment | |
| Power supply | AC220 V / 50 Hz |
Key Features
- 1300 x 2500 mm working area
- 200 mm Z-axis travel
- Table accepts 1400 x 3000 mm slabs
- Water circulation for tool cooling
- Mechanical clamp workholding
Typical Applications
- Marble and granite engraving
- Tombstones and memorial plaques
- Stone relief and 3D carving
- Countertop cut-outs and edge profiling

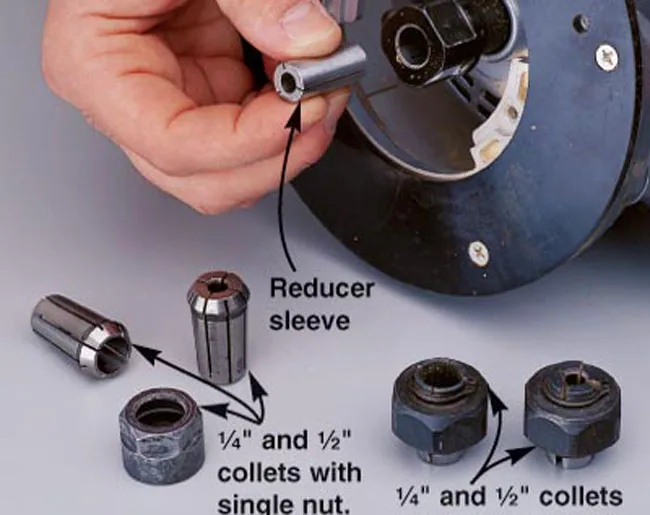

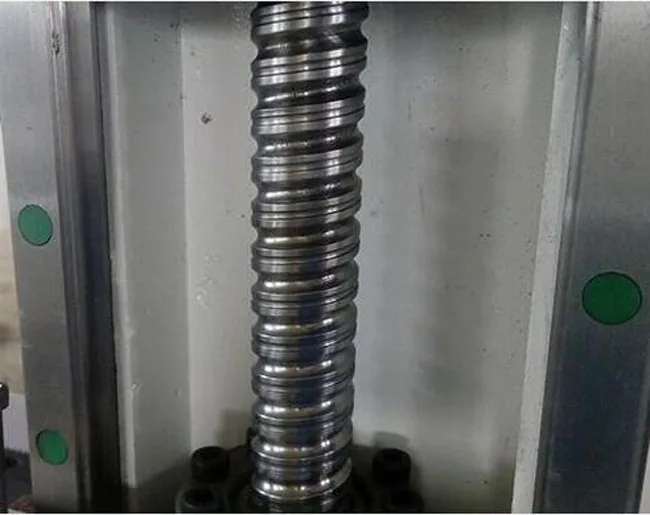

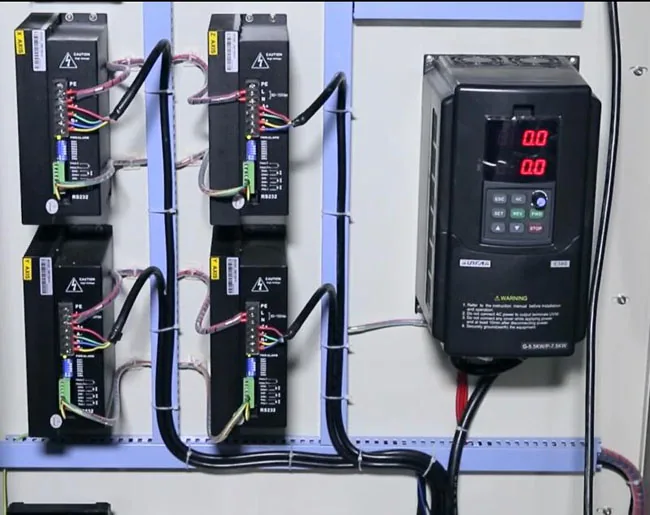

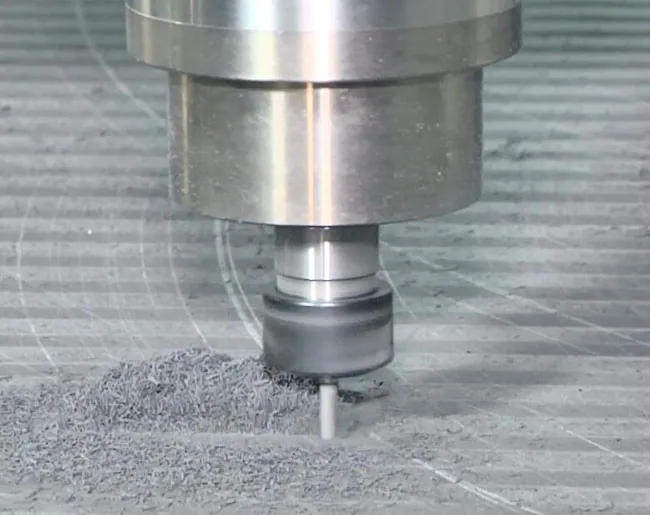

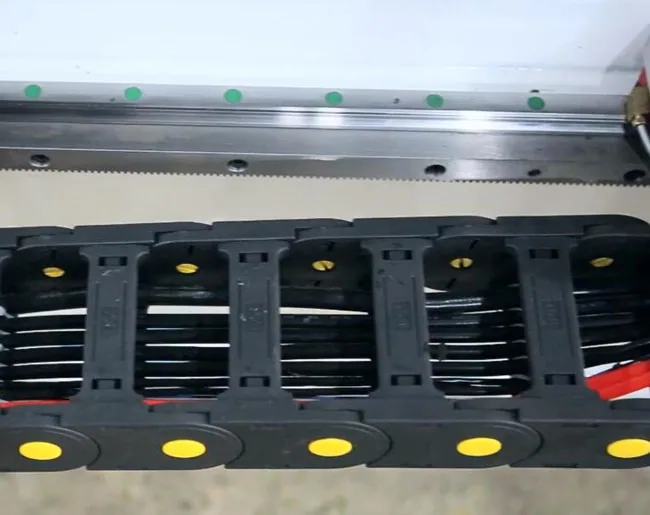

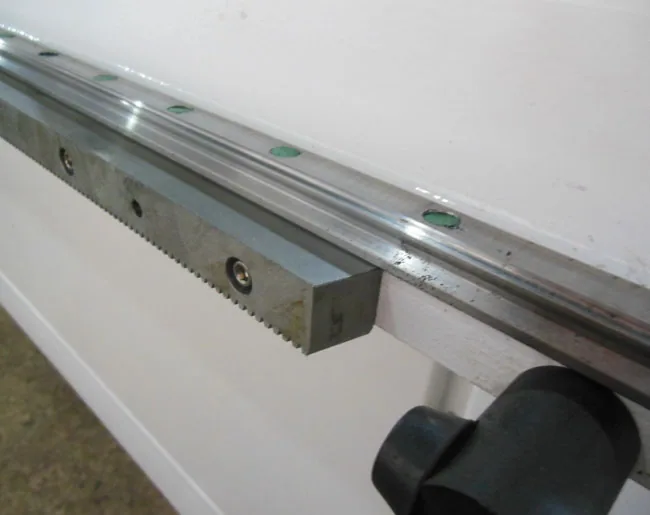

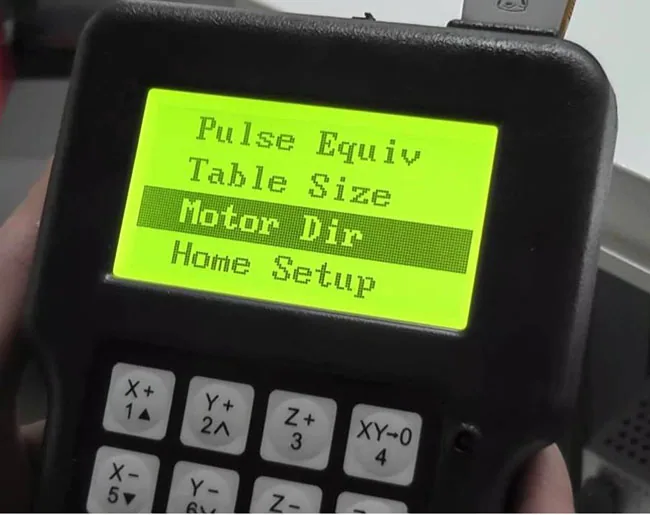

Machine Details

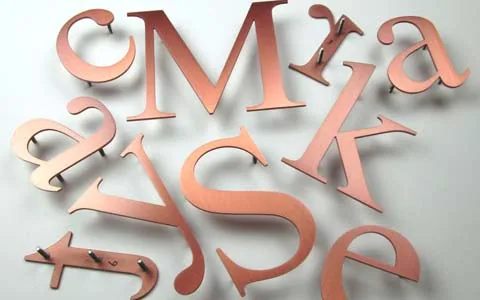

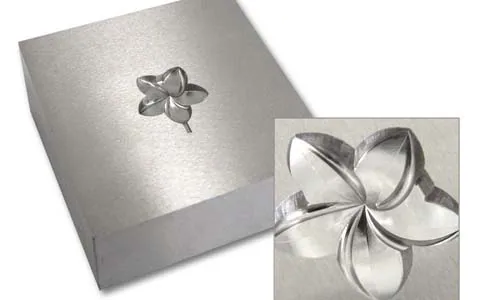

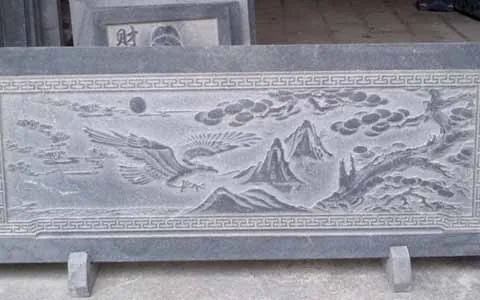

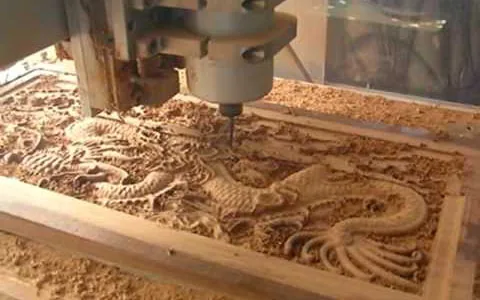

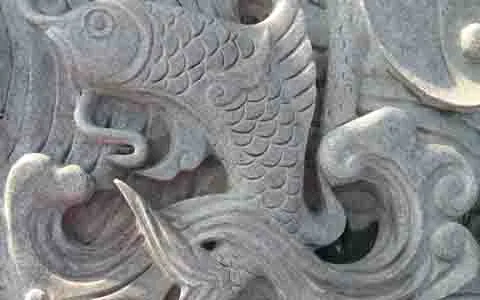

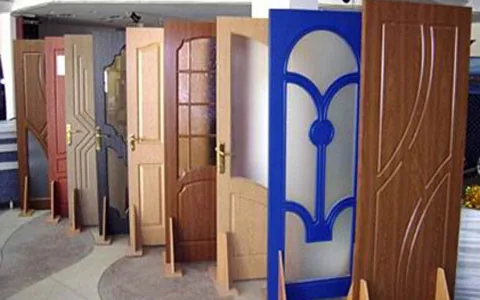

Sample Work

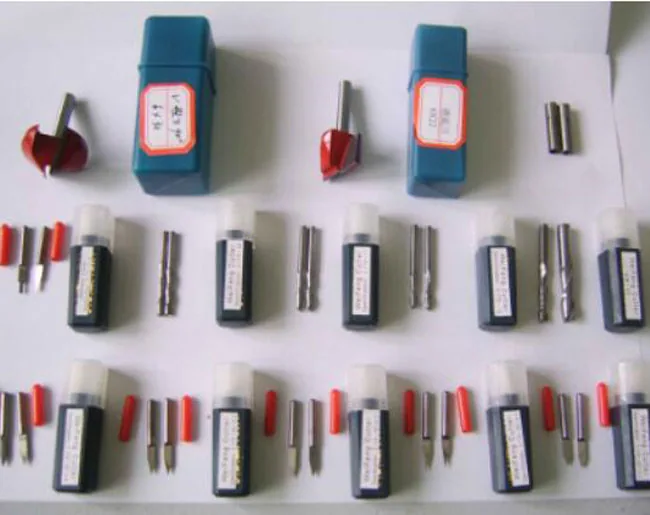

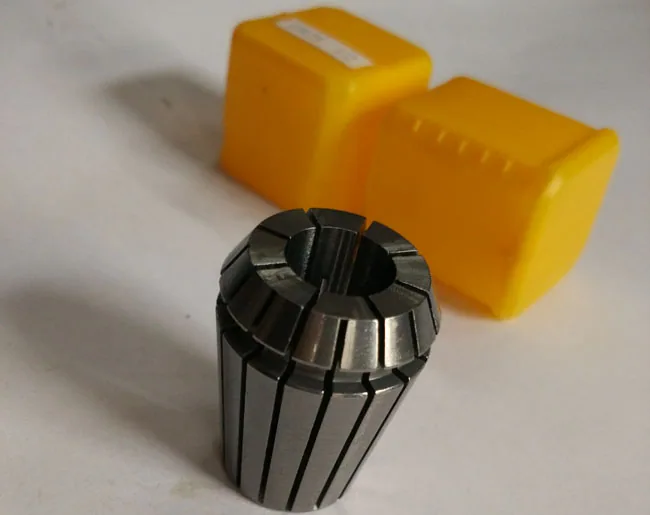

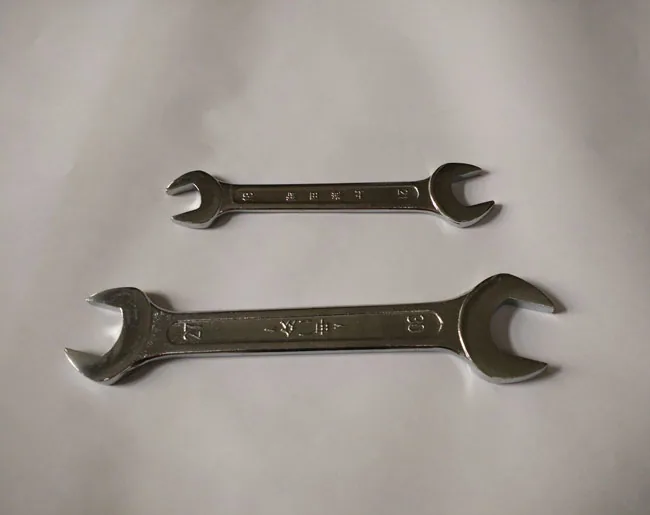

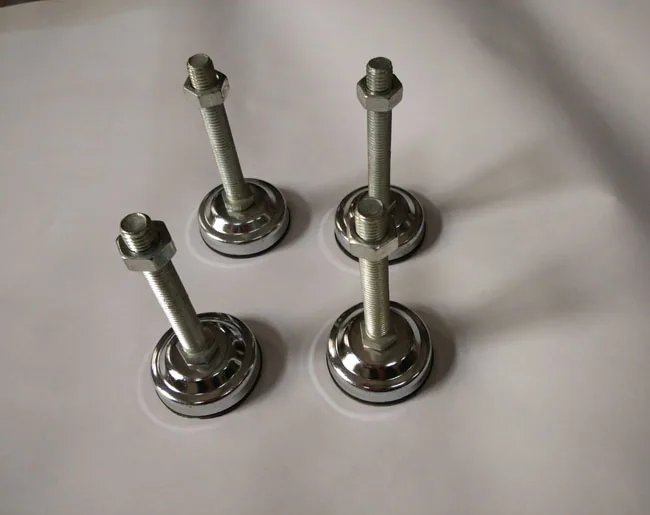

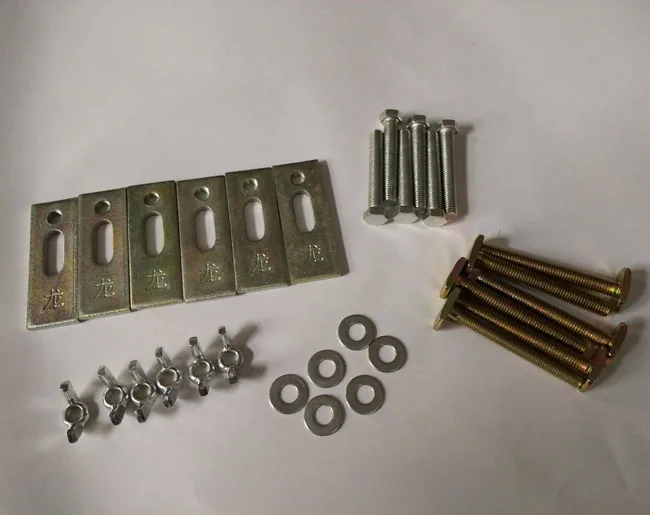

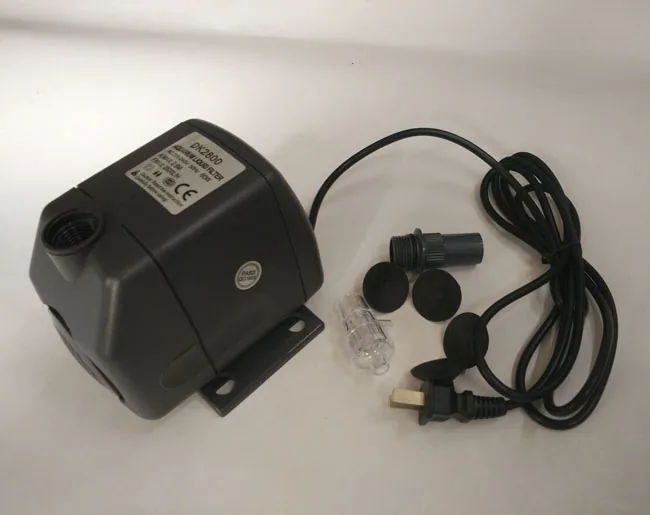

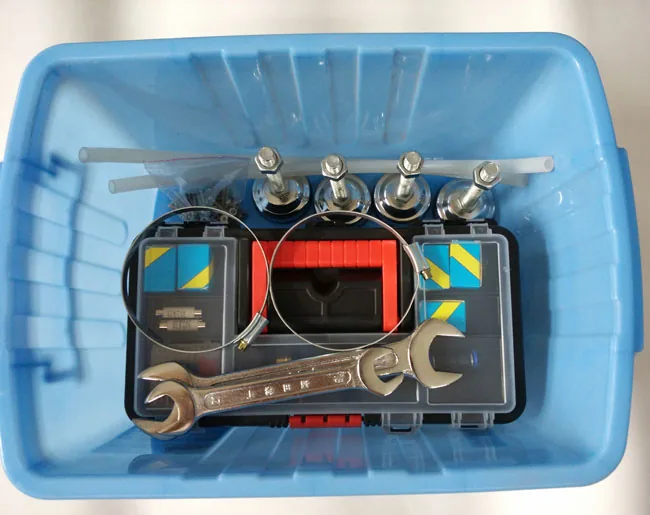

Standard Accessories
