CNC Woodworking Machine

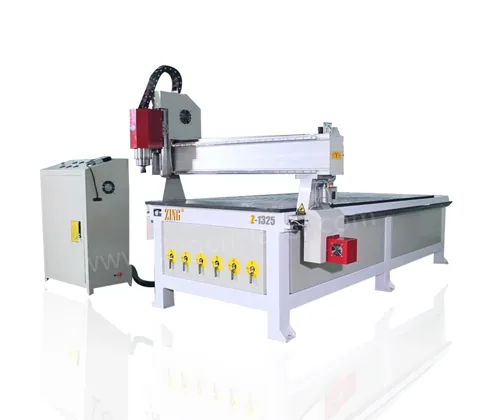

PL-1530 woodworking CNC router with a 1500 x 3000 mm working area, 4.5 kW spindle and rack-and-pinion transmission. Controlled by NC Studio software or a DSP handheld pendant.
Overview
The PL-1530 handles full 1500 x 3000 mm sheets, which is the standard board size for panel furniture and shopfitting work. A 4.5 kW spindle and rack-and-pinion transmission keep the gantry moving quickly across that span without losing position.

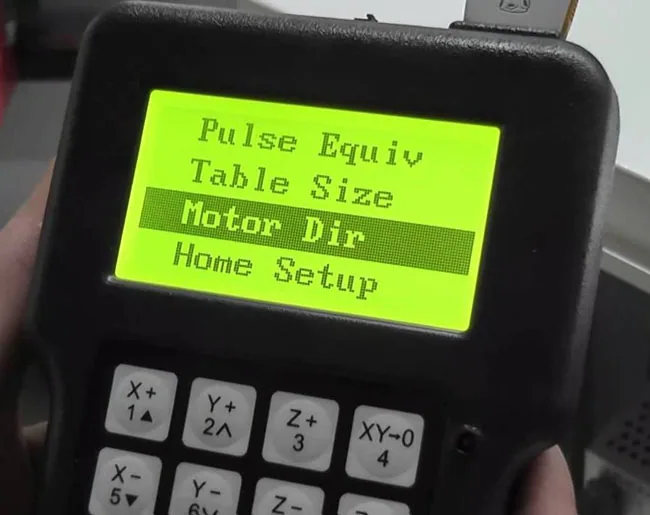

Control can be run from NC Studio on a PC or from a DSP handheld pendant, so the machine can be operated either from a desk or directly at the bed. Z travel of 150 mm covers most sheet thicknesses plus the tool length needed for profiling.
Technical Specifications
| Machine configuration | ||
| Model | PL-1325 | PL-1530 |
|---|---|---|
| Working area (X × Y) | 1300 × 2500 mm | 1500 × 3000 mm |
| Z-axis travel | 150 mm | |

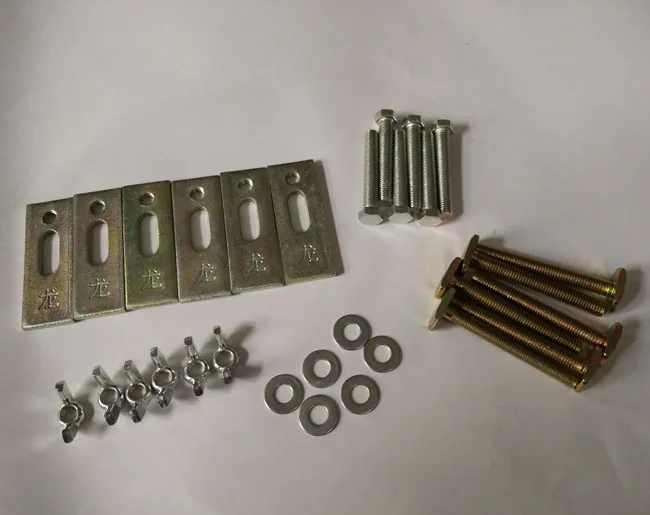

| Workholding | mechanical clamps | |
| Frame | Groove steel structure | |
| X/Y/Z structure | Three-axis square orbit, Gear-wheel driver | |
| Cutters | 10 pcs(include 3D cutter and milling bottom cutter) | |
| Cutting and engraving performance | ||
| Working accuracy | 0.05 mm | |
| Repeatability | 0.05 mm | |
| Motion and drive | ||
| Drivers | Step Drivers | |

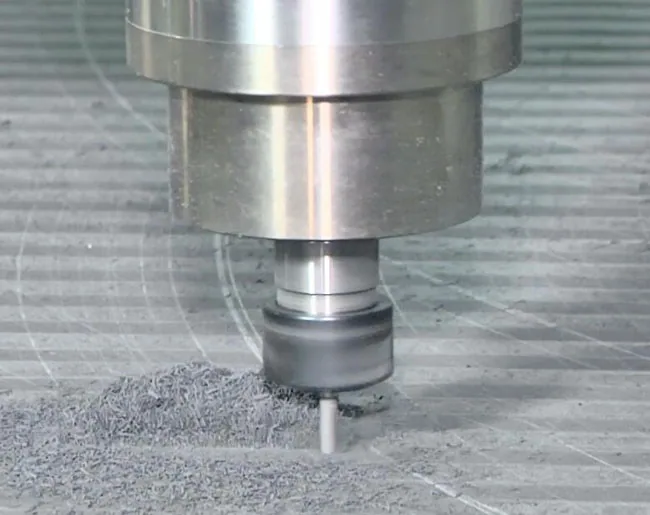

| Spindle power | 4.5 kW water cooling spindle. (optional: 3KW,2.2KW) | |
| Spindle speed | 0–24000RPM | |
| Control and software | ||
| Control system compatibility | March 3 control system (Windows98 / 2000/xp) | |
| Command language | G cord*.u00*.mmg*plt | |
| Operating environment | Temperature: 0–45 Relative humidity: 30 % ~ 75 % | |
| Software environment | Windows98 / 2000/xp | |
| Power, cooling and environment | ||
| Power supply | AC220 V / 50 Hz | |
Key Features
- 1500 x 3000 mm working area
- 150 mm Z-axis travel
- 4.5 kW spindle
- NC Studio or DSP pendant control
- Rack-and-pinion transmission
Typical Applications
- Panel furniture and cabinets
- Shop fitting and display units
- Wooden doors and frames
- Signs and PVC sheet work

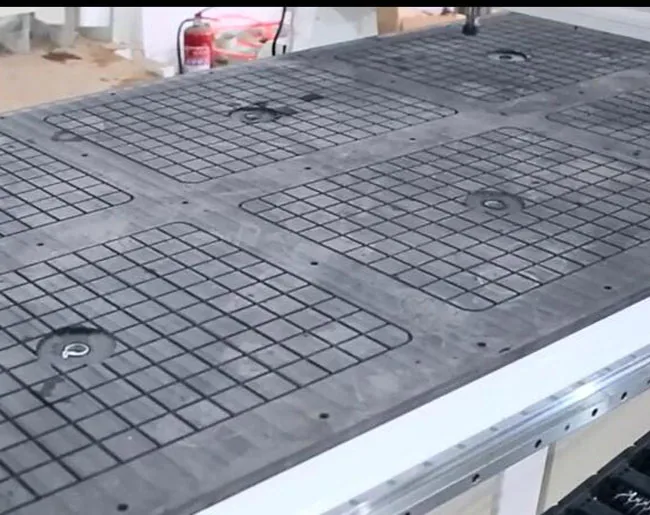

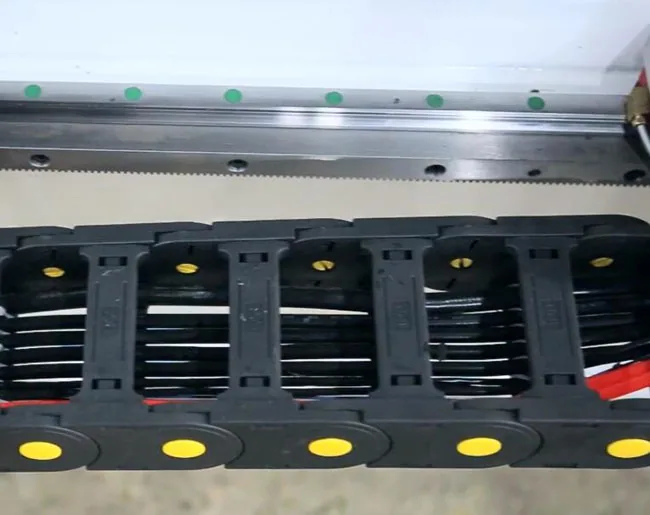

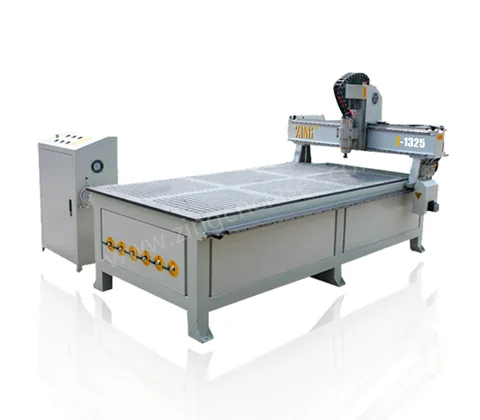

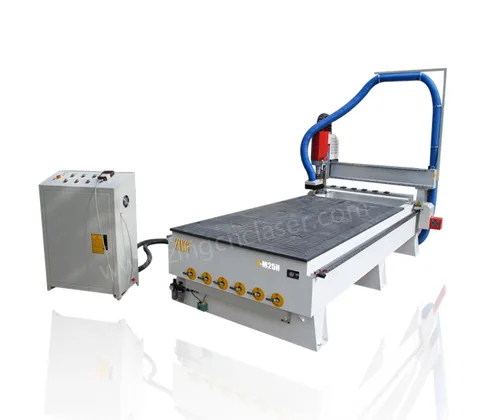

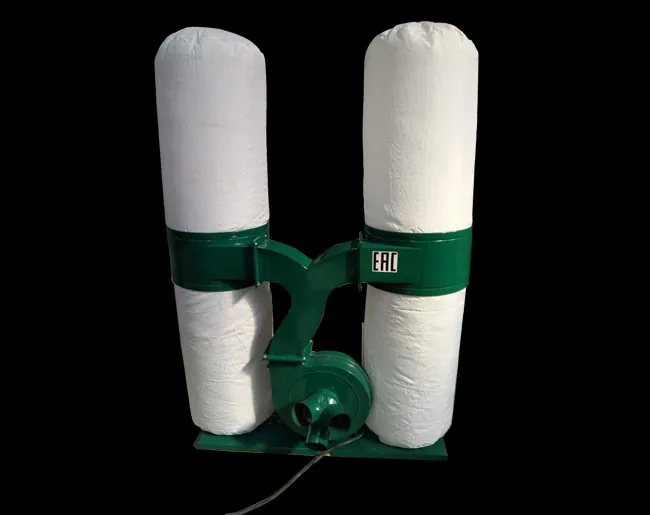

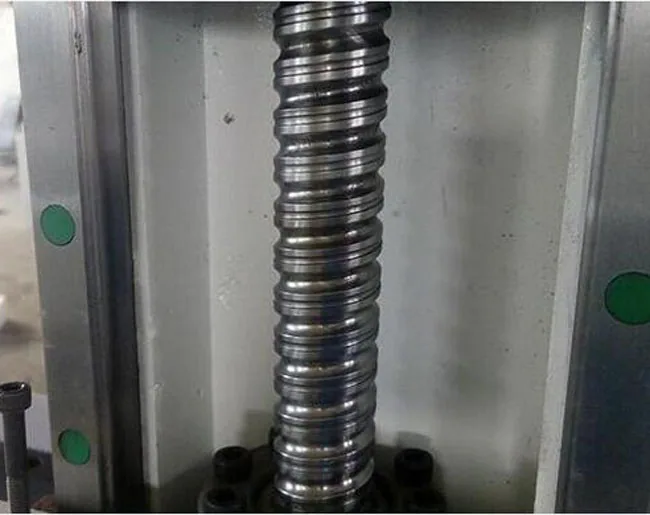

Machine Details

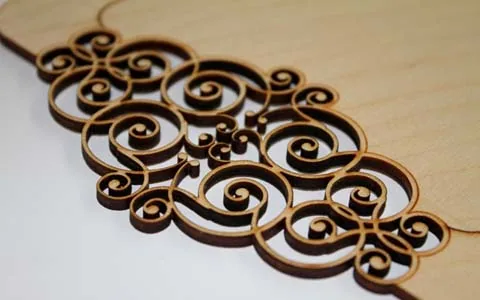

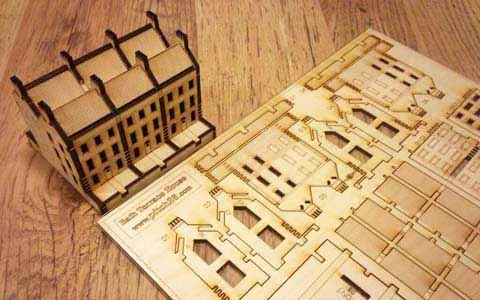

Sample Work

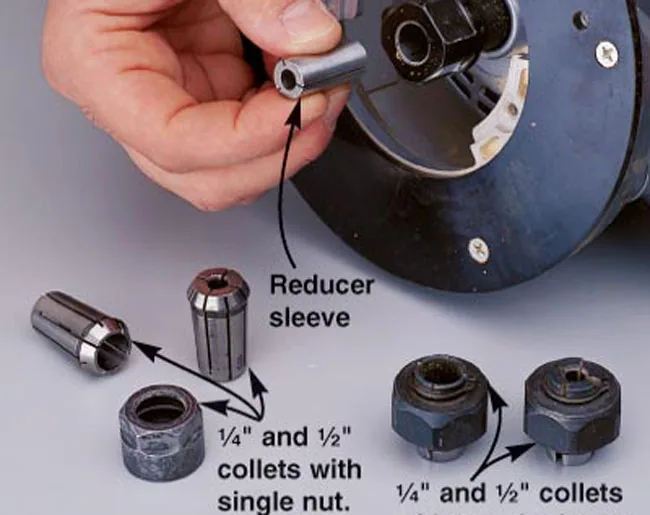

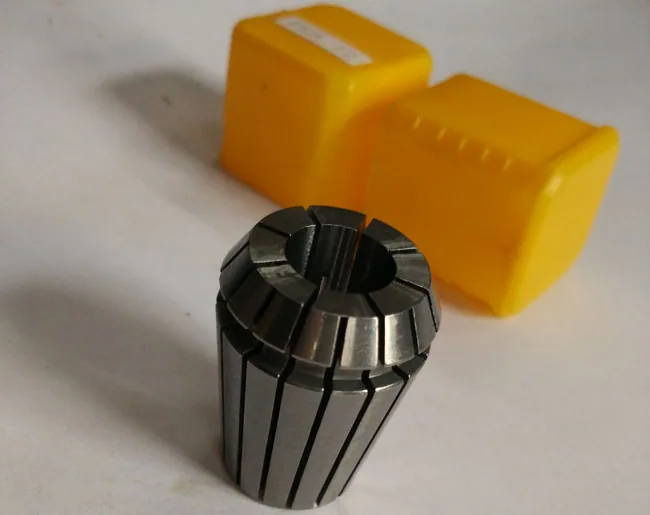

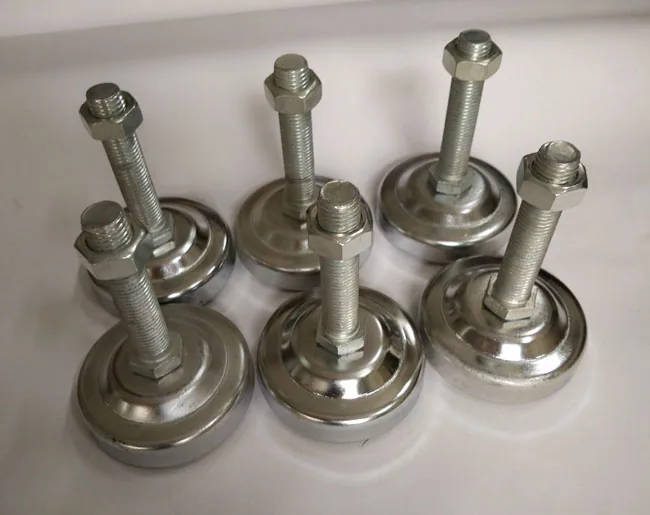

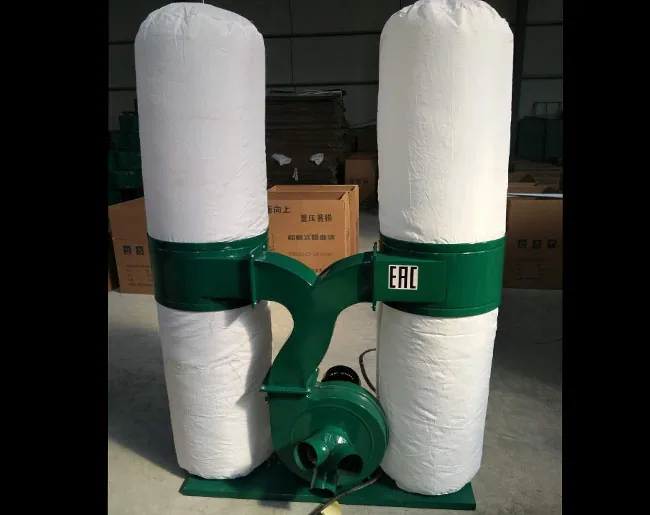

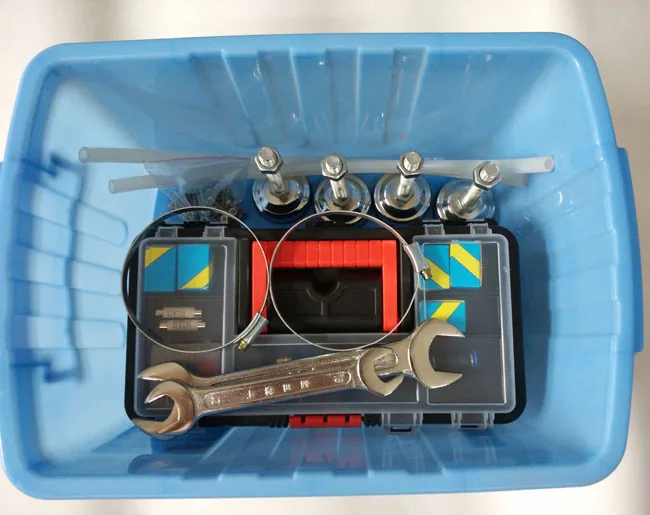

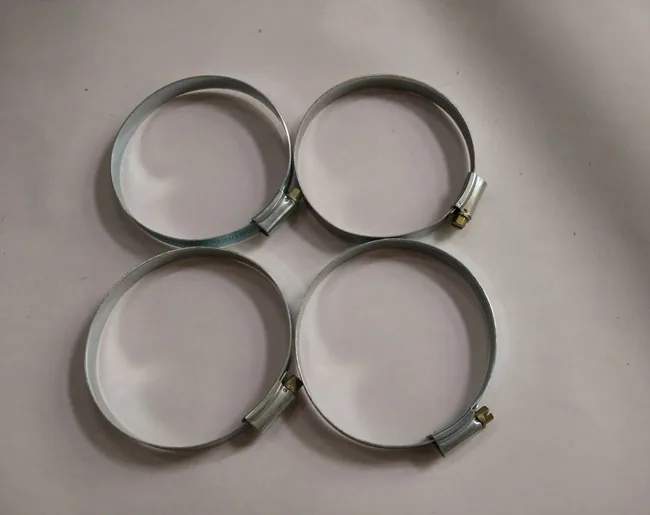

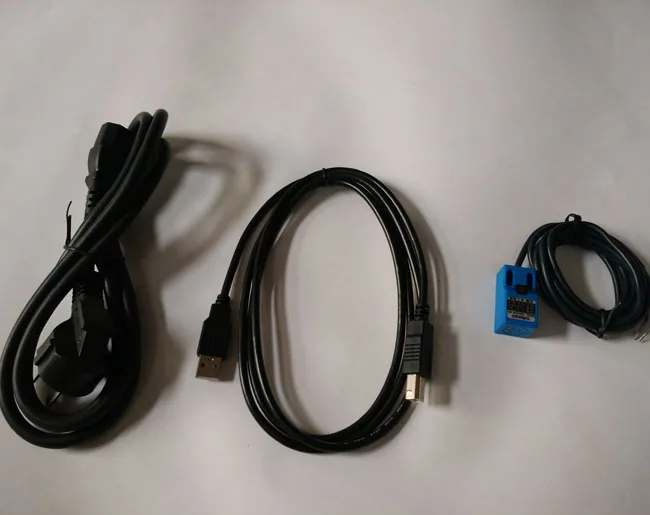

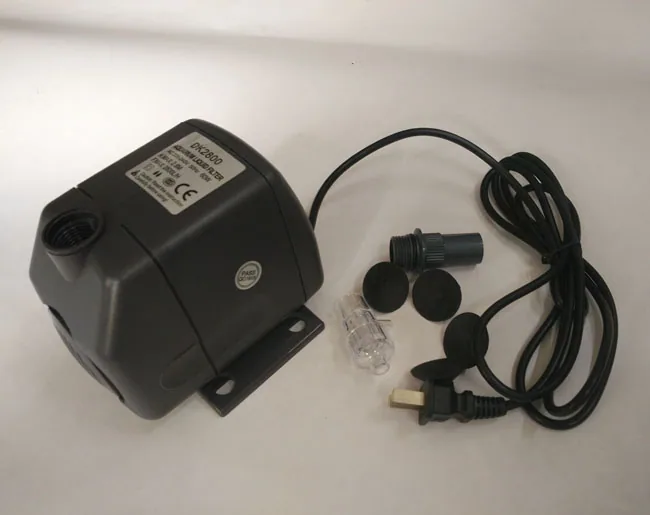

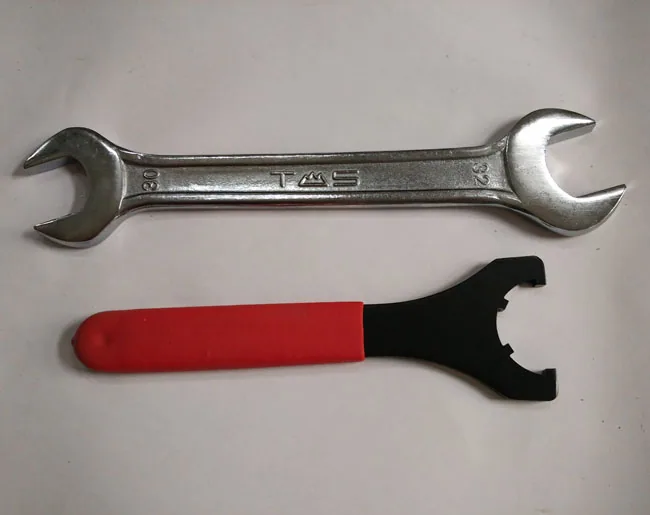

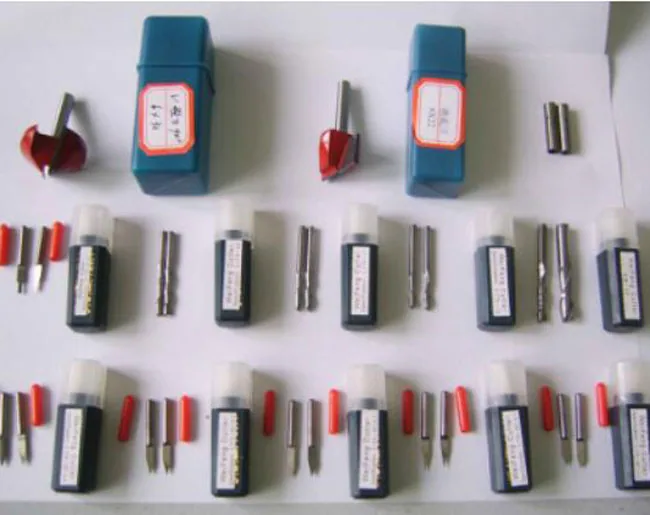

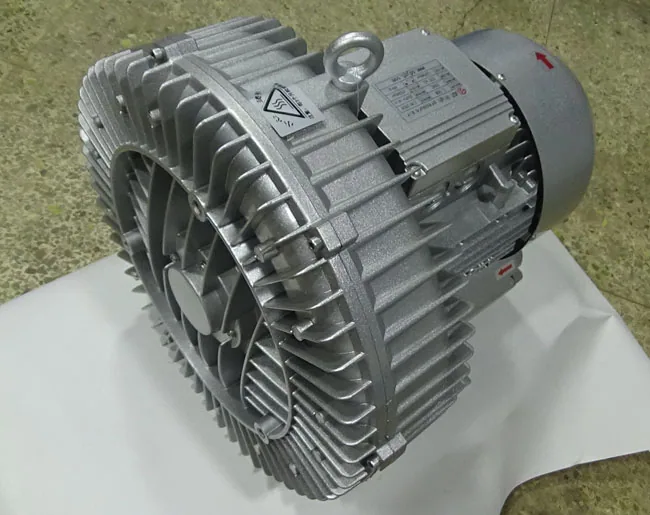

Standard Accessories
