CNC Metal Engraving Machine
Compact 600 x 600 mm metal engraving router with a 2.2 kW water-cooled spindle, high-precision square rails on all three axes and 0.05 mm working accuracy.
Overview
The PL-6060 is a compact metal engraving router with a 600 x 600 mm working area and 100 mm of Z travel — small enough for a workshop corner, rigid enough to hold 0.05 mm working accuracy in aluminium and mild steel.
A 2.2 kW water-cooled spindle runs on high-precision square rails on all three axes, and the 800 x 800 mm table leaves room for fixtures and clamps around the workpiece. It is the usual choice for engraving nameplates, moulds and small batch parts.
Technical Specifications
| Machine configuration | |
| Model | PL-6060 |
|---|---|
| Working area (X × Y) | 600 × 600 mm |
| Z-axis travel | 100 mm |

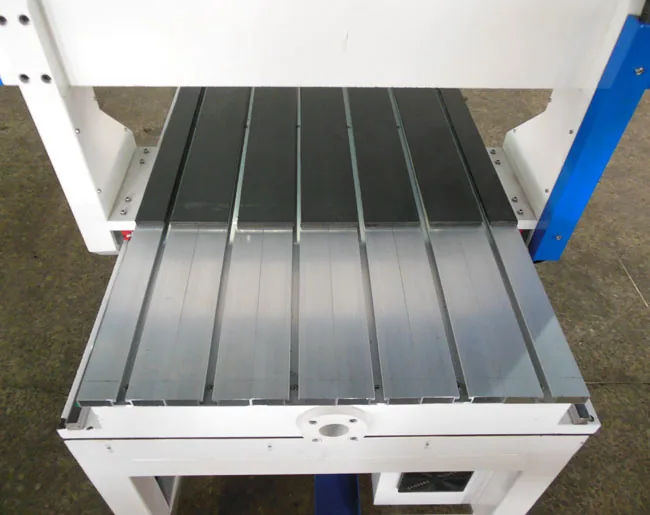

| Table size | 800 × 800 mm |
| Workholding | mechanical clamps |
| Frame | G roove steel structure |
| X/Y/Z structure | XYZ -axis square orbit, Ball-Screw driver |

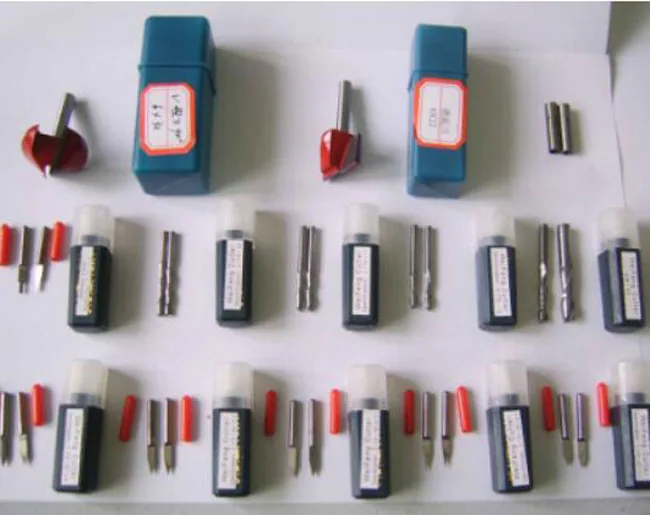

| Cutters | 10 pcs(include 3D cutter and milling bottom cutter) |
| Cutting and engraving performance | |
| Working accuracy | 0.05 mm |
| Repeatability | 0.05 mm |
| Motion and drive | |
| Drivers | Step Driver |
| Spindle power | 2. 2 kW water cooling spindle. (optional: 3 kW) |
| Spindle speed | 0–24000RPM |

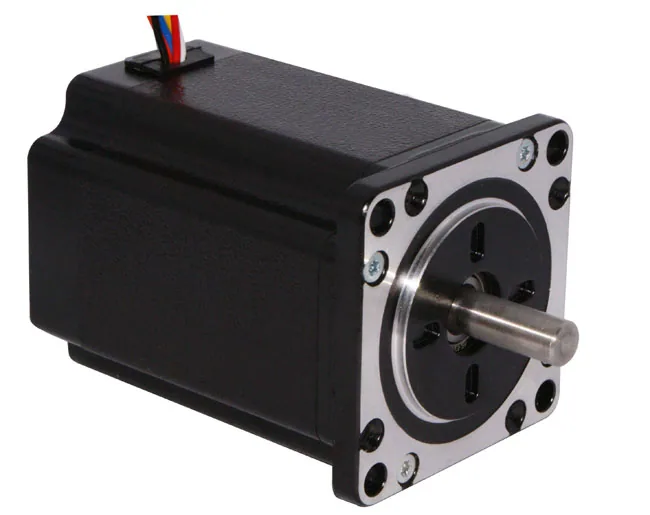

| Drive motors | Stepper system (optional: servo system) |
| Control and software | |
| Command language | G cord*.u00*.mmg*plt |

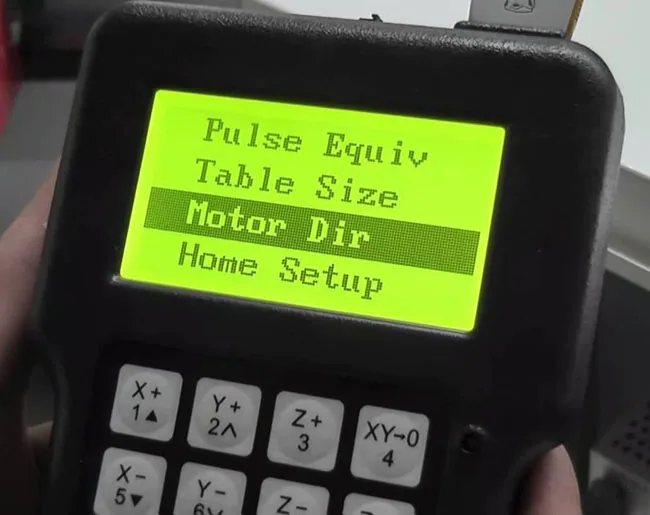

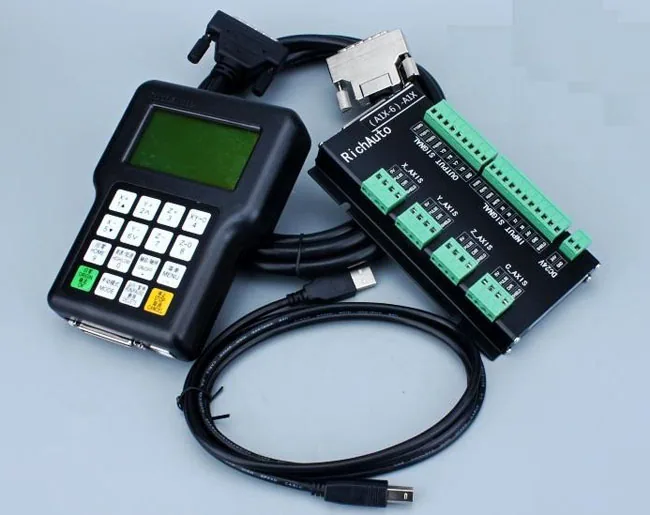

| Control system compatibility | Mach 3 control system (Optional DSP control system) |
| Operating environment | Temperature: 0–45 Relative humidity: 30 % ~ 75 % |
| Software environment | Windows98 / 2000/xp |
| Power, cooling and environment | |
| Power supply | AC220 V / 50 Hz |
Key Features
- 600 x 600 mm working area
- 100 mm Z-axis travel

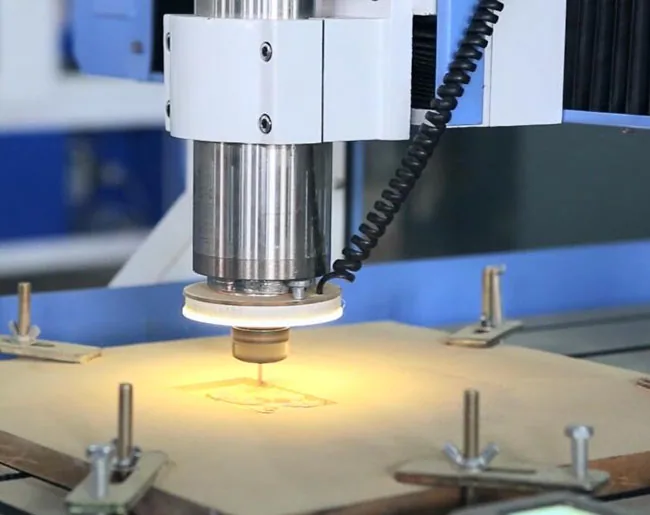

- 2.2 kW water-cooled spindle
- 0.05 mm working accuracy

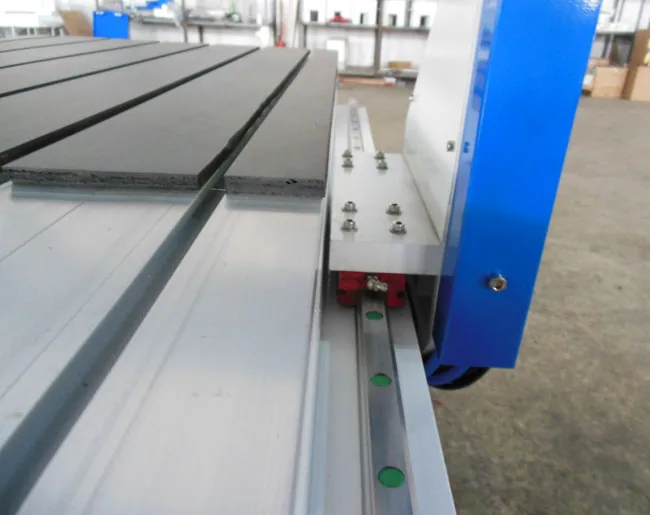

- High-precision square rails on all axes
Typical Applications
- Nameplates and signage
- Mould and die engraving
- Small batch metal parts
- Aluminium panel machining

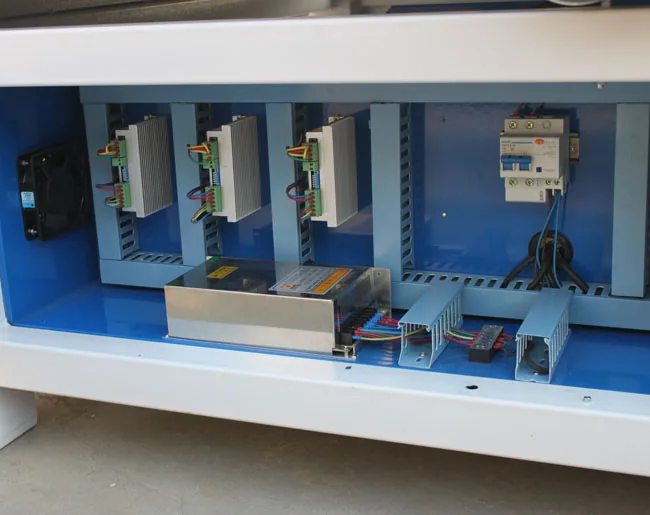

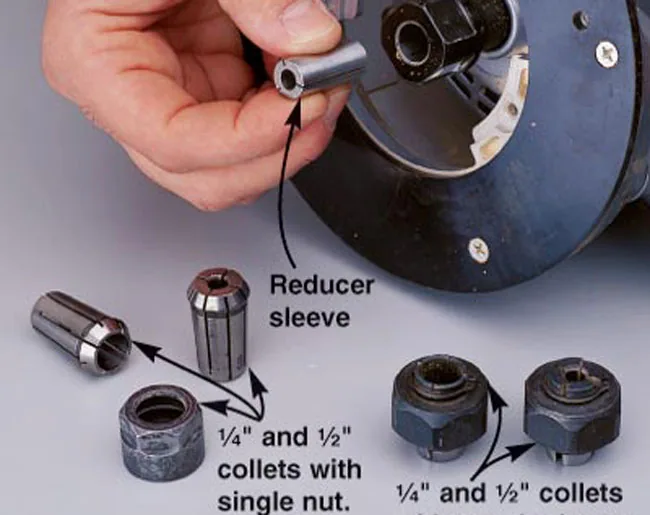

Machine Details

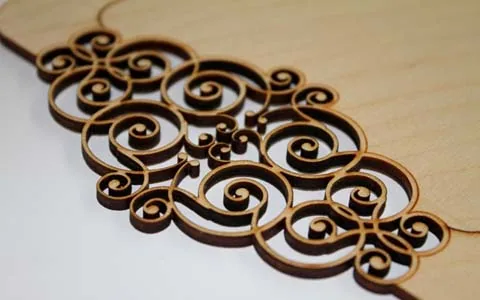

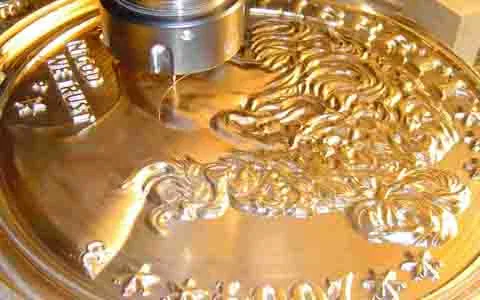

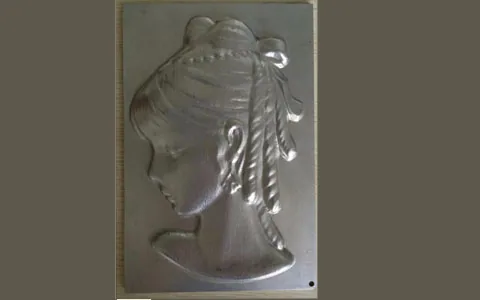

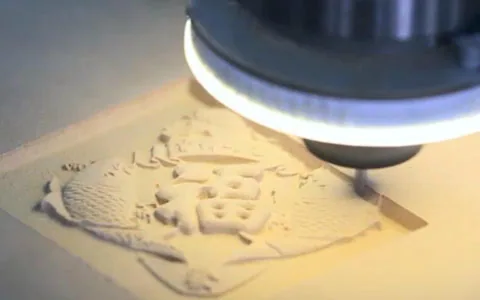

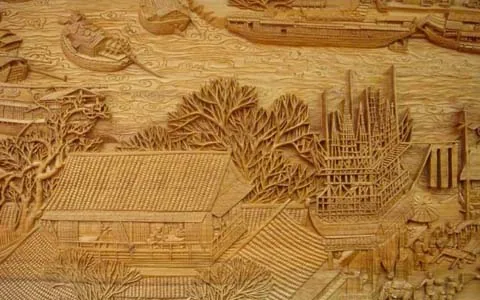

Sample Work

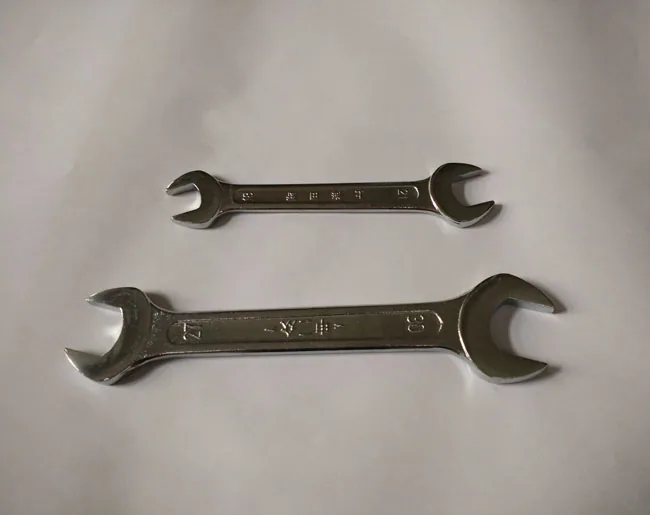

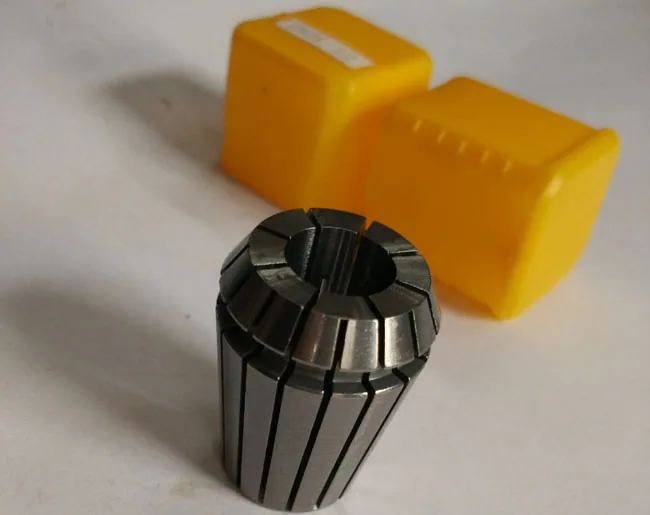

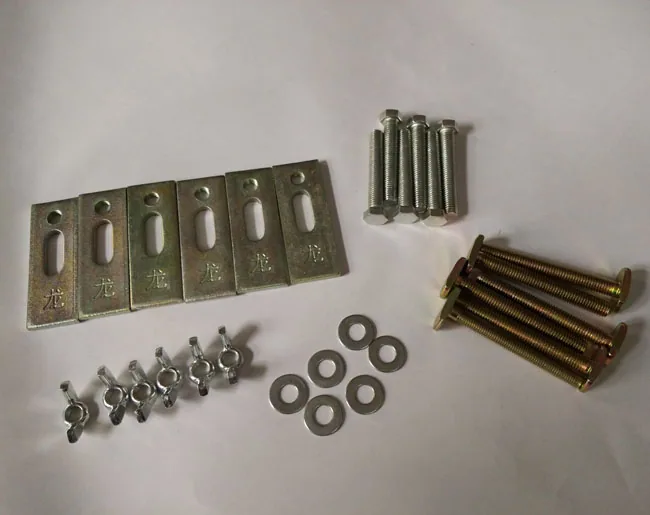

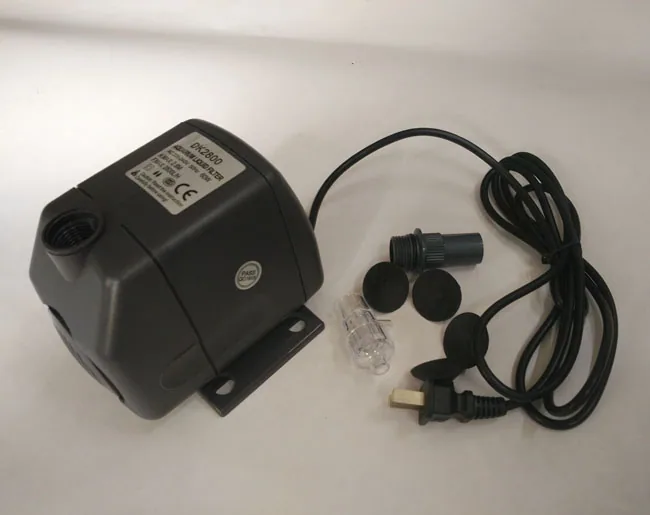

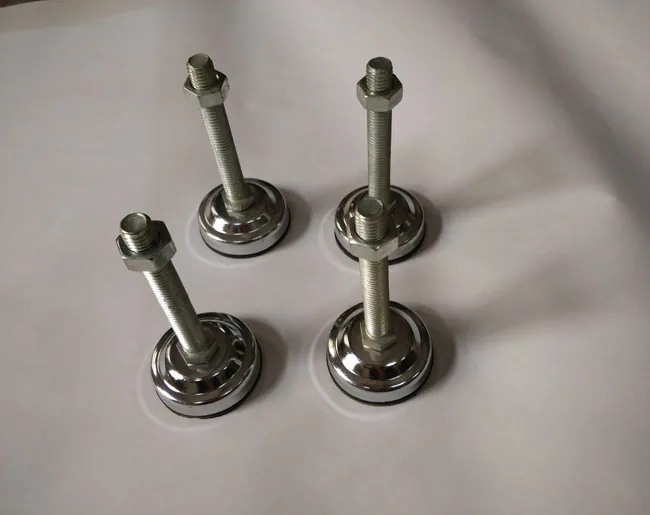

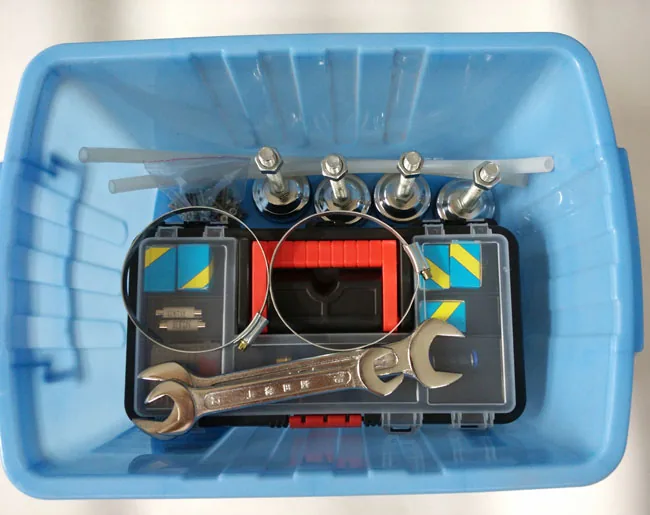

Standard Accessories
