Fiber Laser Engraver (Standard Model)
PL-F30S fiber laser marker with a Raycus or JPT source, 30W output and 0.02 mm minimum line width - suited to fine marking on stainless steel and industrial components.
Overview
The PL-F30S is the general-purpose fiber marking machine in the range. It uses a Raycus or JPT source at 30 W and produces a minimum line width of 0.02 mm, which is fine enough for small text, barcodes and detailed logos as well as larger industrial marks.
Pulse width sits between 130 and 150 ns, a setting that marks stainless steel and plated parts cleanly without cutting through thin coatings. The compact cabinet fits on a bench, and the 110 x 110 mm marking area covers most small-to-medium parts.
Technical Specifications
| Machine configuration | ||
| Model | PL-F30S | |
|---|---|---|
| Dimensions and weight | 62 × 44 × 40 cm, gross weight 25 kg. | |
| Laser source and optics | ||
| Laser power | 20 W | 30 W |
| Wavelength | 1064 nm +/- 4 nm | |
| Laser source | Raycus Fiber Laser or JPT laser | |
| Minimum line width | 0.02 mm | |
| Pulse width | 110–140 ns | 130–150 ns |
| Single pulse energy | 0.67 mJ | 0.75 mJ |
| Beam diameter | 7 ± 1 | |
| Frequency adjustment | 30–60 kHz | 40–60 kHz |
| Marking speed | ≤7000 mm/s | |
| Power control | 10–100 % | |
| Marking area | 110 × 110 mm / 150 × 150 mm / 175 × 175 mm / 200 × 200 mm | |
| Focus system | Double red light pointer assist for focal adjustment | |
| Cutting and engraving performance | ||
| Cutting thickness | 0–0.2 mm | 0–0.5 mm |
| Power, cooling and environment | ||
| Cooling | Air cooling | |
| Power supply | 220 V ± 10 % (110 V ± 10 %) / 50 Hz 60 Hz compatible | |
| Other specifications | ||
| M2 | <1.5 | <1. 6 |
Key Features
- Raycus or JPT 30 W source
- 1064 nm ± 4 nm wavelength
- 0.02 mm minimum line width
- 130–150 ns pulse width
- 110 x 110 mm marking area
Typical Applications
- Stainless steel marking
- Barcodes and data matrix codes
- Coated and plated components
- Small batch job marking

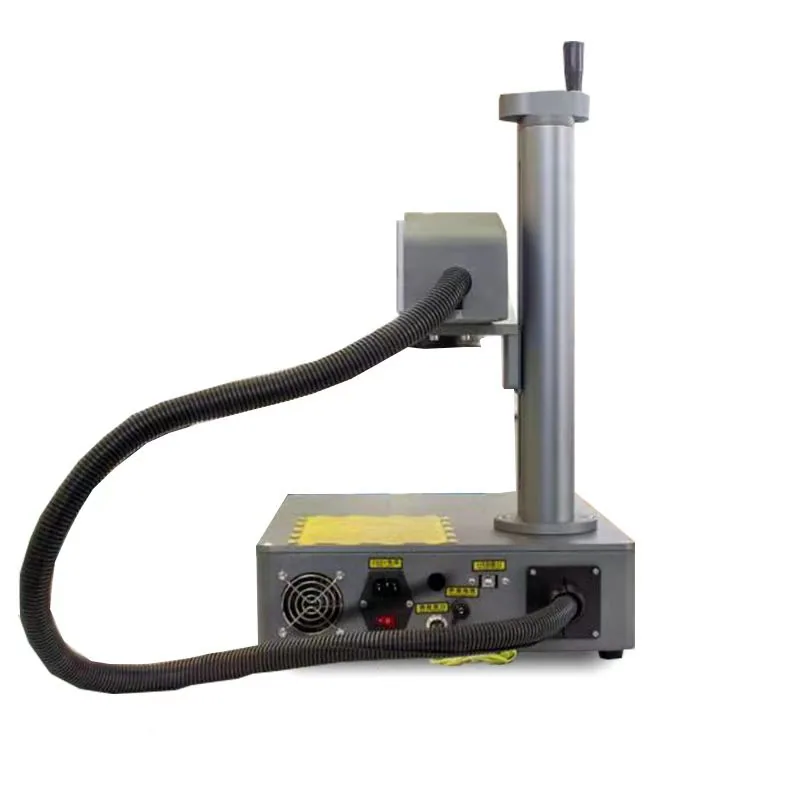

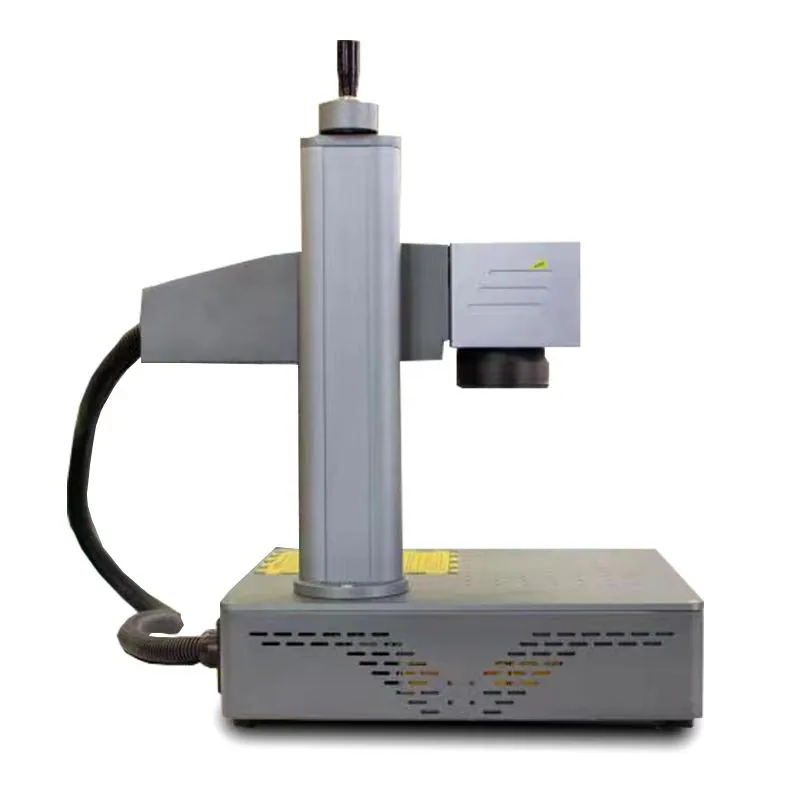

Machine Details
