Fiber Laser Marking and Engraving Machine
Raycus 30W fiber laser marking machine with 1064 nm wavelength and a 20-80 kHz modulation frequency range, built for permanent marking of metal and plastic parts.
Overview
The PL-F30 is a 30 W fiber laser marking machine built on a Raycus source with a 1064 nm wavelength and a 20–80 kHz modulation range. That combination gives permanent, high-contrast marks on metals and on many plastics without any consumable ink or masking.
The marking head is a high-speed galvanometer, and the worktable is aluminium alloy with an up-down platform so focus can be set to the part height. Industrial water cooling keeps the source stable during long marking runs.
Technical Specifications
| Machine configuration | ||
| Model | PL-F30 | |
|---|---|---|
| System specifications | Laser power supply | 0.5KW/AC220 V / 50 Hz |
| Manual table travel | Movements itinerary 285 mm (desktop type) | |
| Laser source and optics | ||
| Laser source | optical maser | WUHAN RAYCUS |
| Wavelength | 1064 nm | |
| Average output power | 30 W | |
| Optical isolation | bring | |
| Modulation frequency | 20 kHz~80 kHz | |
| Galvanometer | Maximum speed | 7000 mm/s |
| Resolution | 0.001 mm | |
| Optical output | Marking rang e | F = 160 mm, range 110 × 110 mm (with standard) |
| Minimum line width | 0.01 mm | |
| Cutting and engraving performance | ||
| Positioning accuracy | 0.003 mm | |
| Minimum character size | 0.2 mm | |
| Power, cooling and environment | ||
| Cooling | Cooling way | Air cooling |
| Environment | 0–35 ° C, 90 % or humidity | |
Key Features
- Raycus 30 W fiber source
- 1064 nm wavelength
- 20–80 kHz modulation range
- High-speed galvanometer head
- Industrial water cooling
Typical Applications
- Stainless steel and aluminium part marking

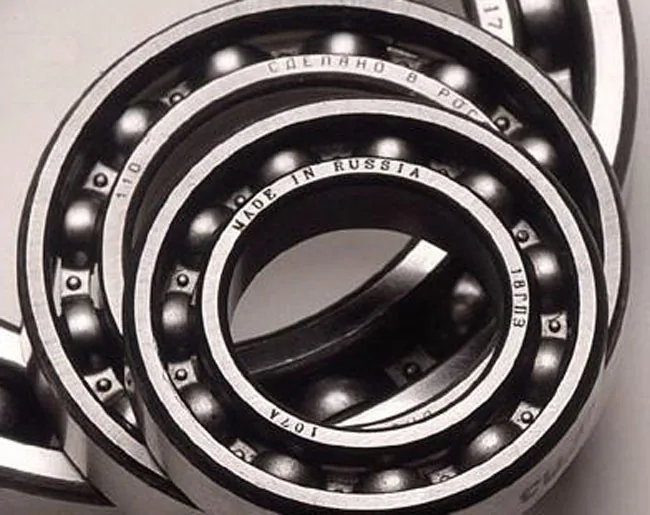

- Tools, bearings and fasteners
- QR codes and serial numbers
- Jewellery and small components
Machine Details

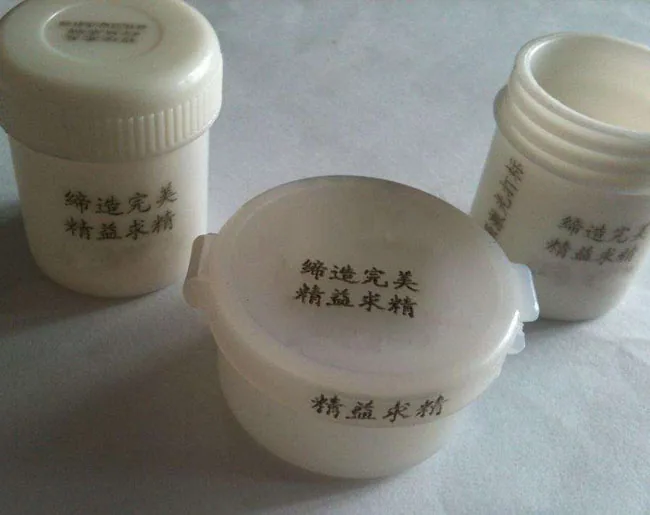

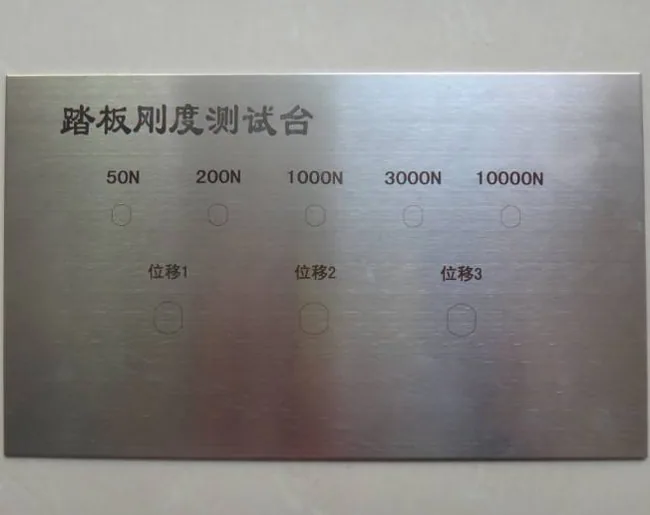

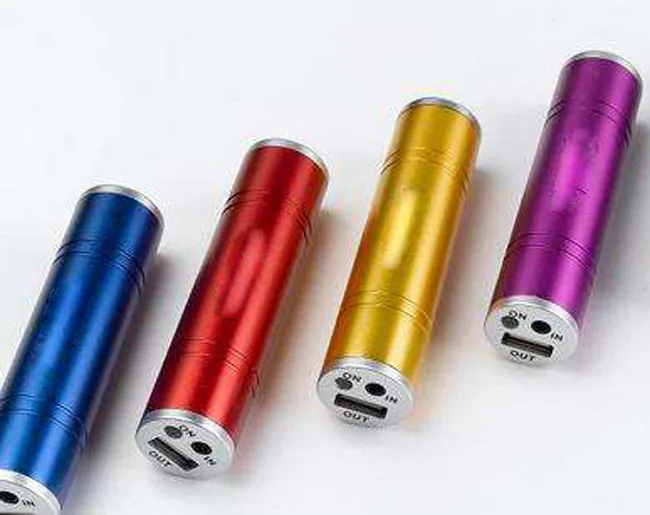

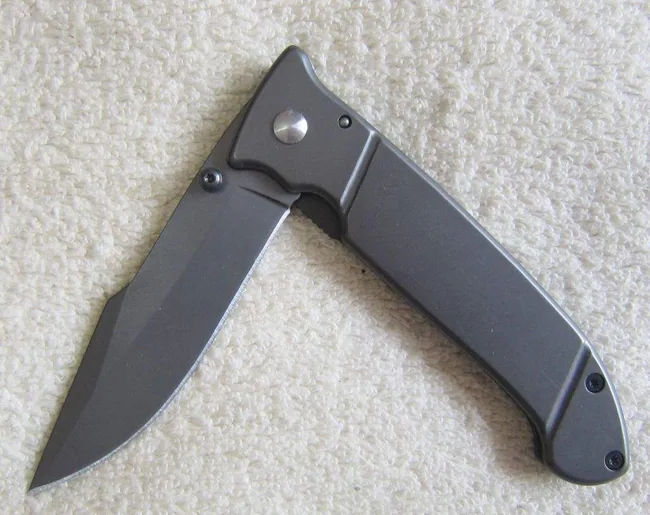

Sample Work
