1390 Fiber laser cutting machine
The PL-1390 fiber laser cutter pairs a Raycus laser source (500W-1kW) with a Raytools cutting head, HIWIN/PMI guide rails and Yaskawa servo drives. Working area 1300 x 900 mm, built for stainless steel, carbon steel and aluminium sheet.
Overview

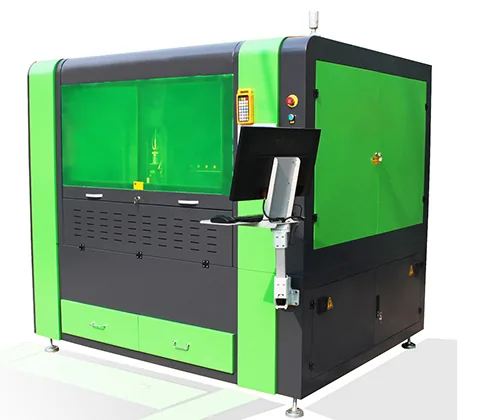

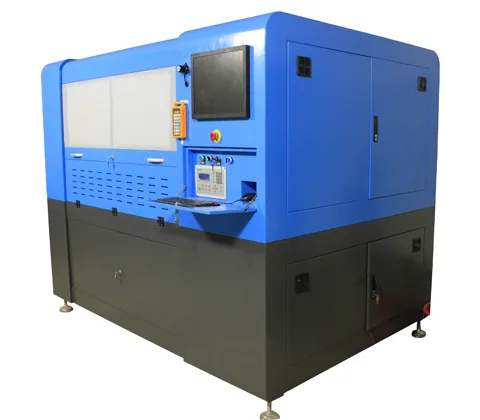

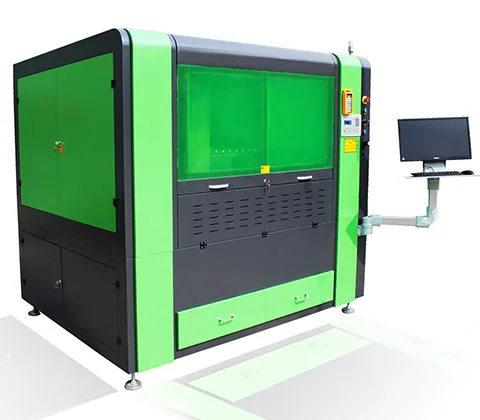

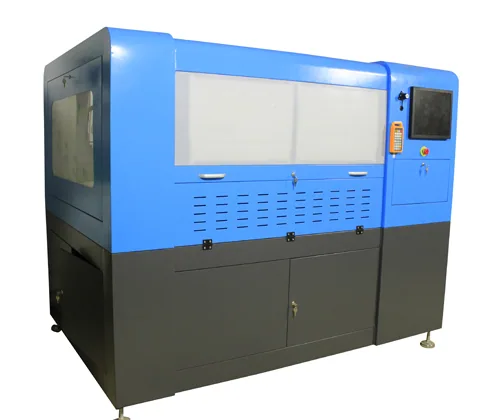

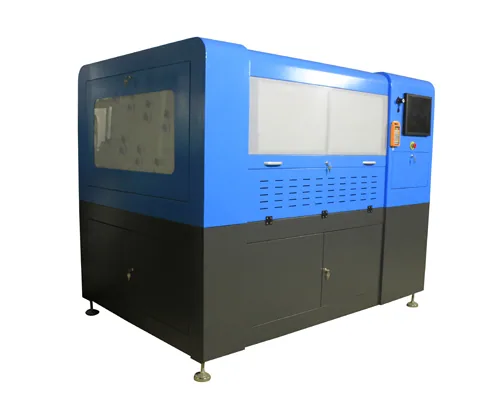

The PL-1390 is a 1300 x 900 mm fiber laser cutting machine built around a Raycus source rated at 500 W, 750 W or 1 kW. A Raytools cutting head and HIWIN/PMI linear guides hold the beam path steady, while Yaskawa servos — 750 W on X and Y, 400 W on Z — drive the gantry, with a ballscrew on the Y axis.
Because the beam travels through fiber rather than a CO2 tube, the PL-1390 cuts reflective metals such as stainless steel, aluminium and brass without the back-reflection problems that limit CO2 machines, and it does so with a tighter kerf and a lower cost per metre of cut.
Technical Specifications
| Machine configuration | |
| Machine body | New machine body with good structure and stability, annealing treatment,3 m length of parallelism can be achieved≤0.02 mm |
|---|---|
| Control and software | |
| Bundled software | Cypcut Laser Cutting Control System |
| Other specifications | |
| Machine Model | PL-1390 (1300 × 900 mm) |
| Laser | Raycus 500 W / 750 W / 1KW |

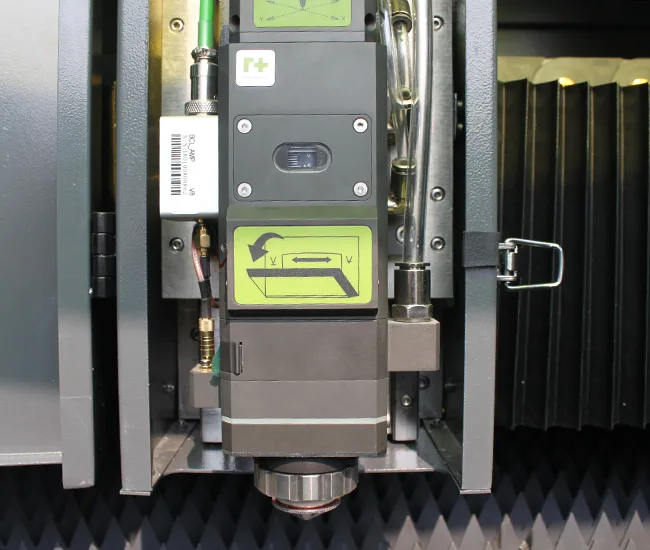

| Cutting Head | Raytools Swiss |
| Servo Motor and Drive | Y Axis ball screw transmission 750 W |
| ( Yaskawa– Japan) | X Axis 750 W, Z Axis 400 W |
| Guide Rail | HIWIN/PMI Taiwan |
| Water Chiller | Teyu– Dual Temperature Dual Control |
| CNC Control | Cypcut China |
| Worktable | Blade saw worktable |
| Power Requirement | 3 Phase AC 380 V 50 Hz |
| Machine gantry | Manganese steel beams are lighter in weight and higher in strength and can achieve greater acceleration in the same motor configuration. |
Key Features
- Raycus fiber source: 500 W / 750 W / 1 kW
- Raytools cutting head (Swiss)
- HIWIN / PMI linear guide rails
- Yaskawa servos with Y-axis ballscrew
- 1300 x 900 mm working area
Typical Applications
- Stainless steel sheet and brackets
- Aluminium panels and enclosures
- Carbon steel fabrication
- Brass and copper decorative parts

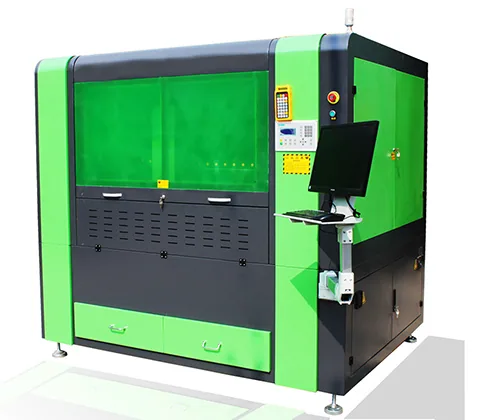

Machine Details
